Запчасти Case IH SINGLE (A-39[1]) - CYLINDER HEADER LIFT SLAVE 1.5 X 11.7 RAM TYPE CESSNA

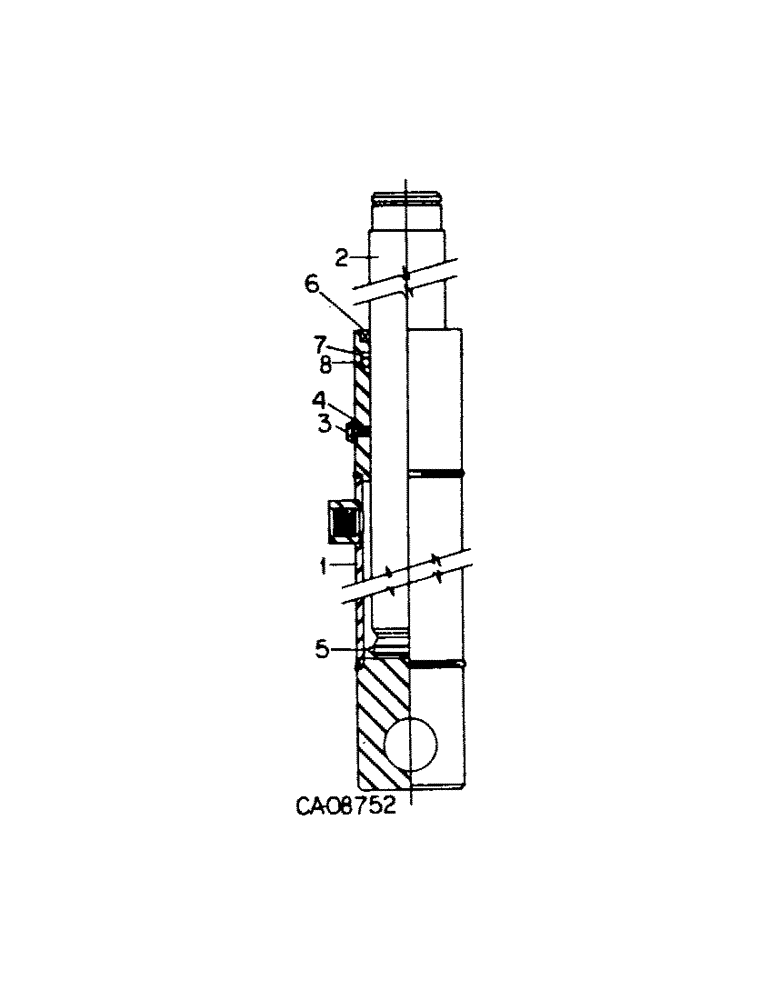

Схема запчастей Case IH SINGLE - (A-39[1]) - CYLINDER HEADER LIFT SLAVE 1.5 X 11.7 RAM TYPE CESSNA
8
5
6
2
3
4
1
8

Артикул

Название

Примечание

Количество

1

BODY ASSY, cylinder, order cylinder assy (NSS)

1шт.

2

825535C1

ROD

piston

1шт.

3

825536C1

FLANGE BOLT,Hex, #10 - 24 x 15/64"

SCREW, bleeder

1шт.

4

O-RING, 3/16 x 1-1/2, part of kit (NSS)

1шт.

5

WASHER, back-up, part of kit (NSS)

1шт.

6

WASHER, Dyna-Seal, part of kit (NSS)

1шт.

7

SEAL, wiper, part of kit (NSS)

1шт.

8

RING, lock, part of kit (NSS)

1шт.

823375C3

SEAL KIT

seal repair, consists of ref nos 4 thru 8

1шт.

Выбрано товаров: 9
