(A-38) - SINGLE OVERSHOT AUGER HEADER, CYLINDER, HEADER LIFT, 1.5 X

Запчасти Case IH SINGLE (A-38) - SINGLE OVERSHOT AUGER HEADER, CYLINDER, HEADER LIFT, 1.5 X

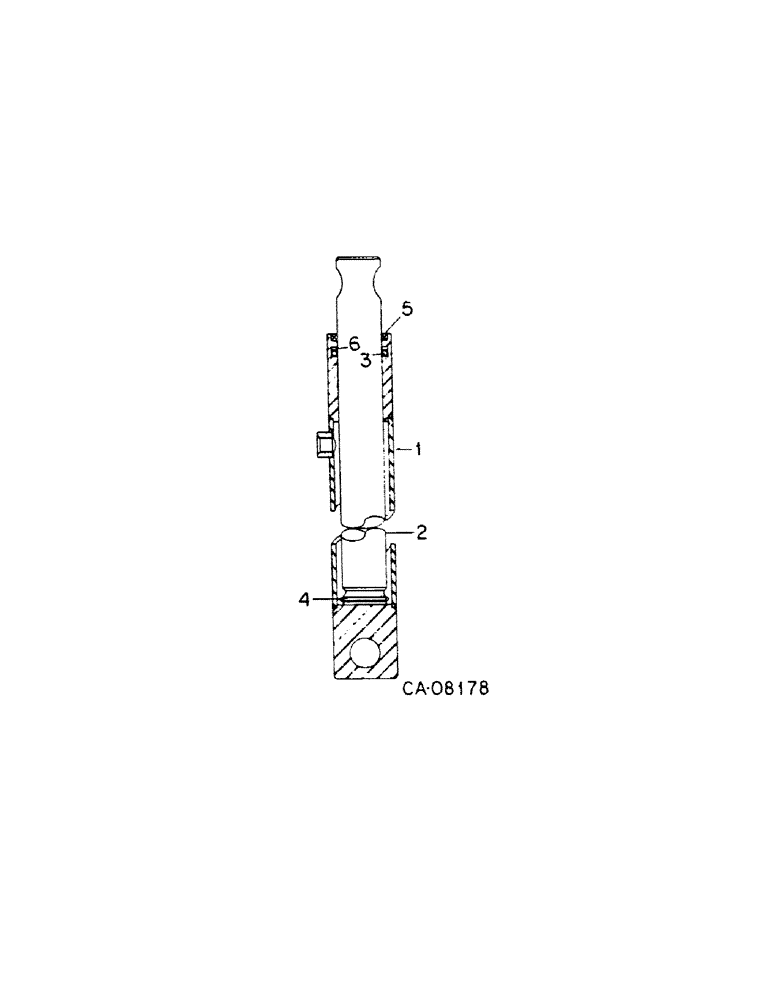

Схема запчастей Case IH SINGLE - (A-38) - SINGLE OVERSHOT AUGER HEADER, CYLINDER, HEADER LIFT, 1.5 X
2
3
5
4
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

599221R92

CYLINDER

ASSY, header lift hyd

2шт.

1

599987R1

BODY ASSY, cylinder

1шт.

2

598988R1

CABLE

ROD, piston

1шт.

3

O-RING, 1-1/2 x 1-7/8 (NSS)

1шт.

4

RING, rod lock (NSS)

1шт.

5

WIPER, piston rod (NSS)

1шт.

6

WASHER, o-ring back-up (NSS)

1шт.

823375C3

SEAL KIT

o-ring and seal service, consists of ref nos 3 thru 6 plus Dyna-Seal washer (NSS)

1шт.

123001C92

CYLINDER

ASSY, header lift

2шт.
