Запчасти Case IH SINGLE (A-38[1]) - CYLINDER HEADER LIFT 1.5 X 11.7 RAM TYPE IH

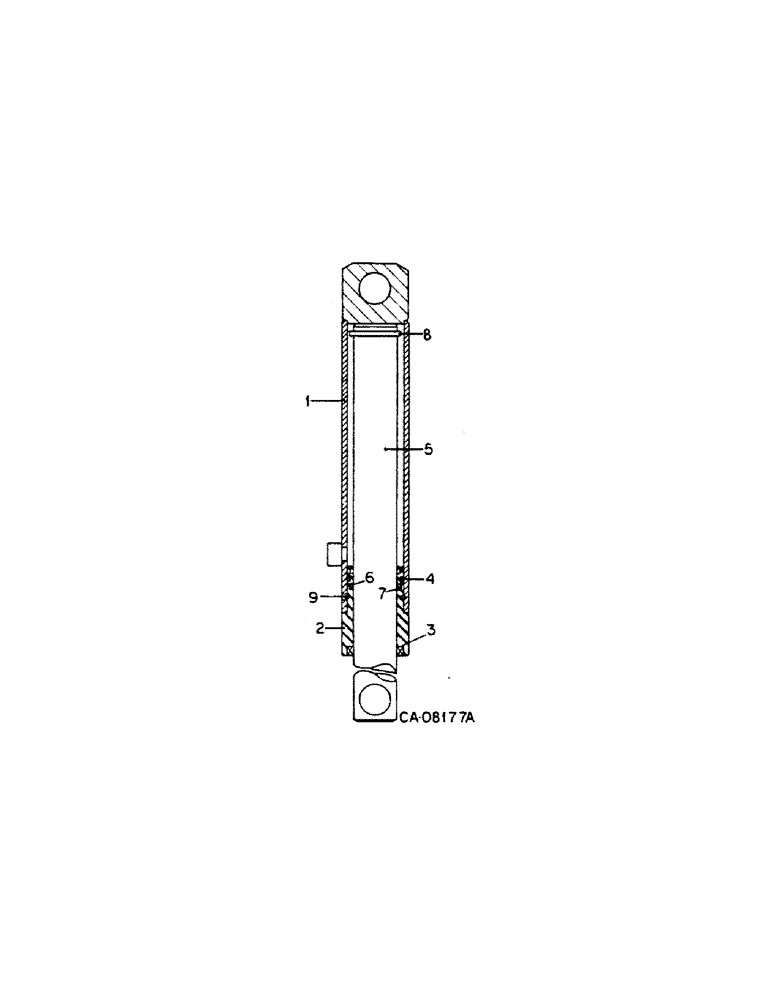

Схема запчастей Case IH SINGLE - (A-38[1]) - CYLINDER HEADER LIFT 1.5 X 11.7 RAM TYPE IH
1
9
2
6
5
8
7
4
3

Артикул

Название

Примечание

Количество

1

123002C1

BODY

ASSY, cylinder

1шт.

2

57018C2

JACK HEAD

HEAD, front

1шт.

3

WIPER, rod (NSS), replaces seal (NSS) & seal retainer (NSS)

1шт.

4

O-RING, 1-3/4 x 1-15/16 class 6 (NSS)

1шт.

5

123004C1

ROD

piston

1шт.

6

O-RING, 1-1/2 x 1-3/4 class 6 (NSS)

1шт.

7

WASHER, o-ring back-up (NSS)

1шт.

8

RING, retaining snap (NSS)

1шт.

9

RING, retaining (NSS)

1шт.

389270R92

SEAL KIT

KIT, o-ring and seal service, consists of ref nos 3, 4, 6, 7, 8, 9 plus felt seal (NSS) & seal retainer (NSS)

1шт.

Выбрано товаров: 10
