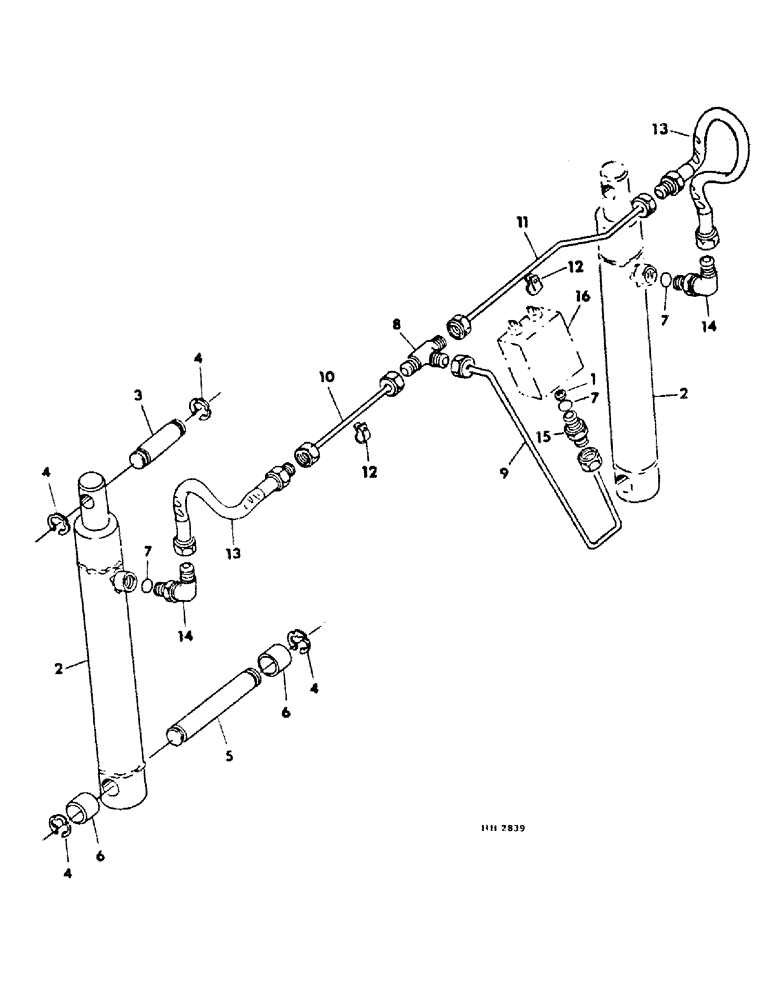

Запчасти Case IH SINGLE (A-34) - SINGLE OVERSHOT AUGER HEADER, HEADER HYDRAULIC LIFT SYSTEM

1

824544C1

PLATE

VALVE, orifice, Cessna, with .1093 dia hole or

1шт.

1

596300R1

PLATE

VALVE, orifice, Cessna, with .0935 dia hole

1шт.

1

1261081C1

VALVE

orifice, Victor

1шт.

2

599221R92

CYLINDER

ASSY, header lift, Cessna, use only as a pair or

2шт.

2

123001C92

CYLINDER

ASSY, header lift, I.H. use only as a pair, for service parts refer to cylinder-header lift

1шт.

3

828150C1

PIN,25.4mm OD x 71.88mm L

cylinder upper

2шт.

4

827695C1

CIRCLIP

RING, pin retaining

8шт.

5

828151C1

PIN

cylinder lower

2шт.

614451R1

WASHER

1.031 x 1.750 x .105

4шт.

6

557056R1

SPACER,1" Pipe x 1"

cylinder lower

4шт.

7

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

3шт.

8

9402981

SHAFT

37 deg flared 3 way

1шт.

9

828344C2

TUBE

, Serial Range: valve-elbow

1шт.

10

828756C1

TUBE,0.375" OD, 11" Length

lift cylinder LH

1шт.

11

828343C1

TUBE,0.375" OD, 46, 1.5" Length

lift cylinder RH

1шт.

12

595432R1

CLAMP

tube

2шт.

850677C1

SCREW,Hex Wash Hd, 5/16"-18 x 1/2"

5/16-18 x 1/2 taptite

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

13

611937R91

HOSE ASSY.

HOSE, 15.6 in header lift cylinder

2шт.

14

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

adj str thd 90 deg

2шт.

15

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

UNION, 9/16-18 short swivel

1шт.

16

VALVE ASSY, hydraulic control for service parts refer to chassis parts catalog

1шт.
