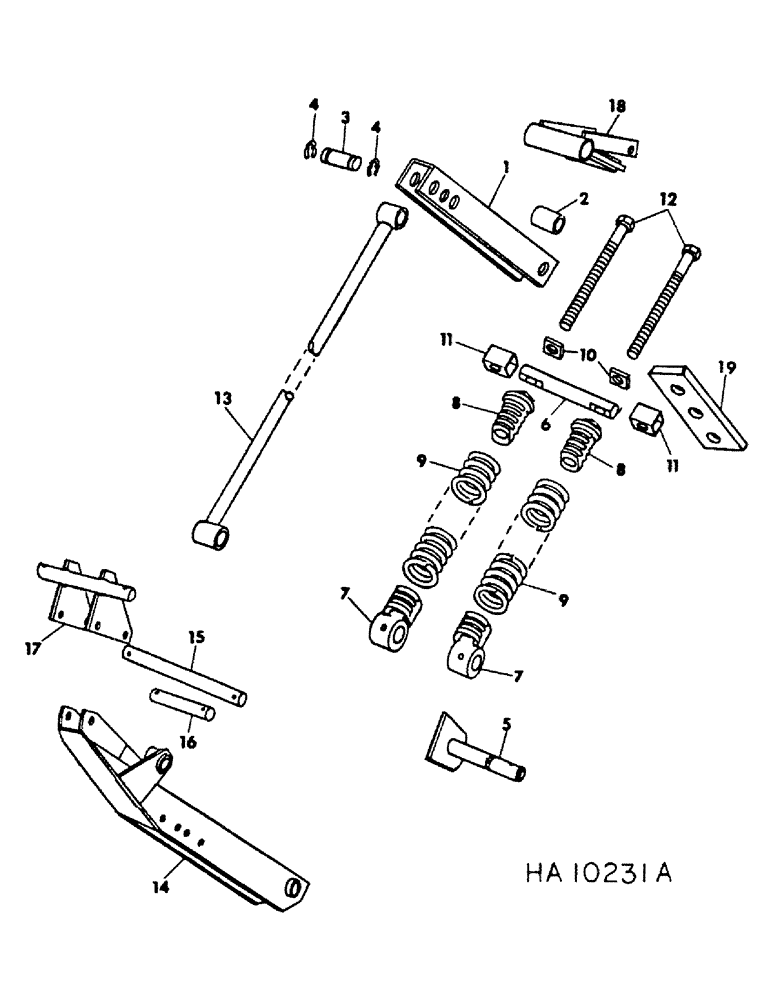

Запчасти Case IH SINGLE (A-32) - SINGLE OVERSHOT AUGER HEADER, HEADER FLOTATION AND ARM, 4000

1

828371C2

CHANNEL

lift upper

2шт.

271777

KNOB,Hex, 3/4" - 10 x 3 1/2", Gr 5

3/4 x 3-1/2 type 5

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

2

828443C1

SPACER

upper lift channel pivot

2шт.

3

828150C1

PIN,25.4mm OD x 71.88mm L

lift rod upper

4шт.

4

827695C1

CIRCLIP

RING, retaining

8шт.

5

828711C1

PIN

ASSY, lower lift arm pivot, Serial Range: prior-1978

2шт.

5

831175C1

PIN

ASSY, lower lift arm pivot w/groove 1978 and since

2шт.

616387R1

PIN,3/8" x 2", Coiled

2шт.

21226R1

WASHER

1.28 x 2.000 x .105

6шт.

273349

FITTING

1/4 PTF x/short lub

2шт.

6

828141C1

PIN

spring anchor upper w/machined flats on ends for service order 831855C1 pin w/2-831827C1 spacers

1шт.

6

831855C1

PIN

spring anchor upper

2шт.

7

596398R1

PLUG

spring lower, 4 used 1976 to 1980, 5 used 1981 and since

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8 PTF short 90D lub, as required

1шт.

8

826734C1

LUG

PLUG, spring upper, 4 used 1976 to 1980, 5 used 1981 and since

1шт.

9

827694C1

SPRING

float, 4 used 1976 to 1980, 5 used 1981 and since

1шт.

10

828142C1

BAR

spring pin spacer for use w/828141C1 pin

4шт.

11

831827C1

SPACER

spring pin for use w/831855C1 pin, 4 used 1976 to 1980, 3 used 1981 and since

1шт.

12

828145C1

BOLT,Hex, 3/4" - 10 x 11", Gr 8

float spring tension, 4 used 1976 to 1980, 5 used 1981 and since

1шт.

280954

NUT,3/4"-10, G5

5шт.

467750R1

WASHER

.781 x 1.500 x .105

5шт.

13

828369C1

ROD

ASSY, lift

2шт.

14

831543C1

ARM

ASSY, lift lower replaces 828757C1

2шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

15

828444C1

PIN

lift rod and spring anchor 9.8 inch length

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

6шт.

609836R1

WASHER

1.031 x 1.750 x .054

12шт.

16

831017C1

PIN

lift rod lower anchor RH 5.9 inch length

1шт.

17

831611C1

ANCHOR

ASSY, lift rod & spring lower, 12 ft & 14 ft RH 1978 to 1980, 12 ft RH & 14 ft LH 1981 & since

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

609836R1

WASHER

1.031 x 1.750 x .054

4шт.

18

832426C1

PIVOT

ASSY, float spring upper, for use on chassis built 1978 and since, for either or both floats

1шт.

191163

BOLT,Hex, 3/8" - 16 x 4", Gr 5

3/8 x 4 type 5

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1/2 x 2-1/2 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

19

831870C1

BAR

third spring upper anchor

1шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

280954

NUT,3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

467750R1

WASHER

.781 x 1.500 x .105

1шт.
