Запчасти Case IH SINGLE (A-30) - SINGLE OVERSHOT AUGER HEADER, HEADER FLOTATION AND ARM, 275

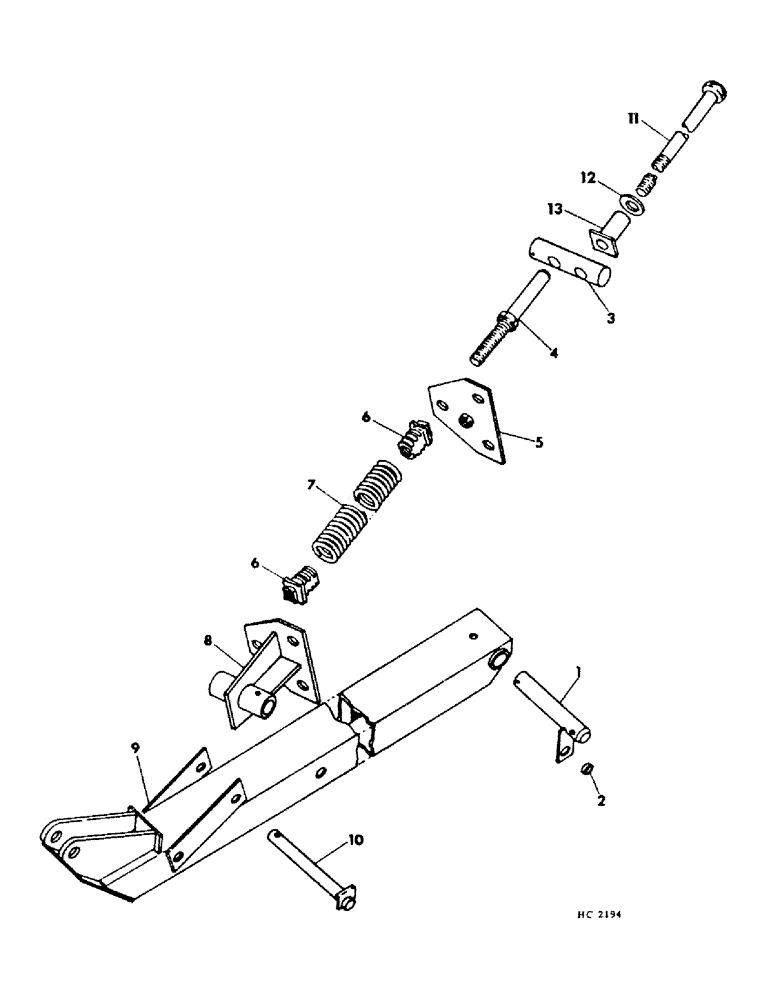

Схема запчастей Case IH SINGLE - (A-30) - SINGLE OVERSHOT AUGER HEADER, HEADER FLOTATION AND ARM, 275

Артикул

Название

Примечание

Количество

1

595668R11

PIN

ASSY, lift arm rear

2шт.

180153

BOLT,Hex, 7/16" - 14 x 2", Gr 5

7/16-14 x 2 hex hd

2шт.

271501

SOCKET

NUT, 7/16-14 hex

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

893862R1

WASHER

.469 x 1.250 x .105

2шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

2шт.

2

595670R1

SPACER

lift arm pin

2шт.

3

826556C1

PIN

spring anchor upper

2шт.

21717R1

WASHER, 1.531 x 2.000 x .105

2шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

2шт.

4

595681R11

STUD

ASSY, spring alignment

2шт.

426898

NUT,Jam, 7/8"-9, G5

7/8-9 hex jam

2шт.

5

826732C1

BRACKET

ASSY, spring upper

2шт.

413-1432

BOLT,Hex, 7/8" - 9 x 2", Gr 5

7/8-9 x 2 hex hd , Course threads

10шт.

131047

WASHER,7/8"

7/8"

10шт.

6

596400R1

PLUG, spring

12шт.

7

596399R2

SPRING

float

6шт.

8

826759C1

BRACKET

ASSY, spring lower

2шт.

19628R91

NIPPLE, LUBE

FITTING, 1/8 pipe thd 450 lub

2шт.

9

828631C1

ARM

ASSY, platform lift

2шт.

271776

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 5

3/4-10 x 3-1/4 hex hd

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4 lub

2шт.

10

826659C1

PIN

ASSY, float spring lower anchor

2шт.

11

595683R2

BOLT,Hex, 7/8" - 9 x 19.50mm

spring adjusting

2шт.

426898

NUT,Jam, 7/8"-9, G5

7/8-9 hex jam

2шт.

12

595685R1

WASHER

adj bolt thrust

2шт.

13

595996R92

ANCHOR ASSY, spring adj bolt

2шт.

Выбрано товаров: 29
