Запчасти Case IH SINGLE (A-29) - SINGLE OVERSHOT AUGER HEADER, REAR DEFLECTOR, 275 - 375

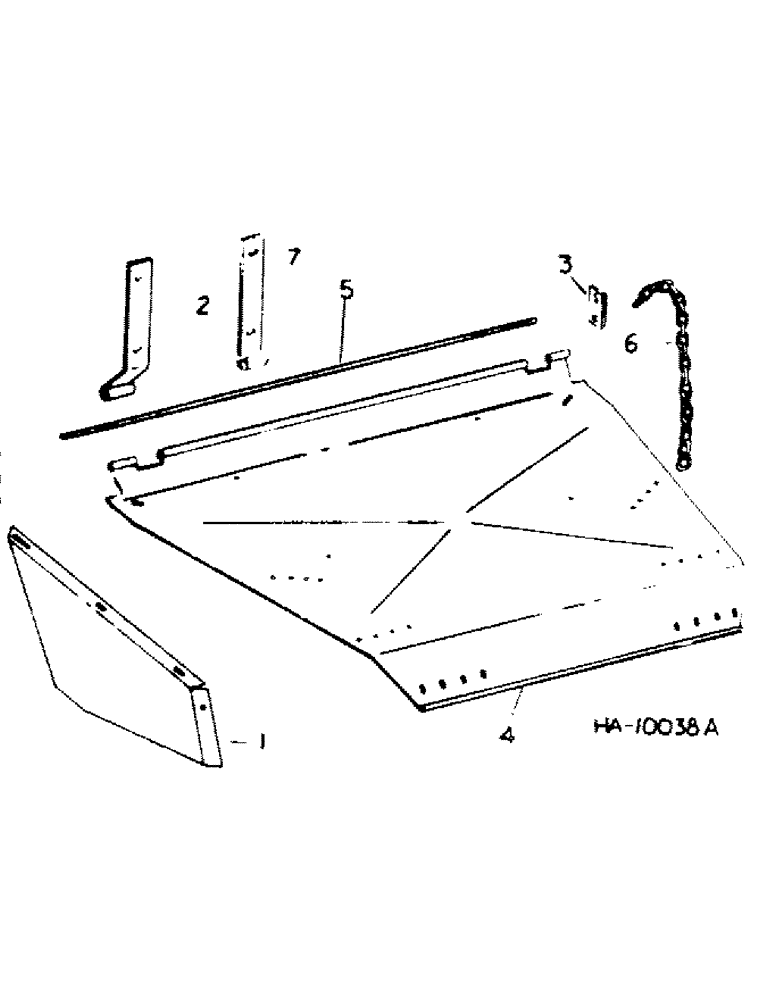

Схема запчастей Case IH SINGLE - (A-29) - SINGLE OVERSHOT AUGER HEADER, REAR DEFLECTOR, 275 - 375

Артикул

Название

Примечание

Количество

1

828704C1

DEFLECTOR

rear side LH shown

1шт.

1

828705C1

DEFLECTOR

rear side RH

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

6шт.

2

829084C1

SUPPORT, deflector hinge

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

3

829977C1

BAR, deflector adj chain

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

2шт.

120-384

WASHER, 1/2 lock

2шт.

4

828102C2

DEFLECTOR

rear

1шт.

5

828101C2

ROD

deflector pivot

1шт.

6

829565C1

CHAIN (AG)

CHAIN, deflector adj

2шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 ZNP hex-hd flange lock

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.

20893R1

WASHER

.344 x 1.000 x .105

2шт.

7

(Not used in this application)

1шт.

Выбрано товаров: 17
