Запчасти Case IH SINGLE (A-28) - SINGLE OVERSHOT AUGER HEADER, CONDITIONER UPPER ROLL, HEADER

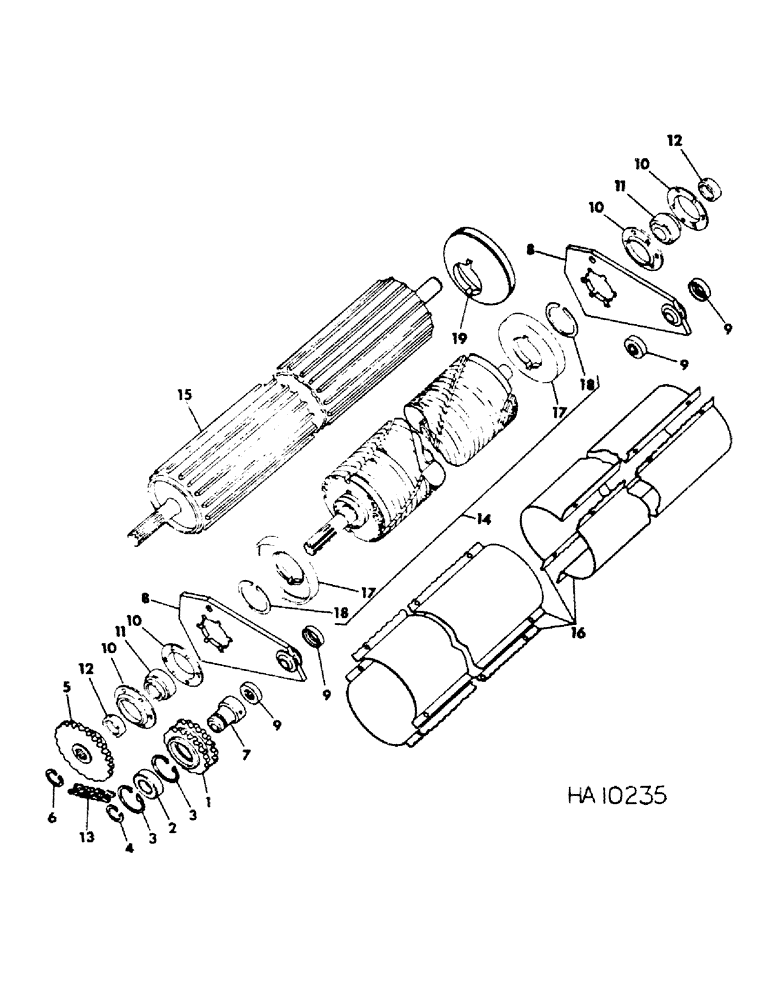

Схема запчастей Case IH SINGLE - (A-28) - SINGLE OVERSHOT AUGER HEADER, CONDITIONER UPPER ROLL, HEADER

Артикул

Название

Примечание

Количество

1

828070C1

SPROCKET ASSY.

SPROCKET ASSY, 20T duel idler

1шт.

2

584148R91

BEARING ASSY,35mm ID x 72mm OD x 25mm W

BEARING, idler sprocket

1шт.

3

468337R1

SNAP RING,2.812", Int, #281

Ring, Snap, , brg 2.812", Int, #281

2шт.

4

21193R1

SNAP RING,#137. Ext

Ring, Snap, #137, Ext, sprocket

1шт.

5

828550C1

SPROCKET ASSY.

SPROCKET ASSY, 26T upper roll drive

1шт.

608085R1

WASHER

1.406 x 2.000 x .054 as reqd

4шт.

6

21193R1

SNAP RING,#137. Ext

Ring, Snap, #137, Ext, upper roll sprocket

1шт.

7

828069C1

SHAFT

idler sprocket pivot cam

1шт.

608085R1

WASHER

1.406 x 2.000 x .054 or as reqd

2шт.

8

828520C1

ARM

ASSY, upper roll pivot

2шт.

19866R1

BOLT,Hex, 3/4" - 10 x 6 1/2", Gr 5

3/4-10 x 6-1/2 hex hd

1шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

467750R1

WASHER

.781 x 1.500 x .105

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

9

829542C1

SEAL

ball

4шт.

10

825620C1

RETAINER

bearing flangette

4шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8-16 x 1-1/4 crg

12шт.

120377

NUT,3/8" - 16, Gr 5

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

11

611583R91

BALL BEARING

BEARING, roll

2шт.

12

517645R11

COLLAR

W/SET SCREW, roll bearing

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8-16 x 3/8 cup pt set

2шт.

13

CHAIN ASSY, upper roll for service parts refer to conditioner drive

1шт.

14

828009C91

ROLL

ASSY, upper rubber conditioning

1шт.

15

828697C1

ROLL

ASSY, crimper use 1 on lower roll and 1 on upper roll together

1шт.

16

830227C1

CLAMP

straw feeder, for use with conditioning straw attached to rubber upper roll only

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

16шт.

120377

NUT,3/8" - 16, Gr 5

16шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

16шт.

17

598317R2

CAP

roller end

2шт.

18

598318R1

RING, SNAP

RING, end cap retaining

2шт.

19

598316R1

DISC

DISK, rubber

117шт.

Выбрано товаров: 34
