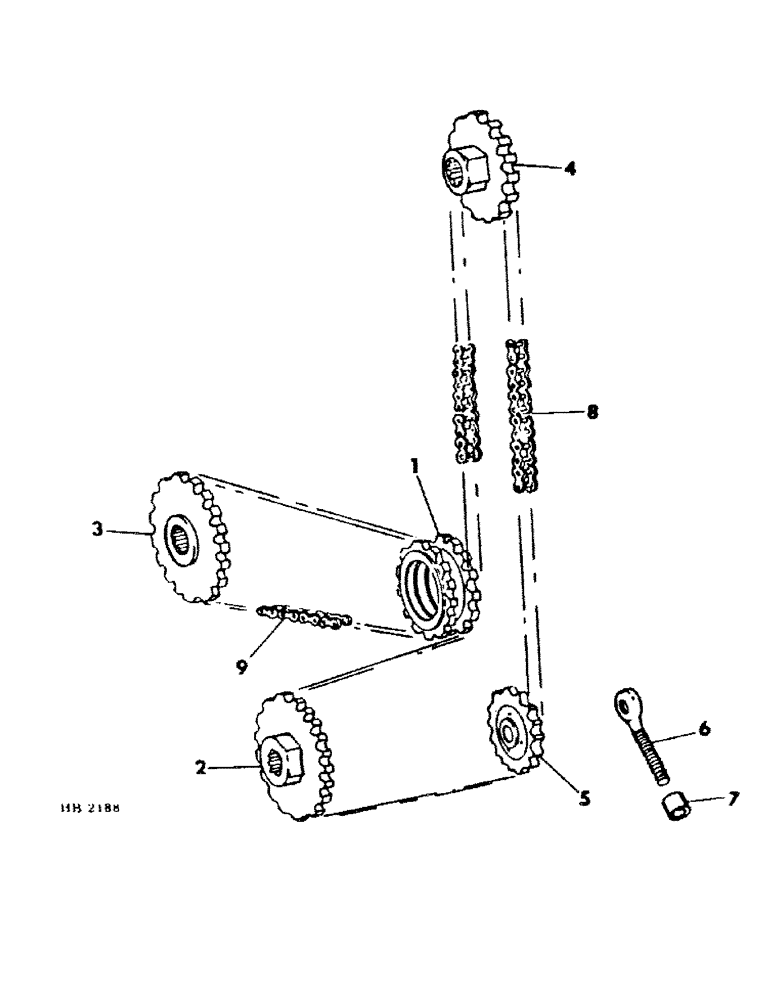

Запчасти Case IH SINGLE (A-26) - SINGLE OVERSHOT AUGER HEADER, CONDITIONER DRIVE, HEADER

1

828070C1

SPROCKET ASSY.

SPROCKET ASSY, 20T dual idler, for connecting parts refer to conditioner upper roll

1шт.

2

828550C1

SPROCKET ASSY.

SPROCKET ASSY, 26T lower roll drive, for connecting parts refer to conditioner lower roll

1шт.

3

828550C1

SPROCKET ASSY.

SPROCKET ASSY, 26T upper roll drive, for connecting parts refer to conditioner upper roll

1шт.

4

828807C1

SPROCKET ASSY.

SPROCKET, 18T hay conditioner drive, for connecting parts refer to header drive

1шт.

5

825512C1

SPROCKET ASSY.

SPROCKET ASSY, 15T DR chain tightener

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

5/8-11 x 2-1/4 hex hd

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

464623R1

WASHER

.656 x 1.500 x .105 as reqd

2шт.

6

828221C1

BOLT,Eye, 1/2" - 13 x 3.25"

tightener sprocket adj

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

7

M42296

SPACER,1/2" X-Strng Pipe x 1/2"

adj bolt

1шт.

8

CHAIN ASSY, hay conditioner drive use 101 links 3/4 std pitch roller chain fram a 10 ft roll 611362R91 and add 1, connecting link 574532R91 & 1 offset link

1шт.

9

CHAIN ASSY, upper roll drive use 39 links 3/4 std pitch roller chain from a 10 ft roll 611362R91 and add 1 connecting link 574532R91 and 1 offset link 612612R91

1шт.

612612R91

CHAIN LINK

LINK, #60 single pitch offset

1шт.

574532R91

CLIP, SPRING

LINK, #60 single pitch connecting

1шт.
