Запчасти Case IH SINGLE (A-25) - SINGLE OVERSHOT AUGER HEADER, CONDITIONER ROLL TENSION

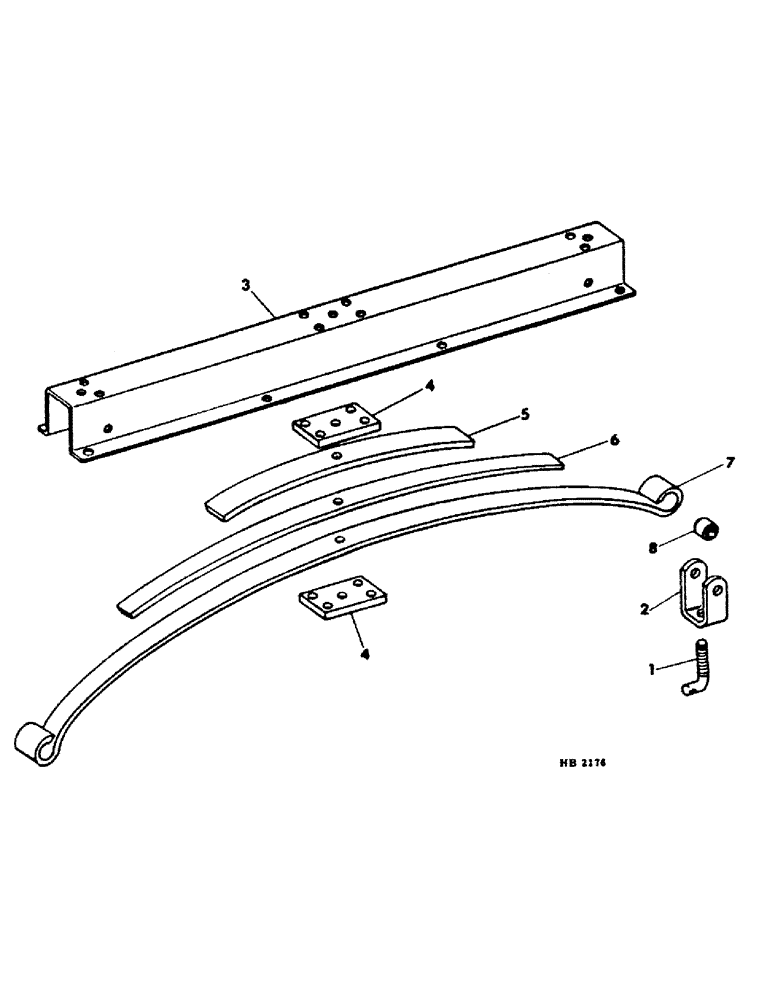

Схема запчастей Case IH SINGLE - (A-25) - SINGLE OVERSHOT AUGER HEADER, CONDITIONER ROLL TENSION

Артикул

Название

Примечание

Количество

1

829020C1

BOLT,Adj, 3/4" - 10 x 3.2"

leaf spring

2шт.

280954

NUT,3/4"-10, G5

4шт.

599744R1

AXLE PIN

PIN, quick-attachable cotter

2шт.

2

829019C1

CLEVIS

leaf spring

2шт.

3

829015C1

SUPPORT

leaf spring

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex hd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

4

829017C1

BAR

leaf spring clamping & spacer

2шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8-16 x 3 hex hd

5шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

5

829014C1

SPRING

third leaf

1шт.

6

829013C1

SPRING, LEAF

SPRING, second leaf

1шт.

7

829012C1

SPRING, LEAF

SPRING, main leaf

1шт.

8

829533C1

BUSHING

main leaf spring

2шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

5/8-11 x 3-3/4 hex-hd

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

Выбрано товаров: 19
