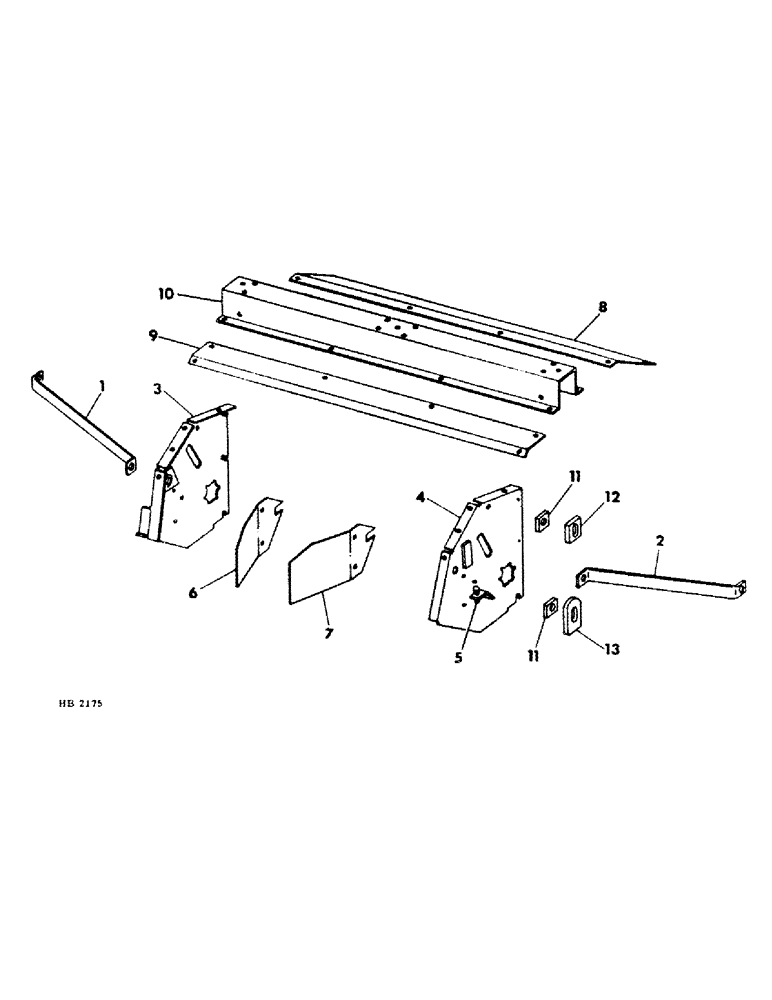

Запчасти Case IH SINGLE (A-24) - SINGLE OVERSHOT AUGER HEADER, CONDITIONER FRAME AND SHIELDS,
№
Артикул
Название
Примечание
Количество
1
828530C2
SUPPORT
side LH
1шт.
2
828531C1
SUPPORT
side RH
1шт.
180175
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
1/2-13 x 1-1/4 hex hd
2шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
120384
WASHER,1/2"
LOCK, 1/2"
2шт.
3
828512C3
SIDE ASSY.
SIDE ASSY, frame LH
1шт.
4
828513C2
SIDE ASSY.
SIDE ASSY, frame RH
1шт.
204060C1
BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/4"
1/2-13 x 1-1/4 hex flange lock
2шт.
174985C1
BOLT,Hex Serr, 1/2" - 13 x 1"
1/2-13 x 1 hex flange lock
2шт.
5
650006R1
BOLT,Hex, 5/8" - 11 x 2 1/2", Full Thd
5/8-11 x 1-1/2 hex hd
2шт.
280374
NUT,Hex, 5/8" - 11, Gr 5
5/8-11 hex
2шт.
6
828523C1
SHIELD
hay conditioner inner LH
1шт.
7
828946C1
SHIELD
hay conditioner inner RH
1шт.
598809R1
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5
BOLT, 3/8-16 x 3/4 crg
4шт.
120377
NUT,3/8" - 16, Gr 5
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
8
829969C1
SHIELD
cover front
1шт.
120377
NUT,3/8" - 16, Gr 5
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
9
829970C2
SHIELD
cover rear
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8-16 hex flanged
6шт.
10
829015C1
SUPPORT
leaf spring, for connecting parts refer to conditioner roll tension spring
1шт.
11
829984C1
BAR
roll stop and adj spacer
4шт.
12
830228C1
BAR
roll stop adjusting
2шт.
441452R1
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5
BOLT, 5/8-11 x 2 crg
2шт.
280374
NUT,Hex, 5/8" - 11, Gr 5
5/8-11 hex
2шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
464623R1
WASHER
.656 x 1.500 x .105
4шт.
13
828064C1
BAR
roll adjusting
2шт.
441452R1
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5
BOLT, 5/8-11 x 2 carriage
2шт.
280374
NUT,Hex, 5/8" - 11, Gr 5
5/8-11 hex
2шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
464623R1
WASHER
.656 x 1.500 x .105
2шт.
21782R1
WASHER
.656 x 1.500 x .054
4шт.
Выбрано товаров: 36
