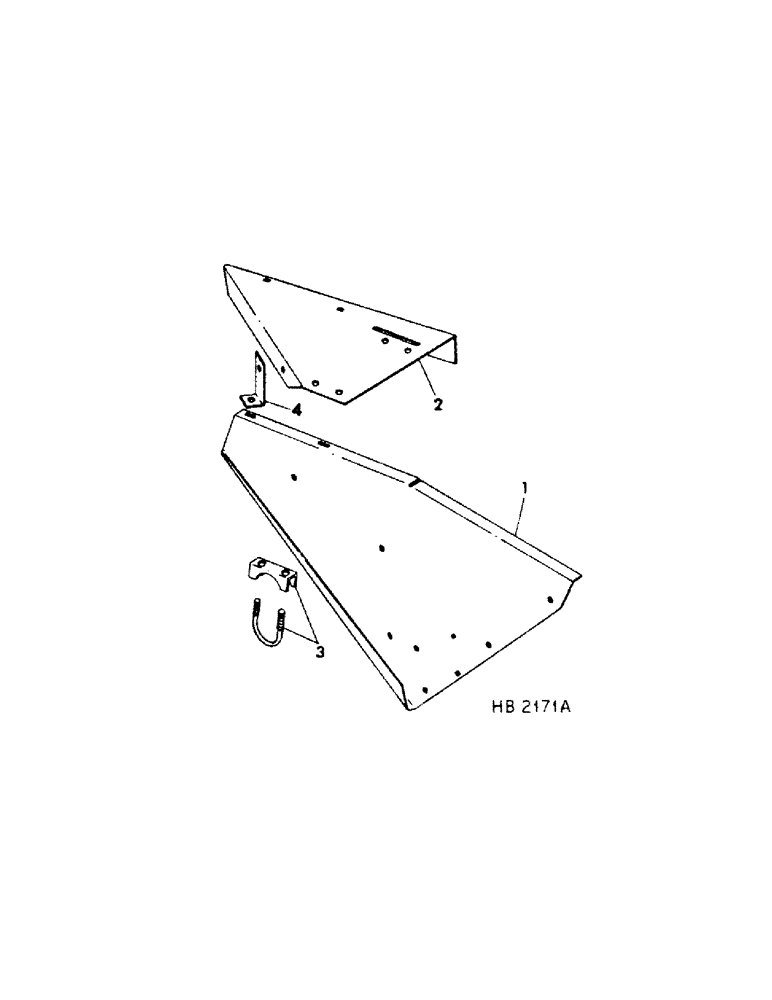

Запчасти Case IH SINGLE (A-23[1]) - DIVIDER ATTACHMENT FOR USE WITH TALL CROPS

1

829162C2

EXTENSION

divider side LH

1шт.

1

829163C2

EXTENSION

divider side RH shown

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex hd

4шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8-16 x 7/8 hex hd

2шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

2

829160C2

EXTENSION

divider top LH

1шт.

2

829161C2

EXTENSION

divider top RH shown

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 carriage

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

619855R1

WASHER

.344 x .750 x .054

4шт.

3

119442H1

CLAMP

divider extension

4шт.

4

827842C1

SUPPORT

top extension, for use w/lean bar in low position

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

619855R1

WASHER

.344 x .750 x .054

2шт.
