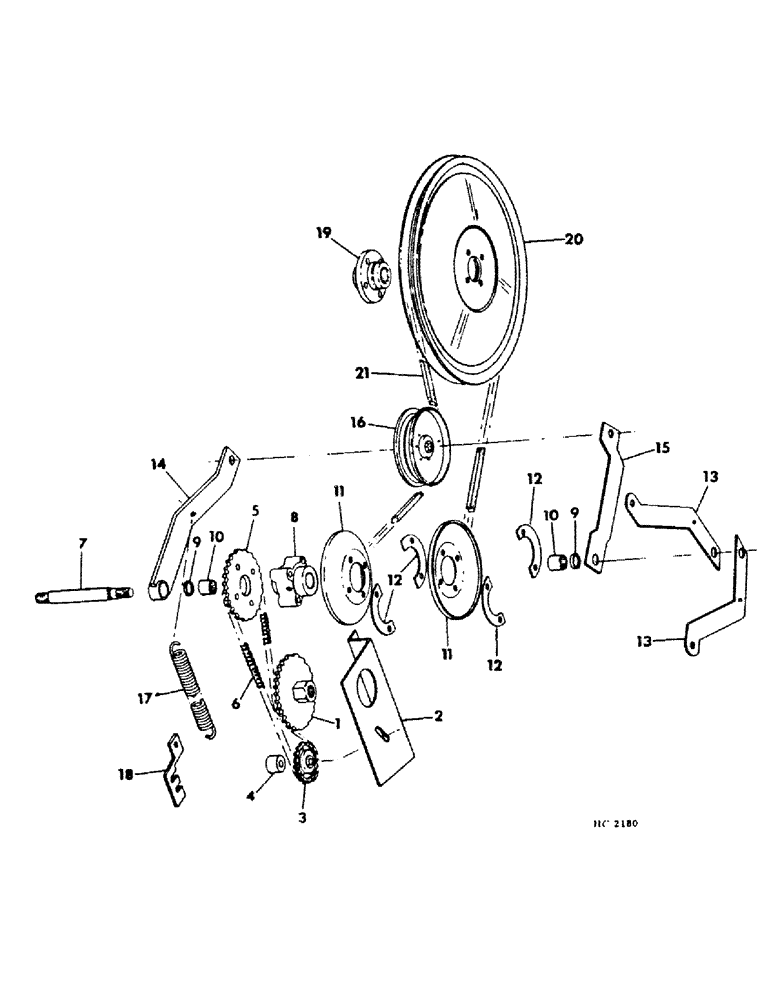

Запчасти Case IH SINGLE (A-20) - SINGLE OVERSHOT AUGER HEADER, REEL DRIVE

1

828667C1

SPROCKET ASSY.

SPROCKET ASSY, 20T reel driveshaft drive, for connecting parts refer to auger and shafts

1шт.

2

828677C1

SUPPORT

tightener sprocket

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 carriage

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex hd

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3

565442R91

SPROCKET

ASSY, 17T chain tightener

1шт.

26877R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3 1/2", Gr 5

BOLT, 1/2 x 3-1/2 crg type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

607896R1

SQ HOLE WASHER,17/32" x 1 1/4" x .120", Sq Hole

.531 sq x 1.250 x .105

2шт.

20601R1

WASHER

.531 x 1.250 x .105

3шт.

4

828676C1

SPACER

sprocket

1шт.

5

609742R1

SPROCKET ASSY.

SPROCKET, 30T reel driveshaft driven

1шт.

6

CHAIN, reel driveshaft drive use 69 links of 5/8 std pitch roller chain from 10 ft roll 1791D & 1 connecting link 1310D

1шт.

1310D

LINK

#50 single pitch connecting

1шт.

7

828670C1

SHAFT

reel drive

1шт.

426099

NUT,3/4"-16, G5

3/4-16 hex

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

614451R1

WASHER

1.031 x 1.750 x .105, as required

5шт.

609836R1

WASHER

1.031 x 1.750 x .054 as required

3шт.

8

824057C2

HUB

reel drive pulley

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

9

697494R91

OIL SEAL

SEAL, hub oil

2шт.

10

252049C91

BEARING, ROLLER

BEARING, hub

2шт.

11

609727R3

PULLEY

reel drive half

2шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8-16 x 3 hex hd

4шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 hex-lock

4шт.

12

609726R1

RETAINER

SPACER, pulley half

12шт.

13

828671C2

SUPPORT

reel driveshaft

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex hd

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2-13 x 1-3/4 hex hd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

20601R1

WASHER

.531 x 1.250 x .105

2шт.

14

828845C1

ARM

ASSY, belt tightener pulley

1шт.

15

828824C1

SUPPORT

belt tightener pulley

1шт.

16

564745R91

PULLEY

belt tightener

1шт.

271724

PIN,Hex, 5/8" - 11 x 2 1/4", Gr 5

5/8-11 x 2-1/4 hex hd

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

464623R1

WASHER

.656 x 1.500 x .105

1шт.

17

23488S

SPRING

arm

1шт.

18

828846C1

SUPPORT

spring anchor

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 carriage

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

20803R1

WASHER

.406 x 1.000 x .105

1шт.

19

828678C1

HUB

reel driven pulley

1шт.

20

597985R2

PULLEY

ASSY, reel driven

1шт.

454869

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

5/16-18 x 3/4 hex hd type 8

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

21

599428R1

V-BELT,0.88" W

Reel drive 0.88" W

1шт.

21

153301C1

V-BELT,0.88" W x 115.87" L

Reel Drive, Used When Reel is Located at Forward End of Adjustment Range 0.88" W x 115.87" L

1шт.
