Запчасти Case IH SINGLE (A-19) - SINGLE OVERSHOT AUGER HEADER, REEL DRIVE SHAFT AND SUPPORTS

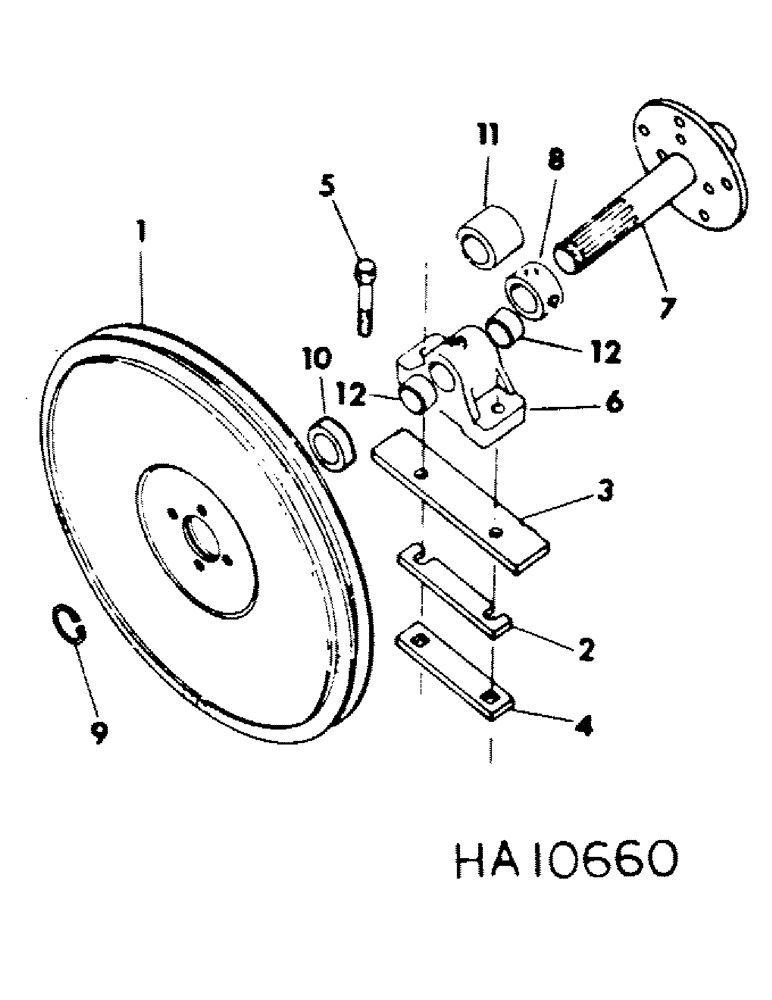

Схема запчастей Case IH SINGLE - (A-19) - SINGLE OVERSHOT AUGER HEADER, REEL DRIVE SHAFT AND SUPPORTS

Артикул

Название

Примечание

Количество

1

597985R2

PULLEY

ASSY, reel driven, for connecting parts refer to reel drive

1шт.

2

828185C1

BAR

reel support shim

3шт.

3

829098C1

BAR

reel height adjuster RH, replaces 829097C1 adjuster w/welded nuts

1шт.

4

829096C1

BAR

adjuster backing

1шт.

5

625691R1

BOLT, reel height adjusting, for use 829097C1 adjuster w/welded nuts

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

6

828186C1

BEARING

reel driven shaft support, for service order 1-823183C91 bearing assy

1шт.

6

823183C91

BEARING ASSY

ASSY, reel driven shaft support, includes 2-823184C1 bushings

1шт.

27461R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3 1/4", Gr 5

BOLT, 1/2 x 3-1/4 crg type 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

7

828815C2

SHAFT

ASSY, reel driven

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex hd

5шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1/2-13 hex serrated lock

5шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

608085R1

WASHER

1.406 x 2.000 x .054

3шт.

22482R1

WASHER

1.406 x 2.250 x .105

1шт.

8

829250C1

SPACER

reel support bearing locking, for service order 1-831312C1 spacer and 608085R1 washers as reqd

1шт.

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW, 3/8-16 x 3/8 hex socket set

2шт.

9

21193R1

SNAP RING,#137. Ext

Ring, Snap, #137, Ext, reel driven hub

1шт.

10

28164R1

SPACER

bearing

1шт.

11

831312C2

SPACER

reel support bearing

1шт.

12

823184C1

BUSHING

reel driven shaft support

2шт.

Выбрано товаров: 25
