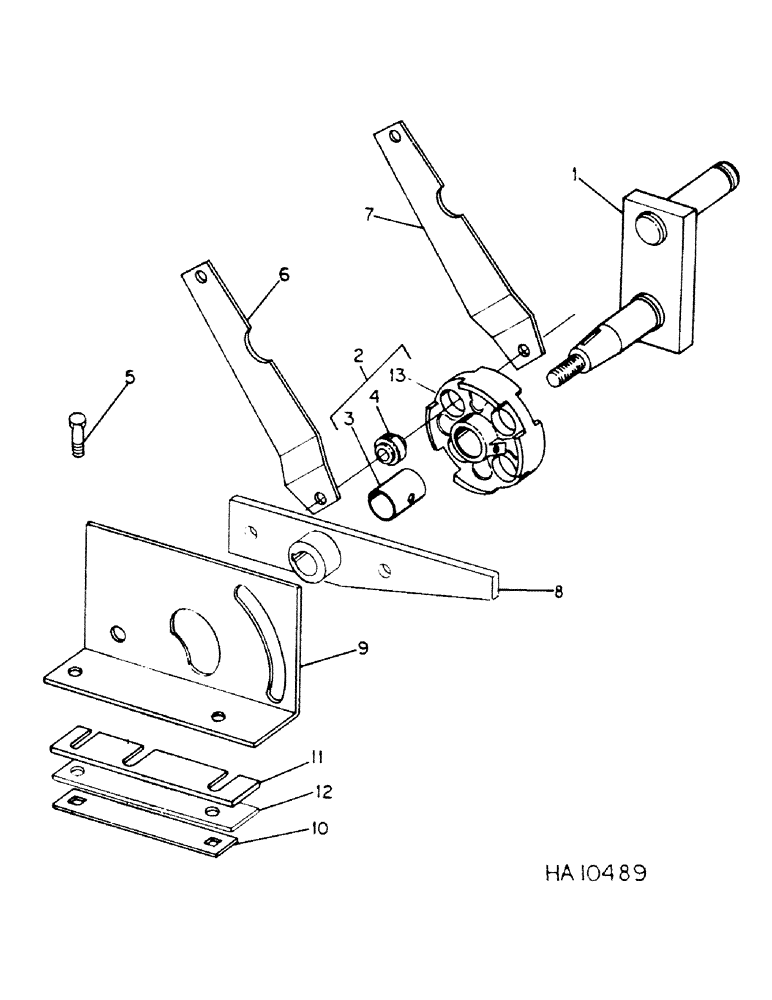

Запчасти Case IH SINGLE (A-17) - SINGLE OVERSHOT AUGER HEADER, REEL CRANKSHAFT AND SUPPORTS

1

828839C1

CRANK

ASSY, reeel support LH, for connecting parts refer to pick up reel and shaft

1шт.

22051R1

WASHER

1.531 x 2.250 x .054

4шт.

26512R1

WASHER

.781 x 2.000 x .164

2шт.

280954

NUT,3/4"-10, G5

1шт.

2

829469C92

HUB

ASSY, crank

1шт.

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 PTF short 45D lub

1шт.

3

829455C1

BUSHING

crank hub

1шт.

4

611928R91

BALL BEARING,13 mm ID x 40 mm OD x 18 mm

crank arm

4шт.

5

625691R1

BOLT, reel height adjusting, for use w/829095C2 bracket w/welded nut

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

6

830124C1

SUPPORT

reel crank LH

4шт.

7

829457C1

SUPPORT

reel crank RH

4шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2-13 x 1-3/4 hex-hd

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

8

829561C1

HUB

ASSY, crank

1шт.

117991

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

1шт.

9

827615C3

SUPPORT

reel LH replaces 829095C2 bracket w/welded nut

1шт.

591514R1

CARRIAGE BOLT,1/2" - 13 x 2 3/4", Grade 5

BOLT, 1/2 x 2-3/4 crg type 5

2шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

BOLT, 5/8-11 x 1-3/4 hex hd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

464623R1

WASHER

.656 x 1.500 x .105

1шт.

10

829105C1

BAR

reel support backing LH

1шт.

11

827616C1

BAR

reel support shim LH

3шт.

12

831767C1

BAR

reel support

1шт.

13

HUB, crank (NSS)

1шт.
