Запчасти Case IH SINGLE (A-15) - SINGLE OVERSHOT AUGER HEADER, PICK-UP REEL

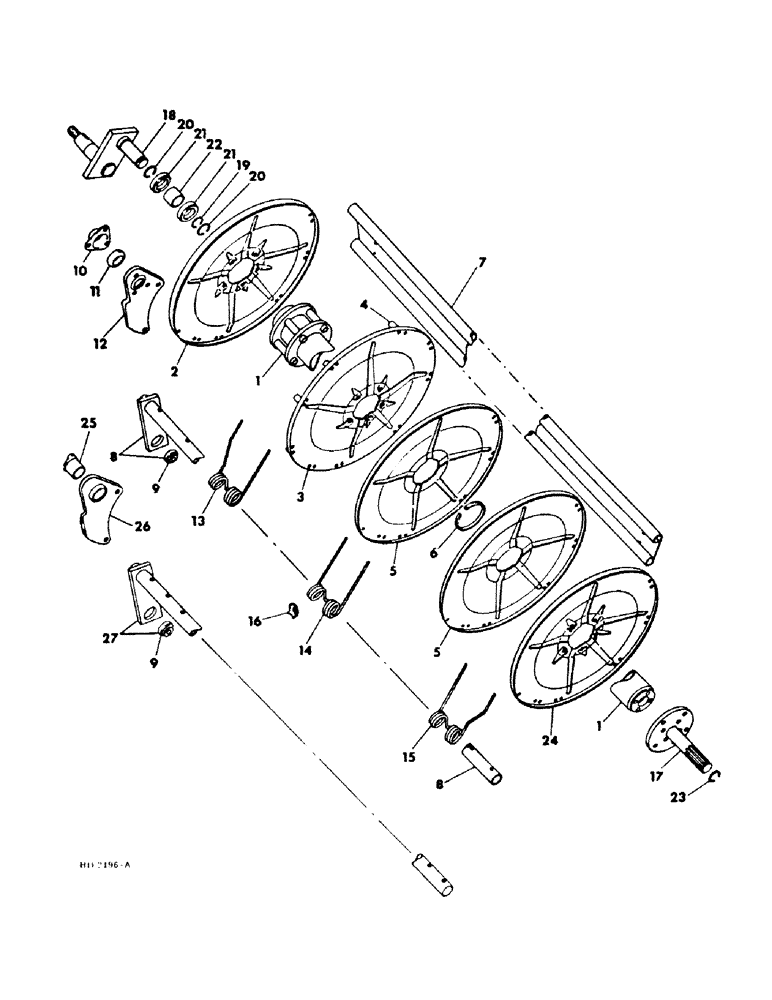

Схема запчастей Case IH SINGLE - (A-15) - SINGLE OVERSHOT AUGER HEADER, PICK-UP REEL

Артикул

Название

Примечание

Количество

1

828818C1

REEL,159.33" Length

TUBE ASSY, reel 12 ft

1шт.

1

828819C1

REEL,159.33" Length

TUBE ASSY, reel 14 ft

1шт.

2

828809C1

PLATE

tine tube end LH

1шт.

3

PLATE, tine tube inner LH, for service order 1-828809C1 plate and 8-97457R1 spacer

1шт.

24621R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8

8шт.

433156

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

1/2-13 x 4-1/2 hex hd

5шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 hex serrated lock

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

5шт.

120384

WASHER,1/2"

LOCK, 1/2"

5шт.

4

97457R1

SPACER,3/8" X-Strng Pipe x 1 9/16"

tine tube plate

8шт.

5

540556R1

PLATE

tine tube

2шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8-16 x 5/8 hex-hd

16шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 hex serrated lock

16шт.

6

829939C1

BUMPER

tine tube plate

2шт.

7

828811C2

BAT

reel 12 ft

4шт.

7

828812C2

BAT

reeel 14 ft

4шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex hd

32шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 hex serrated lock

32шт.

20803R1

WASHER

.406 x 1.000 x .105

32шт.

8

827735C91

TUBE

ASSY, pick-up finger tine #1, 12 ft w/18 spring holes prior to serial no. 1401

2шт.

8

827736C91

TUBE

ASSY, pick-up finger tine #2, 12 ft w/19 spring holes prior to serial no. 1401

2шт.

8

827601C91

TUBE

ASSY, pick-up finger tine #1 14 ft w/21 spring holes prior to serial no. 1401

2шт.

8

827602C91

TUBE

ASSY, pick-up finger tine #2 14 ft w/22 spring holes prior to serial no. 1401, includes 1-611928R91 bearing

2шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2-13 x 1-3/4 hex-hd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

608085R1

WASHER

1.406 x 2.000 x .054

1шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

4шт.

9

611928R91

BALL BEARING,13 mm ID x 40 mm OD x 18 mm

reel support arm

4шт.

10

540579R1

FLANGE

finger tube bearing prior to serial no. 1401

16шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

48шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 hex serrated lock

48шт.

11

541527R1

BUSHING,34.04mm ID x 47.02mm OD

BUSHING, finger tube ball prior to serial no. 1401

16шт.

23591R1

FITTING, 1/4-28 str lub

16шт.

12

828959C1

SUPPORT

finger tube & bat prior to serial no. 1401

16шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8-16 x 5/8 hex hd

16шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex hd

8шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 hex serrated lock

24шт.

828387C1

BELLEVILLE WASHER

bevel spring, RH end at supports

8шт.

13

828766C1

FINGER

reel pick-up end LH

4шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

5/16-18 x 2 hex-hd

4шт.

9413952

LOCK NUT,5/16"-18, GB

NUT, 5/16-18 hex lock

4шт.

20893R1

WASHER

.344 x 1.000 x .105

4шт.

14

540565R1

SPRING

FINGER, reel pick-up, 64 used 12 ft, 76 used 14 ft

1шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

5/16-18 x 2 hex-hd, per spring

1шт.

9413952

LOCK NUT,5/16"-18, GB

NUT, 5-16/18 hex lock, per bolt

1шт.

15

829227C1

FINGER

reel pick-up end RH

4шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

5/16-18 x 2 hex-hd

4шт.

9413952

LOCK NUT,5/16"-18, GB

NUT, 5/16-18 hex lock

4шт.

20893R1

WASHER

.344 x 1.000 x .105

4шт.

16

595876R1

COVER

RETAINER, pick-up finger

64шт.

17

828815C2

SHAFT

ASSY, reel driven, for connecting parts refer to reel drive shaft and support RH

1шт.

18

828839C1

CRANK

ASSY, reel support LH

1шт.

22051R1

WASHER

1.531 x 2.250 x .054

4шт.

26512R1

WASHER

.781 x 2.000 x .164

2шт.

280954

NUT,3/4"-10, G5

1шт.

19

21193R1

SNAP RING,#137. Ext

Ring, Snap, #137, Ext, crank

1шт.

20

468337R1

SNAP RING,2.812", Int, #281

Ring, Snap, , crank brg 2.812", Int, #281

2шт.

21

117510R91

BEARING, BALL

BEARING, crank

2шт.

22

829088C1

SPACER

crank bearing

1шт.

23

21193R1

SNAP RING,#137. Ext

Ring, Snap, #137, Ext, shaft

1шт.

24

828809C1

PLATE

tine tube end RH, not for use w/wheel type bolts

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

8шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

5шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 hex serrated lock

8шт.

828387C1

BELLEVILLE WASHER

bevel spring

8шт.

24

831830C1

PLATE

tine tube end RH, for used w/wheel type bolts

1шт.

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

1/2-20 wheel

5шт.

120371

NUT,1/2"-20, G5

5шт.

120384

WASHER,1/2"

LOCK, 1/2"

5шт.

25

BUSHING, finger tube, for service order 832405C1 kit serial no. 1401 and since

1шт.

25

832405C1

KIT

finger tube bushin, consists of (4) bushings (NSS)

1шт.

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

1/4-20 x 2-1/4 hex-hd

16шт.

231-4144

NUT,1/4"-20, GB

NUT, 1/4-20 prevailing torque hex

16шт.

26

831559C2

SUPPORT

ASSY, finger tube and bat serial no. 1401 and since

16шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8-16 x 5/8 hex-hd

16шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

8шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 hex serrated lock

24шт.

828387C1

BELLEVILLE WASHER

bevel spring

1шт.

25391R1

FITTING

1/4 less ball check lub, used w/831559C1 only

16шт.

27

831566C91

TUBE

ASSY, pick-up finger tine #1 12 ft w/18 spring holes serial no. 1401 and since

2шт.

27

831567C91

TUBE

ASSY, pick-up finger tine #2 12 ft w/19 spring holes serial no. 1401 and since

2шт.

27

831564C91

TUBE

ASSY, pick-up finger tine #1 14 ft w/21 spring holes, serial no. 1401 and since

2шт.

27

831565C91

TUBE

ASSY, pick-up finger tine #2 14 ft w/22 spring holes, serial no. 1401 and since, includes 1-611928R91 bearing

2шт.

Выбрано товаров: 84
