Запчасти Case IH SINGLE (A-14) - SINGLE OVERSHOT AUGER HEADER, KNIFE DRIVE SHIELDS AND

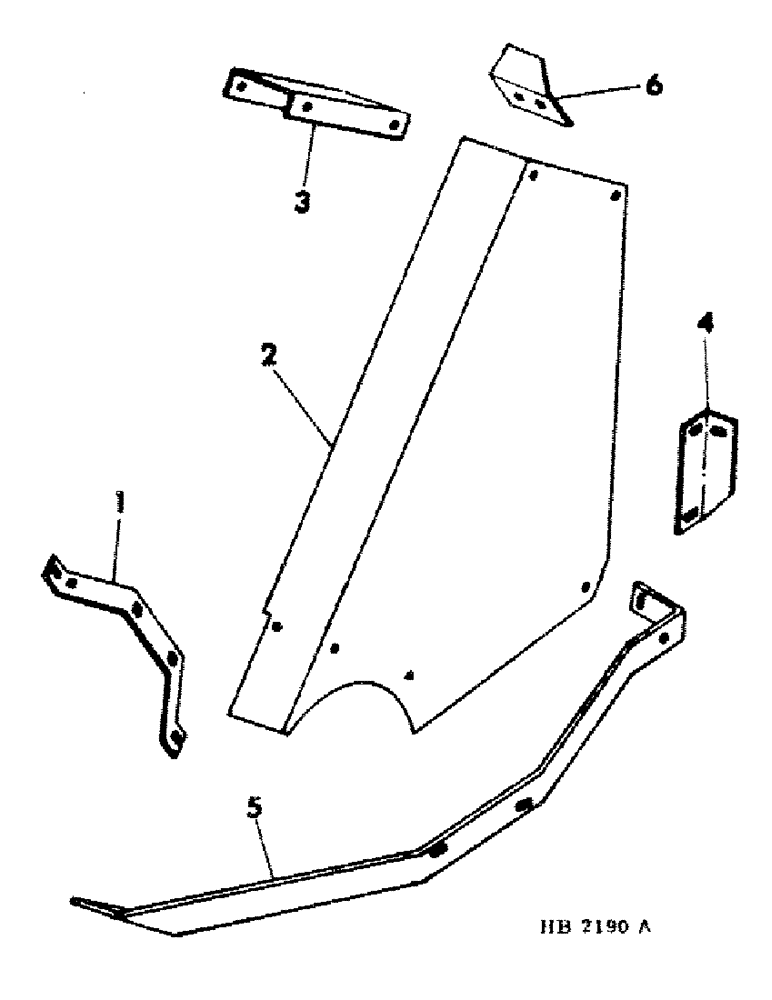

Схема запчастей Case IH SINGLE - (A-14) - SINGLE OVERSHOT AUGER HEADER, KNIFE DRIVE SHIELDS AND

Артикул

Название

Примечание

Количество

1

829418C1

SUPPORT, knife drive shield

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 carriage

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

619856R1

WASHER

.406 x 1,000 x .056

2шт.

2

823175C91

SHIELD

W/PRODUCT GRAPHIC, knife drive replaces 829417C2

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

3/8-16 x 3/4 hex-hd flange lock

3шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex hd

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 carriage

3шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 hex flange lock

7шт.

176977C1

PRODUCT GRAPHIC

danger

1шт.

3

829416C2

CHANNEL

knife drive shield rear supp

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex hd

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex hd

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

4

829222C1

ANGLE

knife drive rear support

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 hex hd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

178374R1

WASHER

.531 x 1.250 x .054

2шт.

5

827221C1

SUPPORT

knife drive shield

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex hd

3шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2 x 1-1/2 crg type

5шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

20601R1

WASHER

.531 x 1.250 x .105

4шт.

178374R1

WASHER

.531 x 1.250 x .054

1шт.

6

831826C1

SUPPORT

reflector

1шт.

298809R1

BOLT, 3/8-16 x 3/4 crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

Выбрано товаров: 32
