Запчасти Case IH SINGLE (A-12) - SINGLE OVERSHOT AUGER HEADER, KNIFE AND GUARDS

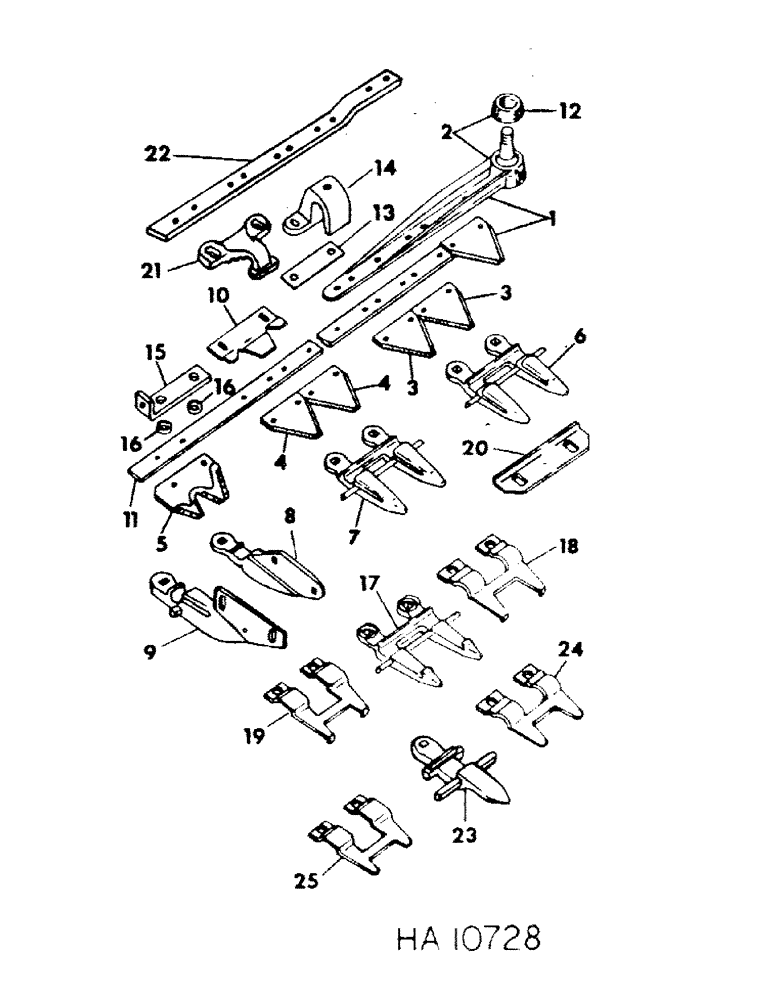

Схема запчастей Case IH SINGLE - (A-12) - SINGLE OVERSHOT AUGER HEADER, KNIFE AND GUARDS

Артикул

Название

Примечание

Количество

1

824506C94

KNIFE

ASSY, 12 ft w/chrome plated underserrated sections, for service order 827813C91 knife assy w/595648R1 guide 2-595213R1 shim and 2-609826R1 bolts required for first conversion only, consists of

1шт.

824708C1

BAR

1шт.

824594C91

END ASSY.

END ASSY

1шт.

823711C2

KNIFE SECTION

SECTION

4шт.

990325R91

RIVET

1шт.

990727R91

RIVET

7шт.

990719R91

RIVET

RIVET

7шт.

457607R2

KNIFE SECTION

SECTION

44шт.

148200C1

KNIFE SECTION

SECTION

1шт.

991014R91

KIT

RIVET

83шт.

824595C1

REINFORCEMENT

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING

1шт.

21782R1

WASHER

1шт.

1

827813C91

KNIFE ASSY

12 ft w/chrome plated underserrated sections, consists of

1шт.

825073C1

BAR

1шт.

824594C91

END ASSY.

END ASSY

1шт.

823711C2

KNIFE SECTION

SECTION

4шт.

990325R91

RIVET

1шт.

990727R91

RIVET

3шт.

104087

RIVET,But Hd, 1/4" x 1 1/4"

4шт.

14765R1

RIVET,Oval Hd, .203" x 15/16"

17шт.

457607R2

KNIFE SECTION

SECTION

44шт.

148200C1

KNIFE SECTION

SECTION

1шт.

991014R91

KIT

RIVET

73шт.

827733C1

REINFORCEMENT

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING

1шт.

21782R1

WASHER

1шт.

1

831606C93

KNIFE

ASSY, 12 ft w/chrome plated overserrated sections, for service order 827719C91 knife assy w/595648R1 guide 2-595 213 shim and 2-609826R1 bolts required for first conversion only, consists of

1шт.

824708C1

BAR

1шт.

824594C91

END ASSY.

END ASSY

1шт.

823713C2

KNIFE SECTION

SECTION

4шт.

990325R91

RIVET

1шт.

990727R91

RIVET

7шт.

990719R91

RIVET

RIVET

7шт.

596321R3

KNIFE SECTION

SECTION

44шт.

148200C1

KNIFE SECTION

SECTION

1шт.

991014R91

KIT

RIVET

83шт.

824595C1

REINFORCEMENT

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING

1шт.

21782R1

WASHER

1шт.

1

827719C91

KNIFE ASSY

12 ft w/chrome plated overserrated sections, consists of

1шт.

825073C1

BAR

1шт.

824594C91

END ASSY.

END ASSY

1шт.

823713C2

KNIFE SECTION

SECTION

4шт.

990325R91

RIVET

1шт.

990727R91

RIVET

3шт.

104087

RIVET,But Hd, 1/4" x 1 1/4"

4шт.

14765R1

RIVET,Oval Hd, .203" x 15/16"

17шт.

596321R3

KNIFE SECTION

SECTION

44шт.

148200C1

KNIFE SECTION

SECTION

1шт.

991014R91

KIT

RIVET

73шт.

827733C1

REINFORCEMENT

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING

1шт.

1

824705C94

KNIFE

ASSY, 14 ft w/chrome plated underserrated sections, for service order 827814C91 knife assy w/595648R1 guide 2-595213R1 shim and 2-609826R1 bolts required for first conversion only, consists of

1шт.

824708C1

BAR

1шт.

824594C91

END ASSY.

END ASSY

1шт.

823711C2

KNIFE SECTION

SECTION

4шт.

990325R91

RIVET

1шт.

990727R91

RIVET

7шт.

990719R91

RIVET

RIVET

7шт.

457607R2

KNIFE SECTION

SECTION

52шт.

148200C1

KNIFE SECTION

SECTION

1шт.

991014R91

KIT

RIVET

99шт.

824595C1

REINFORCEMENT

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING

1шт.

21782R1

WASHER

1шт.

1

827814C91

KNIFE ASSY

14 ft w/chrome plated underserrated sections, consists of

1шт.

825073C1

BAR

1шт.

824594C91

END ASSY.

END ASSY

1шт.

823711C2

KNIFE SECTION

SECTION

4шт.

990325R91

RIVET

1шт.

990727R91

RIVET

3шт.

104087

RIVET,But Hd, 1/4" x 1 1/4"

4шт.

14765R1

RIVET,Oval Hd, .203" x 15/16"

17шт.

457607R2

KNIFE SECTION

SECTION

52шт.

148200C1

KNIFE SECTION

SECTION

1шт.

991014R91

KIT

RIVET

89шт.

827733C1

REINFORCEMENT

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING

1шт.

21782R1

WASHER

1шт.

1

831607C93

KNIFE

ASSY, 14 ft w/chrome plated overserrated sections, for service order 827721C91 knife assy w/595648R1 guide 2-595213R1 shim and 2-609826R1 bolts required for first conversion only, consists of

1шт.

824708C1

BAR

1шт.

824594C91

END ASSY.

END ASSY

1шт.

823713C2

KNIFE SECTION

SECTION

4шт.

990325R91

RIVET

1шт.

990727R91

RIVET

7шт.

990719R91

RIVET

RIVET

7шт.

596321R3

KNIFE SECTION

SECTION

52шт.

148200C1

KNIFE SECTION

SECTION

1шт.

991014R91

KIT

RIVET

99шт.

824595C1

REINFORCEMENT

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING

1шт.

1

827721C91

KNIFE ASSY

14 ft w/chrome plate overserrated sections, consists of

1шт.

item # 1- 827721c91 is a 14-1/2 ft knife

1шт.

825073C1

BAR

1шт.

824594C91

END ASSY.

END ASSY

1шт.

823713C2

KNIFE SECTION

SECTION

4шт.

990325R91

RIVET

1шт.

990727R91

RIVET

3шт.

104087

RIVET,But Hd, 1/4" x 1 1/4"

4шт.

14765R1

RIVET,Oval Hd, .203" x 15/16"

17шт.

596321R3

KNIFE SECTION

SECTION

52шт.

148200C1

KNIFE SECTION

SECTION

1шт.

991014R91

KIT

RIVET

89шт.

827733C1

REINFORCEMENT

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING

1шт.

2

824594C91

END ASSY.

END ASSY, knife head w/step, replaces 824812C94 end assy w/o step, consists of (1) head (NSS), (1) nut 102903H1, (1) seal 194690R1

1шт.

102903H1

NUT

5/8-18 slotted-hex

1шт.

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28 45 deg lub

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

21782R1

WASHER

.656 x 1.500 x .054

1шт.

3

823711C2

KNIFE SECTION

SECTION, chrome pltd underserrated

1шт.

3

823713C2

KNIFE SECTION

SECTION, chrome pltd overserrated

1шт.

990727R91

RIVET

1/4 x 1-1/8 button hd small solid - 1 lb pkg

1шт.

990719R91

RIVET

RIVET, no. 6 x 7/8 pln o/hd, 1 lp pkg

7шт.

990323R91

PACKAGE

RIVET, 1/4 x 3/4 button hd small solid, 1 lb pkg

1шт.

990325R91

RIVET

1/4 x 1 button hd small solid, 1 lb pkg

1шт.

104087

RIVET,But Hd, 1/4" x 1 1/4"

1/4 x 1-1/4 pln but/hd sol

4шт.

14765R1

RIVET,Oval Hd, .203" x 15/16"

no. 6 x 15/16 pln o/hd

17шт.

4

457607R2

KNIFE SECTION

SECTION, chrome pltd underserrated

1шт.

4

596321R3

KNIFE SECTION

SECTION, chrome pltd overserrated, 44 used 12 ft, 52 used 14 ft

1шт.

991014R91

KIT

RIVET, 5-1/2 x 9/16 small ov hd, 2 per section , 1 lb pkg

1шт.

990719R91

RIVET

RIVET, no. 6 x 7/8 pln o/hd as required

1шт.

5

467456R1

KNIFE SECTION

SECTION, chrome pltd underserrated triple RH, for service order 148200C1 section

1шт.

5

148200C1

KNIFE SECTION

SECTION, chrome pltd overserrated double RH

1шт.

991014R91

KIT

RIVET, 5-1/2 x 9/16 small ov hd, 1 lb pkg

2шт.

6

483500R3

GUARD

knife double left end

3шт.

REF: #6 - 483500R3 IS A STANDARD GUARD, NOWS THERE'S A DOUBLE HEAT TREATED GUARD PART NUMBER IS 187346A1.

1шт.

592722R1

BOLT,7/16"-14 x 1 5/16", G5

7/16-14 x 1-5/16 type 5 no. 3 plow

3шт.

592724R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1 9/16", Gr 5

BOLT, 7/16-14 x 1-9/16 type 5 no. 3 plow

1шт.

609826R1

BOLT,7/16"-14 x 1 3/4", G5

7/16-14 x 1-3/4 type 5 no. 3 plow

1шт.

18696R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/2", Gr 2

BOLT, 7/16-14 x 1-1/2 type 1 carr

1шт.

271501

SOCKET

NUT, 7/16-14 hex

6шт.

7

613838R2

GUARD

knife double, 21 used 12 ft, 25 used 14 ft

1шт.

REF: #7 - 613838R2 IS A STANDARD GUARD, NOWS THERE'S A DOUBLE HEAT TREATED GUARD PART NUMBER IS 187350A1.

1шт.

592722R1

BOLT,7/16"-14 x 1 5/16", G5

7/16-14 x 1-5/16 type 5 no. 3 plow, 18 used 12 ft, 22 used 14 ft

1шт.

592724R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1 9/16", Gr 5

BOLT, 7/16-14 x 1-9/16 type 5 no. 3 plow, 24 used 12 ft, 28 used 14 ft

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14, 1 per bolt

1шт.

8

540603R2

FINGER

GUARD, knife single RH prior to serial no. 1101

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8-16 x 1-1/4 carriage

2шт.

609826R1

BOLT,7/16"-14 x 1 3/4", G5

7/16-14 x 1-3/4 type 5 no. 3 plow

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

271501

SOCKET

NUT, 7/16-14 hex

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

9

831487C2

GUARD

knife single RH serial no. 1101 and since

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 crg bolt

1шт.

18696R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/2", Gr 2

BOLT, 7/16-14 x 1-1/2 type 1 crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

NLS

NO LONGER SERVICED

NUT, 3/8-16 hex

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

10

613842R2

GUIDE

HOLDER, knife, 9 used 12 ft, 11 used 14 ft

1шт.

11

824708C1

BAR

knife back w/heat treatment at head mtg end, for service order 825073C1 bar w/827733C1 reinforcement 595648R1 guide, 2-595213R1 shim and 2-609826R1 bolt, required for first conversion only

1шт.

11

825073C1

BAR

knife back w/o heat treatment at head mtg end

1шт.

12

194690R1

SEAL ASSY.

SEAL, knife head end

1шт.

13

595213R1

STRIP

guide shim

1шт.

14

824981C1

GUIDE

knife high arch LH

1шт.

609826R1

BOLT,7/16"-14 x 1 3/4", G5

7/16-14 x 1-3/4 type 5 no. 3 plow

2шт.

271501

SOCKET

NUT, 7/16-14 hex

2шт.

15

828061C1

ANGLE

RH end guard

1шт.

609826R1

BOLT,7/16"-14 x 1 3/4", G5

7/16-14 x 1-3/4 type 5 no. 3 plow

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex hd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 hex

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

619856R1

WASHER

.406 x 1.000 x .056

1шт.

16

353232R1

SPACER,3/8" Pipe x .344

WASHER, RH end guard angle spacer

2шт.

17

58600C1

GUARD ASSY.

GUARD, strut, 21 used 12 ft, 25 used 14 ft, for use in extremely rocky conditions

1шт.

18

58601C1

CLIP

low arch, strut, 1 per guard, for use in extremely rock conditions

1шт.

19

58602C1

CLIP

high arch, strut, for used in extremely rock conditions

4шт.

20

MC468

PLATE ASSY.

PLATE, wear, for strut & stub guards

1шт.

21

595648R1

GUIDE

knife high arch RH, not for use w/strut or stub guards

2шт.

22

824595C1

REINFORCEMENT

knife back, 42 in. length, for service order 827733C1 reinforcement w/595648C1 guide, 2-595213R1 shim and 2-609826R1 bolt

1шт.

22

827733C1

REINFORCEMENT

knife back 32 in. length

1шт.

23

472717R2

GUARD

single stub 46 used 12-1/2 ft 54 used 14-1/2 ft, for use when excessive plugging of standard guards occurs

1шт.

24

101831C2

CLIP

low arch, stub, 1 per two guards, for use when excessive plugging of standard guards occurs

1шт.

25

101832C2

CLIP

high arch, stub, for use when excessive plugging of standard guards occurs

4шт.

Выбрано товаров: 184
