Запчасти Case IH SINGLE (A-10) - SINGLE OVERSHOT AUGER HEADER, KNIFE DRIVE CONNECTIONS

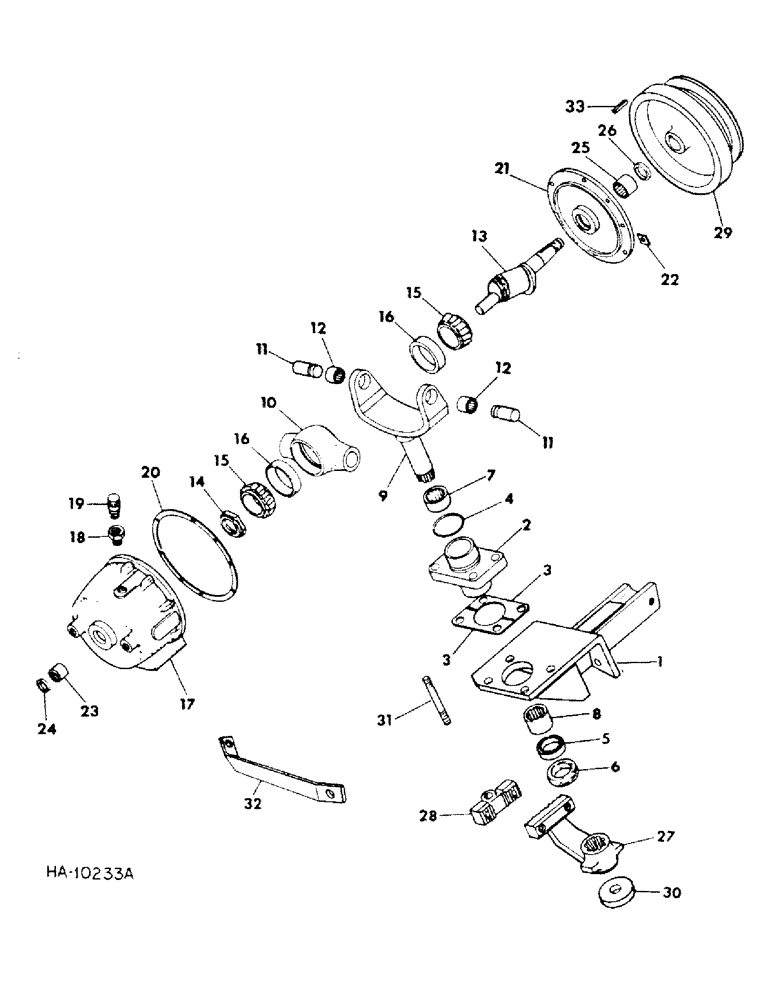

Схема запчастей Case IH SINGLE - (A-10) - SINGLE OVERSHOT AUGER HEADER, KNIFE DRIVE CONNECTIONS

Артикул

Название

Примечание

Количество

117020C91

DRIVE

ASSY, knife, prior to serial no. 1101

1шт.

136323C91

GEAR

DRIVE ASSY, knife, serial no. 1101 and since, consists of all parts listed unless otherwise noted

1шт.

136323C92R

REMAN-WOBBLE BOX

Gearbox - Sickle Drive/Wobble Box - Models IH Windrow Headers, 1190, 1490, 1590

1шт.

1

828949C2

SUPPORT

ASSY, knife drive lower, not part of drive assembly

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

5шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

20601R1

WASHER

.531 x 1.250 x .105

2шт.

178374R1

WASHER

.531 x 1.250 x .054

3шт.

2

62524C1

HOUSING

yoke bearing, prior to serial no. 1101 with 1/2 inch bolt holes, bolts and washers not part of drive assembly

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 hex-hd

1шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

1/2-13 x 2-1/4 hex-hd or

4шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1/2-13 x 2-1/2 hex-hd

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

2

136324C1

HOUSING

yoke bearing, serial no. 1101 and since with 5/8 inch bolt holes, bolts and washers not part of drive assembly

1шт.

NLS

NO LONGER SERVICED

5/8-11 x 1-1/2 hex-hd

1шт.

831675C2

BOLT,5/8" - 11 x 2 3/4", Gr 8

5/8 x 2-3/4 hex-hd dryloc

4шт.

589068R1

WASHER

.656 x 1.250 x .090

4шт.

3

829374C2

BAR

shim, use as required, not part of drive assembly

8шт.

4

21552R1

O-RING,2.609" ID x 2.887" OD x 0.139"

yoke bearing housing

1шт.

5

101295C1

OIL SEAL

housing oil

1шт.

6

116955C1

GASKET,41.27mm ID x 76.2mm OD x 14.22mm Thk

WASHER, 1.625 x 3.000 x .56 felt

1шт.

7

205369R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 15.88mm W

BEARING, housing inner

1шт.

8

166957R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 31.75mm W

BEARING, housing outer

1шт.

9

101301C1

SHIFTER FORK

YOKE

1шт.

26323R1

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 8

3/4-10 x 1-1/2 prev torque PHC type 8

1шт.

10

62520C2

TRUNNION

1шт.

617939R1

PIN,5/16" x 1 1/2", Coiled

2шт.

11

62522C1

STUD

trunnion

2шт.

12

550839R91

BEARING, NEEDLE

BEARING, trunnion stud

2шт.

13

101300C1

SHAFT

wobble

1шт.

414089C1

FLANGE NUT,5/8" - 18

NUT, 5/8-18 hex lock

1шт.

14

62521C2

NUT

stake

1шт.

15

364463C91

BEARING ASSY,2.0005" ID x 3.2283" OD x 0.875"

CONE, wobble shaft bearing

2шт.

16

364462C1

BEARING CUP,82.55mm OD x 16.51mm W

CUP, wobble shaft bearing

2шт.

17

62523C1

HOUSING

wobble shaft-prior to serial no. 1101 with 1/2 inch bolt holes

1шт.

17

136325C2

HOUSING

wobble shaft, serial no. 1101 and since with 5/8 inch bolt holes

1шт.

445673

PIPE PLUG,Sq Hd, 3/8"-18 NPTF

PLUG, 3/8-14 pipe

3шт.

18

444333

BUSHING

reducer 3/8 x 1/8 pipe, not part of drive assembly

1шт.

19

152127H1

BREATHER,1/8"-27, Short

not part of drive assembly

1шт.

20

62525C1

GASKET

cover

1шт.

21

62526C1

COVER

housing

1шт.

117045C1

LOCK BOLT

BOLT, 3/8-16 x 1 hex-hd dryloc

8шт.

22

62528C1

BAR, cover bolt retainer, not part of drive assembly, for service order 117045C1 bolt

8шт.

23

101293C91

NEEDLE BEARING,Needle, 22.21mm ID x 47.75mm OD x 25.4mm W

BEARING, wobble shaft inner

1шт.

24

544667R92

SEAL

SEAL, inner oil

1шт.

25

143996H1

NEEDLE BEARING

BEARING, wobble shaft outer

1шт.

26

62527C1

OIL SEAL,25.4mm ID x 41.35mm OD x 6.5mm Thk

outer oil

1шт.

27

62529C1

CRANK

knife, not part of drive assembly

1шт.

24876R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

2шт.

121-574

WASHER, 5/8 lock

2шт.

67872C1

WASHER

.656 x 1.250 x .250 pl

2шт.

28

101296C2

NOZZLE HOLDER

HOLDER, ball stud, not part of drive assembly

1шт.

29

828960C2

PULLEY

knife drive, not part of drive assembly

1шт.

30

116954C1

WASHER

.780 x 2.40 x .31

1шт.

31

636433R1

STUD

housing, for use on headers serial no. 886 to 1100 bolts used serial 865 and below

4шт.

31

831675C2

BOLT,5/8" - 11 x 2 3/4", Gr 8

5/8 x 2-3/4 hex-hd dryloc, serial no. 1101 and above

4шт.

214442

NUT,1/2"-20, G8

1/2-20 hex type 8

4шт.

828388C1

BELLEVILLE WASHER

Belleville

4шт.

32

(Not used this application)

1шт.

33

Q53

KEY,1/4" Sq x 1", Par

1шт.

Выбрано товаров: 62
