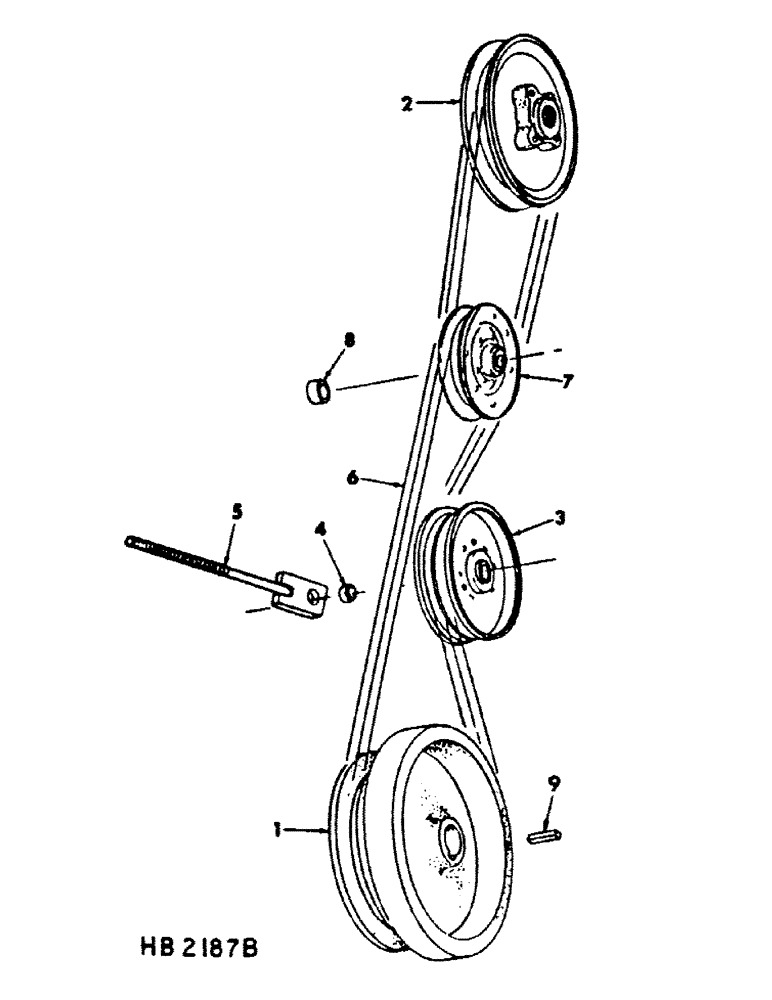

Запчасти Case IH SINGLE (A-09) - SINGLE OVERSHOT AUGER HEADER, KNIFE DRIVE

1

828960C2

PULLEY

knife drive, for connecting parts refer to knife drive connections

1шт.

2

828965C1

PULLEY

knife drive, for connecting parts refer to header drive

1шт.

3

607443R91

PULLEY

knife drive tightener

1шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

1/2-13 x 2-1/4 hex-hd

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20601R1

WASHER

.531 x 1.250 x .105

1шт.

178374R1

WASHER

.531 x 1,250 x .054

1шт.

4

610395R1

SPACER,1/2" X-Strng Pipe x 3/8"

pulley

1шт.

5

829938C2

BOLT,Adj, 11.2"

tightener pulley adj

1шт.

120376

NUT,5/16"-18, G5

2шт.

20601R1

WASHER

.531 x 1.250 x .105

2шт.

6

153301C1

V-BELT,0.88" W x 115.87" L

Knife Drive, Replaces 829413C1 0.88" W x 115.87" L

1шт.

7

574051R91

PULLEY

knife drive tightener

1шт.

608812R1

CARRIAGE BOLT,5/8" - 11 x 3 1/4", Grade 5

BOLT, 5/8 x 3-1/4 crg type 5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

8

575098R1

SPACER,16.7mm ID x 22.23mm OD x 15.9mm L

pulley

1шт.

9

Q53

KEY,1/4" Sq x 1", Par

1шт.
