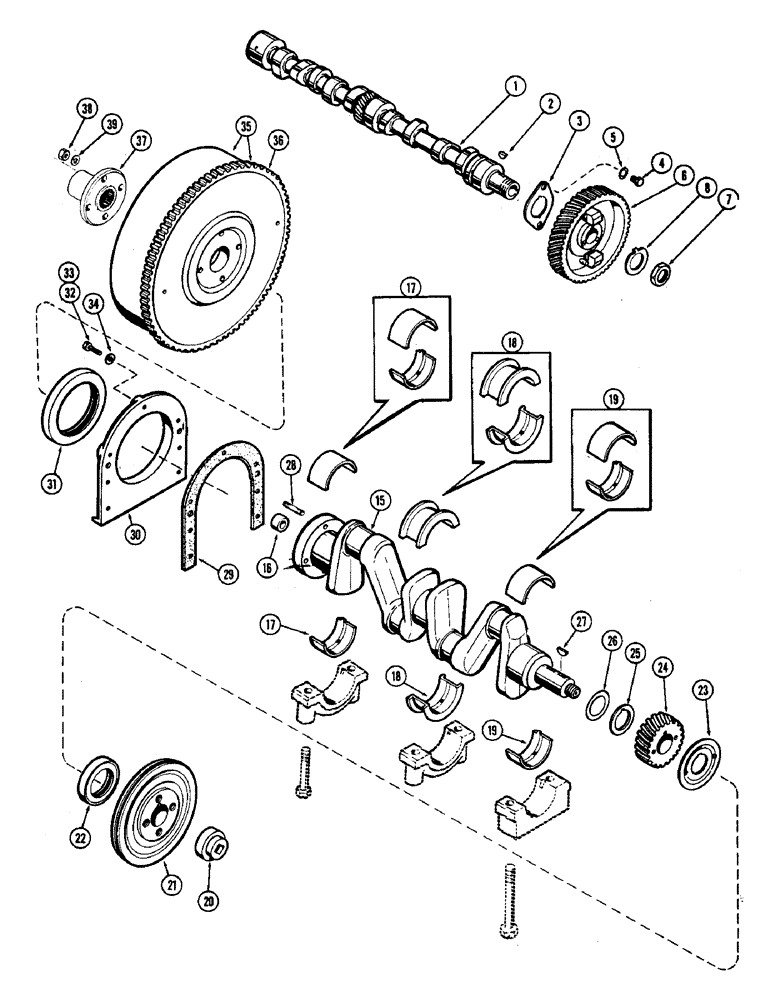

Запчасти Case IH 950 (014) - CAMSHAFT, CRANKSHAFT AND FLYWHEEL

1

G2055

CAMSHAFT

- engine (Replaced by G2049)

1шт.

2

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Timing gear #6, 5/32" x 5/8"

1шт.

3

A29290

PLATE

- thrust, camshaft

1шт.

4

A30056

SCREW,Hex, 5/16" - 18 x 1/2"

- thrust plate (5/16 x 1/2" N.C. spec.)

2шт.

5

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

6

G37066

GEAR

ASSY. - camshaft, w/governor weights

1шт.

7

A30063

NUT

- camshaft gear retainer

1шт.

8

A29438

LOCK NUT

WASHER - camshaft nut (Tab)

1шт.

15

A37210

CRANKSHAFT

- w/int. spline CRANKSHAFT AND FLYWHEEL

1шт.

15

G11183

CRANKSHAFT

ASSY. - w/bushing (Can use A37210) CRANKSHAFT AND FLYWHEEL

1шт.

16

A30024

BUSHING,15.98mm ID x 20.73mm OD x 22.23mm L

- pilot (5/8 x 13/16 x 7/8") (Used w/G11183 crankshaft) CRANKSHAFT AND FLYWHEEL

1шт.

17

G37051

KIT

LINER KIT - rear bearing (Std.) CRANKSHAFT AND FLYWHEEL

1шт.

17

G37052

KIT

LINER KIT - rear bearing (-.002") CRANKSHAFT AND FLYWHEEL

1шт.

17

G37053

KIT

LINER KIT - rear bearing (-.020") CRANKSHAFT AND FLYWHEEL

1шт.

17

G37054

KIT

LINER KIT - rear bearing (-.040") CRANKSHAFT AND FLYWHEEL

1шт.

18

G37047

KIT

LINER KIT - center bearing (Std.) CRANKSHAFT AND FLYWHEEL

1шт.

18

G37048

KIT

LINER KIT - center bearing (-.002") CRANKSHAFT AND FLYWHEEL

1шт.

18

G37049

KIT

LINER KIT - center bearing (-.020") CRANKSHAFT AND FLYWHEEL

1шт.

18

G37050

KIT

LINER KIT - center bearing (-.040") CRANKSHAFT AND FLYWHEEL

1шт.

19

G37043

KIT

LINER KIT - front bearing (Std.) CRANKSHAFT AND FLYWHEEL

1шт.

19

G37044

KIT

LINER KIT - front bearing (-.002") CRANKSHAFT AND FLYWHEEL

1шт.

19

G37045

KIT

LINER KIT - front bearing (-.020") CRANKSHAFT AND FLYWHEEL

1шт.

19

G37046

KIT

LINER KIT - front bearing (-.040") CRANKSHAFT AND FLYWHEEL

1шт.

20

A35673

NUT

- pulley retaining CRANKSHAFT AND FLYWHEEL

1шт.

21

G11342

X

PULLEY - fan & generator drive CRANKSHAFT AND FLYWHEEL

1шт.

22

A36609

OIL SEAL

- oil, front crankshaft (2-1/8" x 3" x 1/2") CRANKSHAFT AND FLYWHEEL

1шт.

23

A29259

SLINGER

- oil CRANKSHAFT AND FLYWHEEL

1шт.

24

A29263

GEAR

- crankshaft (Replaced by A39288) CRANKSHAFT AND FLYWHEEL

1шт.

25

A29294

BUSHING

WASHER - thrust, crankshaft CRANKSHAFT AND FLYWHEEL

1шт.

26

A29293

SHIM,.010" Thk

Thrust washer, Crankshaft and flywheel .010" Thk

1шт.

27

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - timing gear & pulley (1/4 x 1-1/6" Hi-Pro) CRANKSHAFT AND FLYWHEEL

2шт.

28

G11374

STUD

- flywheel to crank (7/16" x 2-1/4") CRANKSHAFT AND FLYWHEEL

4шт.

29

G46802

GASKET

- rear seal retainer (Replaced by A38196) CRANKSHAFT AND FLYWHEEL

1шт.

30

G2017

RETAINER

- rear crankshaft seal (Repl. by A38390) CRANKSHAFT AND FLYWHEEL

1шт.

31

A36610

OIL SEAL

- oil, rear retainer (4 x 5 x 1/2") CRANKSHAFT AND FLYWHEEL

1шт.

32

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Crankshaft and flywheel Hex, 1/4"-20 x 3/4", G5, Full Thd

4шт.

33

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Crankshaft and flywheel Hex, 1/4"-20 x 1", G5

3шт.

34

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Crankshaft and flywheel 1/4"

7шт.

35

G37061

FLYWHEEL ASSY. - crankshaft CRANKSHAFT AND FLYWHEEL

1шт.

36

G11710

GEAR

- ring, flywheel (135T) CRANKSHAFT AND FLYWHEEL

1шт.

37

F3408

HUB - adapter, flywheel CRANKSHAFT AND FLYWHEEL

1шт.

38

25-117

NUT,7/16"-20, G5

- hex., 7/16" N.F. CRANKSHAFT AND FLYWHEEL

4шт.

39

92-7

LOCK WASHER,7/16"

crankshaft and flywheel 7/16"

4шт.
