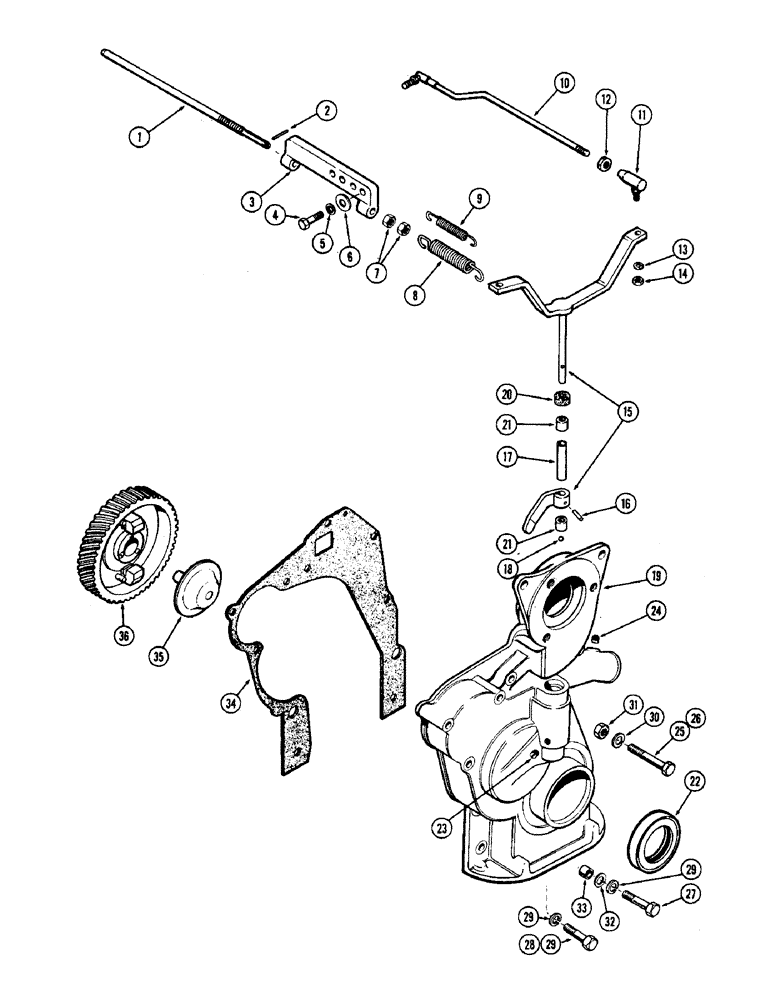

Запчасти Case IH 950 (012) - THROTTLE - GOVERNOR AND TIMING COVER

1

A36369

ROD

- governor control

1шт.

2

138-51

LOCK PIN,1/8" x 3/8", Slotted

PIN, 1/8" x 3/8", Slotted

1шт.

3

G2133

GUIDE

- governor control rod

1шт.

4

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

5

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

6

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 5/64"

2шт.

7

131-412

NUT - hex., 7/16" N.F. pal

2шт.

8

G48511

SPRING

- outer, engine speed control

1шт.

9

G48514

SPRING

- inner, engine speed control

1шт.

10

G45222

ROD

ASSY. -, Serial Range: governor-carburetor

1шт.

11

A10329

BALL JOINT,1/4" - 28 x 1"

JOINT ASSY. - ball

1шт.

12

25-114

NUT,1/4"-28, G5

- hex., 1/4" N.F.

1шт.

13

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

14

25-114

NUT,1/4"-28, G5

- hex., 1/4" N.F.

2шт.

15

A30125

SHAFT

LEVER & ARM ASSY. - governor control (Repl. by A39095)

1шт.

16

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

17

A30012

SPACER

- thrust, governor shaft

1шт.

18

211-5

BALL,3/16" Dia

- thrust, . 3/16" Dia

1шт.

19

A36979

COVER

ASSY. - timing gear (Replaces A35905)

1шт.

20

A30011

SEAL

- dust, governor shaft

1шт.

21

A35822

NEEDLE BEARING,Needle, 9.52mm ID x 14.29mm OD x 12.7mm W

BEARING - needle, governor shaft

2шт.

22

A36609

OIL SEAL

- oil, crankshaft front

1шт.

23

A30016

FITTING

PLUG - housing, 1/8" P.T. sltd. hd.

1шт.

24

221-1013

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - pipe, 3/8" sq. hd.

1шт.

25

15-652

X

BOLT - 3/8 x 3-1/4" N.C. hex.

3шт.

26

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

27

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

28

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C hex.

2шт.

29

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

30

92-6

LOCK WASHER,3/8"

10шт.

31

25-106

NUT,3/8"-16, G5

- hex., 3/8" N.C.

3шт.

32

195-25

WASHER,3/8"

- plain, 13/32 x 13/16 x 1/16"

5шт.

33

A29442

RING

- dowel, 13/32 x 9/16 x 5/8"

2шт.

34

A38226

GASKET

- timing cover mounting

1шт.

35

A29957

SHAFT

ASSY. - governor

1шт.

36

G37066

GEAR

ASSY. - camshaft, w/gov. weights

1шт.
