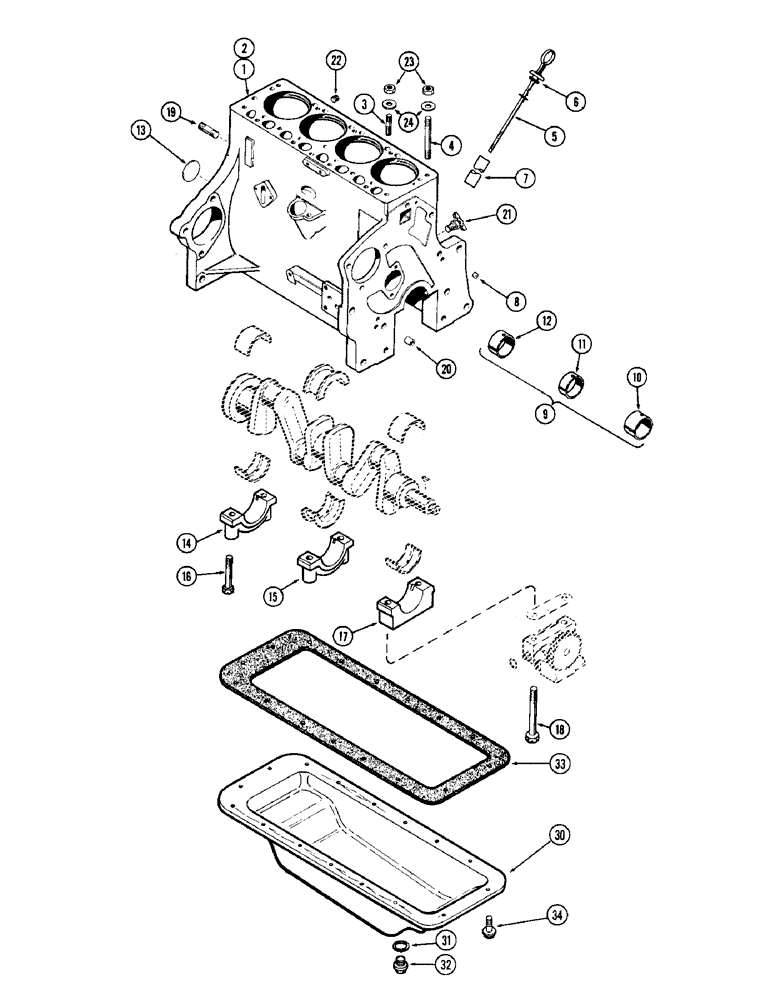

Запчасти Case IH 950 (011A) - CYLINDER BLOCK ASSEMBLY, FOR BRACKET MTD. OIL FILTER, OIL PAN

1

A40801

BLOCK ASSY. - cylinder, short (Incl. stripped block assy., crankshaft assy., camshaft w/gear, piston and rod assy., oil pump, dipstick and rear crank seal assy. & tappets) (Repl. by A37830)

1шт.

2

A40584

X

BLOCK ASSY. - cylinder, stripped (Use A37828)

1шт.

3

A30057

STUD

- cylinder head mounting (1/2 x 2")

9шт.

4

A29436

STUD

- cylinder head mounting (1/2 x 5-7/8")

5шт.

5

A37148

DIPSTICK

ASSY. - oil level gauge

1шт.

6

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - dipstick

2шт.

7

A37149

TUBE

- socket, dipstick

1шт.

8

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

- oil gallery, 1/2" sckt. hd. pipe

3шт.

9

A30346

BUSHING

KIT - camshaft (Can use A41225)

1шт.

10

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, front (1-5/16" wide)

1шт.

11

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, center (23/32" wide)

1шт.

12

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, rear (1-3/16" wide)

1шт.

13

A39241

PLUG,Exp, 2.12" dia

- rear camshaft hole (2-1/8" dia.)

1шт.

14

G2037

CAP

- main brg., crankshaft rear

1шт.

15

G2036

CAP

- main brg., crankshaft center

1шт.

16

G49037

BOLT

- rear & center brg. cap (1/2 x 3" N.C. spec.)

4шт.

17

G2035

CAP

- main brg., crankshaft front

1шт.

18

G49059

BOLT

- front brg. cap & oil pump (1/2 x 4-3/4" N.C.)

2шт.

19

A29333

STUD

- cylinder block mounting (5/8 x 3")

2шт.

20

A29442

RING

- dowel, timing cover bolt

2шт.

21

217-103

COCK, DRAIN

VALVE - drain, cylinder block

1шт.

22

221-1849

PLUG

- pipe, 1/8" hex. socket

1шт.

23

A30021

NUT

- cyl. head studs, 1/2" N.F. hex., spec.

14шт.

24

G49404

WASHER

- cyl. hd. studs, 17/32 x 27/32 x 1/16"

14шт.

30

A36726

PAN

ASSY. - engine oil OIL PAN

1шт.

31

A27927

OIL PAN GASKET SET

- drain plug OIL PAN

1шт.

32

A14280

PLUG

- drain, oil pan

1шт.

33

NSS

NOT SOLD SEPARAT

GASKET - oil pan mounting (Order A40710, P. 20) OIL PAN

1шт.

34

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT - Sems, 5/16"-18 x 3/4" indented hex. hd. (w/washer) OIL PAN

16шт.
