(098) - SHIELDS FOR CANNING PEA SPECIAL, 10 FOOT HEADER WITH VG4D ENGINE

Запчасти Case IH 950 (098) - SHIELDS FOR CANNING PEA SPECIAL, 10 FOOT HEADER WITH VG4D ENGINE

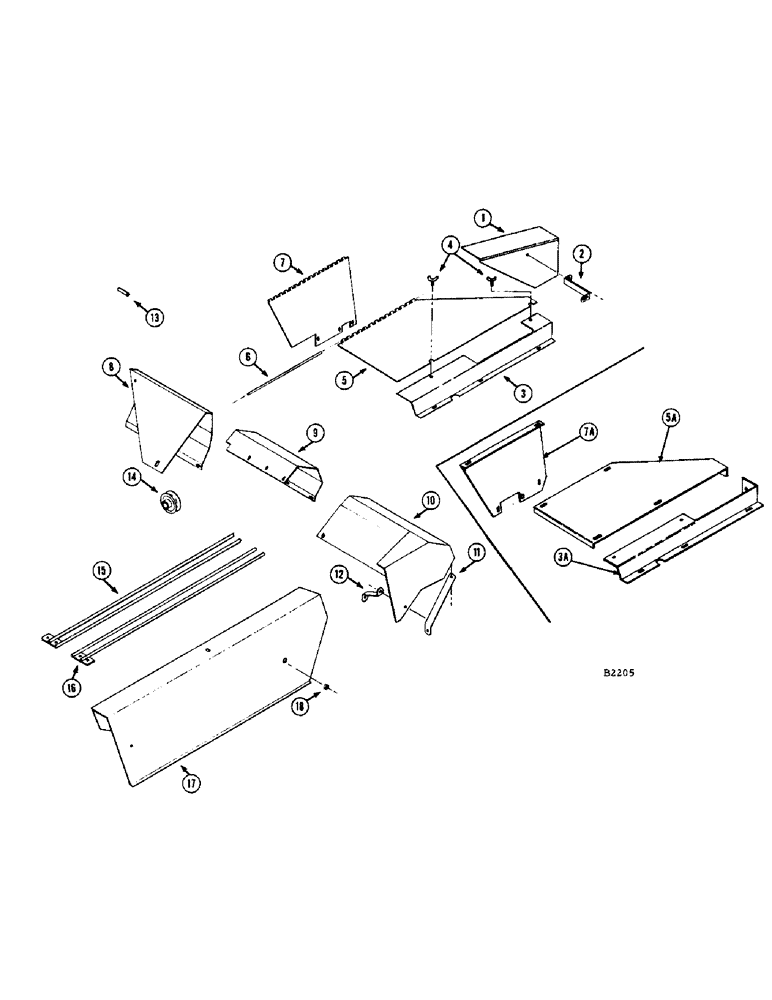

Схема запчастей Case IH 950 - (098) - SHIELDS FOR CANNING PEA SPECIAL, 10 FOOT HEADER WITH VG4D ENGINE
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

FH300491

SHIELD - engine drive

1шт.

2

FH300657

SUPPORT - shield

1шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Nut (129-102) and L.W. (192-20)

1шт.

3

FH300533

SHIELD - transmission, L.H. (VG4D only, before #8308701)

1шт.

3a

FH445726

SHIELD - trans., L.H. (VG4D and A126 #8308701 and after)

1шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, L.W. (192-20)

3шт.

4

FH702324

SCREW - thumb (Use w/FH300558)

2шт.

195-525

WASHER,3/8", SAE

- 13/16" x 13/32" x 16 ga.

2шт.

5

FH300558

COVER - transmission (VG4D only, before #8308701)

1шт.

5a

FH445718

COVER - transmission (VG4D and A126, #8308701 and after)

1шт.

6

FH326504

PIN - (Use w/FH300558 and FH300574)

1шт.

7

FH300574

SUPPORT - transmission (VG4D only, before #8308701)

1шт.

7a

FH445742

SUPPORT - transmission (VG4D and A126, #8308701 and after)

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Nut (129-103) and L.W. (192-21) Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

111-319

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G2

2шт.

195-525

WASHER,3/8", SAE

- 13/16" x 13/32" x 16 ga.

9шт.

8

FH300640

SHIELD - header drive

1шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Nut (129-102) and L.W. (192-20)

3шт.

195-521

WASHER,5/16", SAE

- 11/16" x 11/32" x 16 ga.

2шт.

9

FH300665

SHIELD - reel drive

1шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Nut (129-102) L.W. (192-20) and pl. wshr. (195-521)

2шт.

10

FH300467

SHIELD - reel drive

1шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Nut (129-102) L.W. (192-20) and pl. wshr. (195-521)

2шт.

11

FH300673

STRAP

1шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Nut (129-102) and L.W. (192-20)

2шт.

12

FH300681

BRACE

1шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Nut (129-102) and L.W. (192-20)

2шт.

13

P2456S

SPACER

1шт.

113-644

SCREW

BOLT - 3/8" x 2-3/4" N.C. hex. nut (129-103) and L.W. (192-21)

1шт.

14

FH200699

SHEAVE

1шт.

15

FH300608

ROD - windrow forming, L.H.

1шт.

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Nut (129-103) and L.W. (192-21) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

16

FH300616

ROD - windrow forming, R.H.

1шт.

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Nut (129-103) and L.W. (192-21) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

17

FH300624

SHIELD

1шт.

321-998

CASE - "Pea Special"

1шт.

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

Nut (129-102) and L.W. (192-20) Hex, 5/16"-18 x 1/2", G5, Full Thd

1шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Nut (129-102) and L.W. (192-20)

2шт.

18

C5427S

SPACER

1шт.
