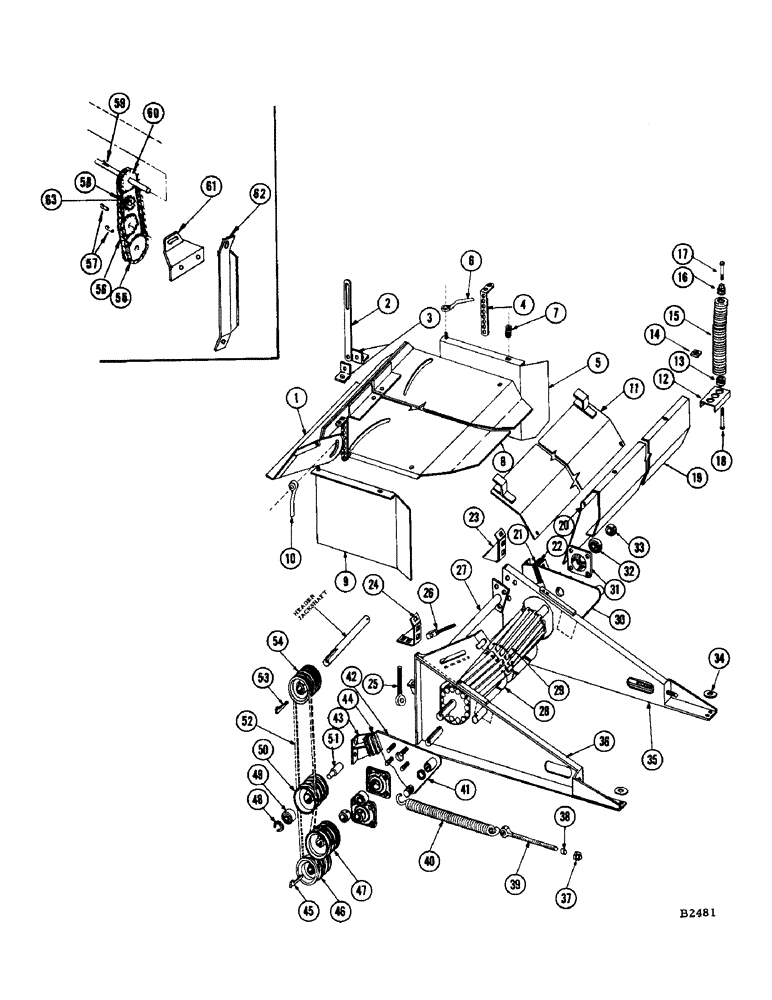

Запчасти Case IH 950 (094) - HAY CONDITIONER

1

FH222406

SHIELD - deflector

1шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Nut and L.W. Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Nut and L.W. Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Nut and L.W. Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

195-25

WASHER,3/8"

- flat 3/8"

8шт.

2

FH238204

STRAP - adjustment

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

and nut Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

195-25

WASHER,3/8"

- fl. and L.W. 3/8"

1шт.

3

FH238196

BRACKET - attaching

2шт.

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Nut and L.W. Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

4

FH267468

BRACKET - mounting

2шт.

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

and L.W. Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

5

FH315887

SHIELD - L.H. windrow forming

1шт.

6

FHO66423

NUT - lever, forming shield

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , and fl. wshr. 3/8"

2шт.

7

FHO58883

SPRING

- forming shield bolts

2шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Hex. and nut Hex, 3/8"-16 x 1 3/4", G5

2шт.

195-104

WASHER,3/8"

- flat 3/8"

2шт.

8

FH316349

DEFLECTOR

1шт.

9

FH315937

SHIELD - R.H., windrow forming

1шт.

10

FHO66472

NUT - lever, deflector

2шт.

111-204

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/4", G2

BOLT - 5/16" x 1-1/4" rhd. sq. nk. and fl. wshr.

2шт.

11

FH267401

EXTENSION - shield

1шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

and nut Hex, 5/16"-18 x 3/4", G5, Full Thd

6шт.

195-21

WASHER,5/16"

- flat and L.W. 5/16"

6шт.

12

FH287581

BRACKET

1шт.

13

FH299230

PLUG

1шт.

14

25-2810

SQUARE NUT

- 5/8" N.C. square

1шт.

15

FHO58826

SPRING - tension

1шт.

16

FH299222

PLUG

1шт.

17

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

and L.W. Hex, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

18

113-606

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

and L.W. Hex, 5/8"-11 x 1 1/4", G5, Full Thd

2шт.

19

FH267435

PLATE - filler

1шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

and nut Hex, 5/16"-18 x 3/4", G5, Full Thd

3шт.

195-21

WASHER,5/16"

- flat and L.W. 5/16"

3шт.

20

FH289439

COVER - shield

1шт.

21

FH235168

STOP - L.H., roll

1шт.

22

FHO27409

PAD

1шт.

FHO64014

RIVET

4шт.

23

FH267369

BRACKET - L.H. rear mounting

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Nut and L.W. Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2" x 1-3/4" N.C. hex., nut and L.W.

2шт.

195-33

WASHER,1/2"

- flat 1/2"

2шт.

24

FH267377

BRACKET - R.H., rear mounting. Same hardware as ref. 23 bracket

1шт.

25

FH238469

DRAWBOLT - stop adjustment

2шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex. and L.W.

2шт.

26

FH307256

DRAWBOLT

1шт.

27

FH267245

BRACE - cross

1шт.

28

FHO27599

ROLL - pressure

1шт.

29

FH412163

ROLL - crusher (Replaces FH267351 when stocks are exh.)

1шт.

FH267351

ROLL - crusher (Replaced by FH412163 when stocks are exh.)

1шт.

30

FH267260

ARM - pivot, L.H.

1шт.

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

and nut Hex, 5/8"-11 x 1 1/2", G5, Full Thd

1шт.

195-41

WASHER,5/8"

- flat and L.W. 5/8"

1шт.

31

FHO50435

FLANGE

HOUSING - bearing

4шт.

32

1925CSA

BEARING

1шт.

33

F62107

COLLAR

1шт.

34

FH240317

WASHER

2шт.

35

FH267302

PANEL - L.H. side

1шт.

73-824

SCREW

- 1/2" x 1-1/2" N.C. fl. hd. mach.

4шт.

36

FH267310

PANEL - R.H. side

1шт.

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

and nut Hex, 5/8"-11 x 1 1/2", G5, Full Thd

1шт.

195-41

WASHER,5/8"

- flat and L.W. 5/8"

1шт.

37

FHO26252

NUT

2шт.

38

Y3

SPACER

2шт.

39

FH235150

DRAWBOLT - tension adjustment

2шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

- 5/8" N.C. hex. jam

2шт.

40

FHO58537

SPRING - tension

2шт.

41

FHO52282

WASHER

2шт.

42

FH267278

ARM - R.H. pivot

1шт.

73-824

SCREW

- 1/2" x 1-1/2" N.C. fl. hd. mach.

4шт.

43

FH235176

STOP - R.H., roll

1шт.

44

DHO27409

PAD

1шт.

FHO64014

RIVET

4шт.

45

FHO61796

KEY - gib

2шт.

46

FH279257

SHEAVE - driven, drives pressure roll (See ref. 55)

1шт.

47

FH279240

SHEAVE - driven, drives crusher roll (See ref. 56)

1шт.

48

A31078

SNAP RING,2.062", Int, #206

1шт.

49

N4651

BALL BEARING,0.9843" ID x 2.0472" OD x 0.5906"

BEARING

1шт.

50

FH267484

SHEAVE - idler

1шт.

13-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- 5/8" x 4" N.C. hex. and nut

1шт.

95-10

WASHER,5/8"

- flat and L.W. 5/8"

1шт.

51

FH289785

SPACER

1шт.

52

FH267500

SET OF BELTS

SET OF 4 BELTS (Matched), Drive

1шт.

53

FHO61739

KEY

- gib

1шт.

54

FH267492

SHEAVE - drive, drives hay conditioner (See ref. 60)

1шт.

55

FHO85977

SPROCKET - (28T) driven, pressure roll

1шт.

56

FHO85969

SPROCKET - (23T) driven, drives crusher roll

1шт.

57

FHO61432

KEY

- gib, roller sprockets

2шт.

59

FHO61622

KEY

- gib

1шт.

60

FHO86553

SPROCKET - (20T) drives hay conditioner

1шт.

61

FH389353

BRACKET - tightener

1шт.

62

FH389361

BRACE

1шт.

63

FHO87726

SPROCKET ASSY.

SPROCKET - (15T) idler

1шт.
