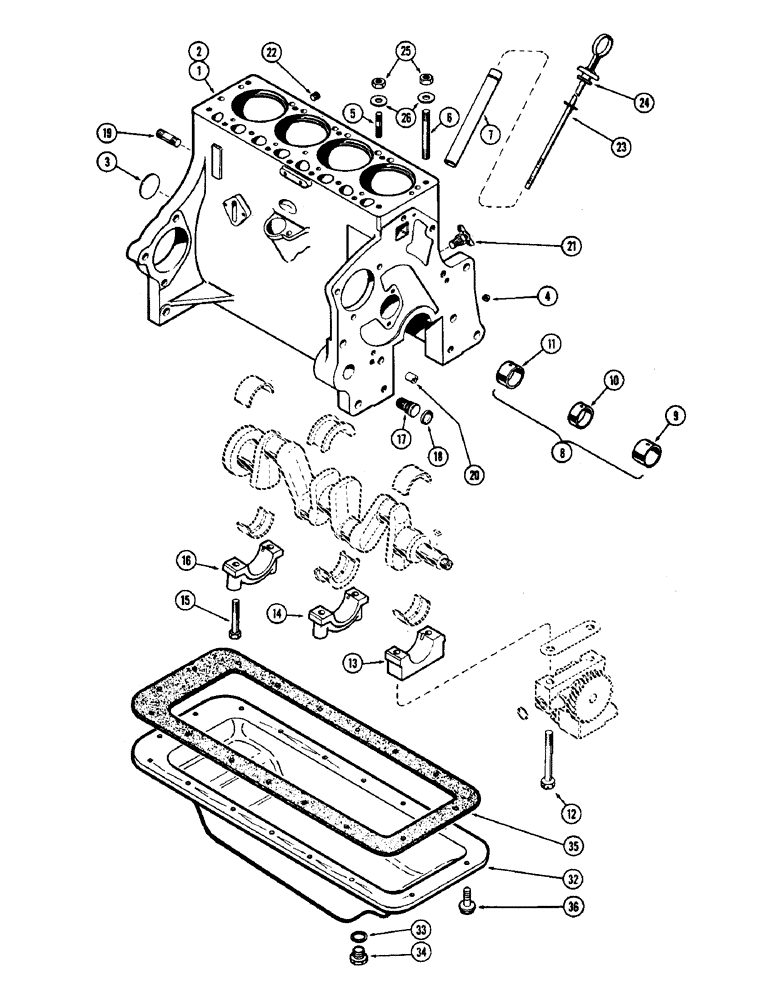

Запчасти Case IH 950 (010) - CYLINDER BLOCK ASSEMBLY, FOR FLANGE MTD. OIL FILTER, OIL PAN

1

A37830

BLOCK ASSY. - cylinder, short (Incl. stripped block assy., crankshaft assy., camshaft w/gear, piston and rod assy., oil pump, dip stick and rear crank seal assy. & tappets)

1шт.

2

A37828

SKELETON ENGINE

BLOCK ASSY. - cylinder stripped

1шт.

3

A39241

PLUG,Exp, 2.12" dia

- rear camshaft hole (2-1/8" dia.)

1шт.

4

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

- oil gallery (1/4" P.T., ctsk. sckt. hd.)

3шт.

5

A30057

STUD

- cylinder head mounting (1/2 x 2")

9шт.

6

A29436

STUD

- cylinder head mounting (1/2 x 5-7/8")

5шт.

7

A37149

TUBE

- socket, dipstick

1шт.

8

A41225

KIT

BUSHING SET - camshaft (Pre-sized)

1шт.

9

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, front (1-5/16" wide)

1шт.

10

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, center (23/32" wide)

1шт.

11

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, rear (1-3/16 wide)

1шт.

12

G49059

BOLT

- front brg. cap & oil pump (1/2 x 4-3/4" N.C.)

2шт.

13

G2035

CAP

- main brg., crankshaft front

1шт.

14

G2036

CAP

- main brg., crankshaft center

1шт.

15

G49037

BOLT

- rear & center brg. cap (1/2 x 3" N.C. spec.)

4шт.

16

G2037

CAP

- main brg., crankshaft rear

1шт.

17

A153552

ADAPTER

- oil filter

1шт.

18

A37207

X

PLUG - oil filter hole (1" cup type) (Repl. by 41-1016)

1шт.

19

A29333

STUD

- cylinder block mounting (5/8 x 3")

2шт.

20

A29442

RING

- dowel, timing cover hole

2шт.

21

217-103

COCK, DRAIN

VALVE - drain, cylinder block

1шт.

22

221-850

PLUG,Hex Soc, 1/16"-27

- pipe, 1/16" hex. socket

1шт.

23

A37148

DIPSTICK

ASSY. - oil level gauge

1шт.

24

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - dipstick

2шт.

25

A30021

NUT

- cyl. head studs, 1/2" N.F. hex., spec.

14шт.

26

G49404

WASHER

- cyl. head studs (17/32 x 27/32 x 1/16")

14шт.

32

A36726

PAN

ASSY. - engine oil OIL PAN

1шт.

33

A27927

OIL PAN GASKET SET

- drain plug OIL PAN

1шт.

34

A14280

PLUG

- drain, oil pan

1шт.

35

NSS

NOT SOLD SEPARAT

GASKET - oil pan mounting (Order A40710, P. 20) OIL PAN

1шт.

36

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT - Sems, 5/16"-18 x 3/4" indented hex. hd. (w/washer) OIL PAN

16шт.
