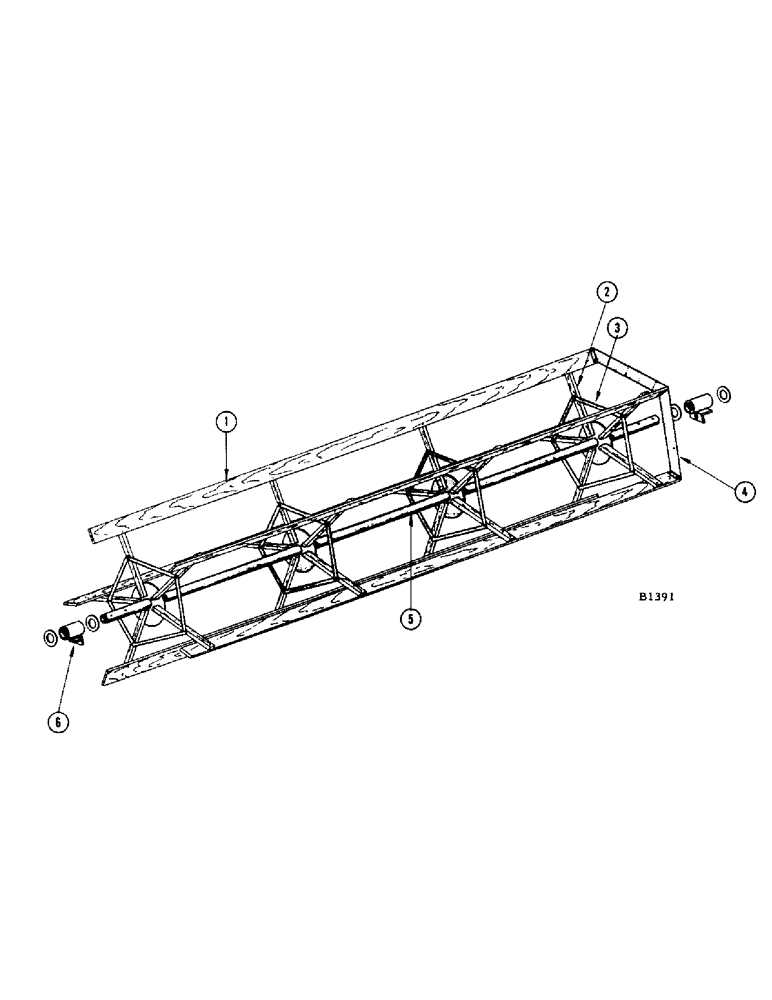

Запчасти Case IH 950 (092) - REEL

1

FH119164

BAT

- reel (10 ft. reel)

5шт.

111-114

CARRIAGE BOLT,Short NK, 1/4"-20 x 1 1/2", G2

BOLT - 1/4" x 1-1/2" rhd. sq. nk. nut (129-101)

15шт.

11-436

BOLT - 1/4" x 2-1/4" rhd. sq. nk. Short NK, 1/4"-20 x 2 1/4", G2

15шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

30шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

30шт.

195-518

WASHER,1/4", SAE

- 5/8" x 9/32" x 16 ga.

30шт.

FH136168

BAT - reel (12 ft. reel)

5шт.

111-114

CARRIAGE BOLT,Short NK, 1/4"-20 x 1 1/2", G2

BOLT - 1/4" x 1-1/2" rhd. sq. nk.

20шт.

11-436

BOLT - 1/4" x 2-1/4" rhd. sq. nk. Short NK, 1/4"-20 x 2 1/4", G2

20шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

40шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

40шт.

195-518

WASHER,1/4", SAE

- 5/8" x 9/32" x 16 ga.

40шт.

FH119180

BAT - reel (14 ft. reel)

5шт.

111-114

CARRIAGE BOLT,Short NK, 1/4"-20 x 1 1/2", G2

BOLT - 1/4" x 1-1/2" rhd. sq. nk.

20шт.

11-436

BOLT - 1/4" x 2-1/4" rhd. sq. nk. Short NK, 1/4"-20 x 2 1/4", G2

20шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

40шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

40шт.

195-518

WASHER,1/4", SAE

- 5/8" x 9/32" x 16 ga.

40шт.

FH136184

BAT - reel (16 ft. reel)

5шт.

111-114

CARRIAGE BOLT,Short NK, 1/4"-20 x 1 1/2", G2

BOLT - 1/4" x 1-1/2" rhd. sq. nk.

25шт.

11-436

BOLT - 1/4" x 2-1/4" rhd. sq. nk. Short NK, 1/4"-20 x 2 1/4", G2

25шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

50шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

50шт.

195-518

WASHER,1/4", SAE

- 5/8" x 9/32" x 16 ga.

50шт.

2

FHO29231

ARM - reel bat (10 ft.-15, 12 ft.-20, 14 ft.-20, 16 ft.-25)

1шт.

111-109

BOLT - 1/4" x 1-1/4" rhd. sq. nk, nut (129-101) and L.W. (192-19) Short NK, 1/4"-20 x 1 1/4", G2

1шт.

3

FH108209

STRAP - reel brace (10 ft. - 15, 12 ft. - 20, 14 ft. - 20 and 16 ft. - 25)

1шт.

111-121

CARRIAGE BOLT,Short NK, 1/4"-20 x 2 1/2", G2

BOLT - 1/4" x 2-1/2" rhd. sq. nk. nut (129-101) and L.W. (192-19)

1шт.

4

FH128686

SHIELD - R.H. reel end (Special)

5шт.

111-109

BOLT - 1/4" x 1-1/4" rhd. sq. nk. nut (129-101) Short NK, 1/4"-20 x 1 1/4", G2

10шт.

195-102

WASHER,1/4"

- 3/4" x 5/16" x 16 ga.

10шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

10шт.

FH128678

SHIELD - L.H. reel end (Special)

5шт.

111-109

BOLT - 1/4" x 1-1/4" rhd. nk. nut (129-101) Short NK, 1/4"-20 x 1 1/4", G2

10шт.

195-102

WASHER,1/4"

- 3/4" x 5/16" x 16 ga.

10шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

10шт.

5

FH240465

SHAFT - reel (10 ft. reel)

1шт.

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

4шт.

FH240473

SHAFT - reel (12 ft. reel)

1шт.

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

4шт.

FH240481

SHAFT - reel (14 ft. reel)

1шт.

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

4шт.

FH240499

SHAFT - reel (16 ft. reel)

1шт.

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

4шт.

6

FH117721

BEARING - reel shaft

2шт.

219-6

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, 1/4" straight

2шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Nut (129-105) L.W. (192-23) and pl. wshr. (195-533) Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.
