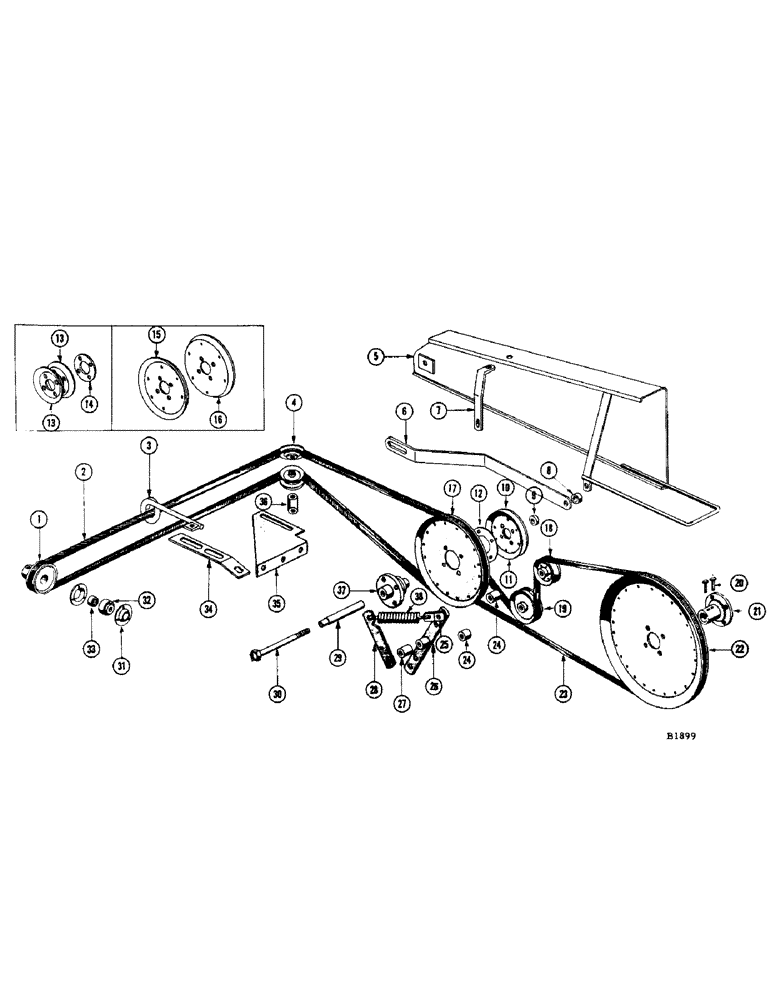

Запчасти Case IH 950 (088) - REEL AND REEL JACKSHAFT DRIVE
№
Артикул
Название
Примечание
Количество
1
FH268540
SHEAVE - reel drive
1шт.
61-528
HEX SOC SCREW,5/16"-18 x 1 3/4"
SCREW - cap, 5/16" x 1-3/4" N.C. hex. socket and L.W. (92-5)
1шт.
2
FHO55319
BELT
"V" BELT - reel jackshaft drive (10 ft. reel)
1шт.
FHO57307
"V" BELT - reel jackshaft drive (12 ft. reel)
1шт.
FHO55442
BELT
Reel Jackshaft Drive, 14 Foot Reel
1шт.
FHO57315
BELT - reel jackshaft drive (16 ft. reel)
1шт.
3
FH227553
GUIDE - reel jackshaft drive belt
1шт.
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
Nut (25-106) and L.W. (92-6) Hex, 3/8"-16 x 1", G5, Full Thd
1шт.
4
F13881
FRONT IDLER
PULLEY - idler
2шт.
113-410
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd
1шт.
113-421
BOLT,Hex, 1/2" - 13 x 2", Gr 5
1шт.
9635082
NUT,5/16" - 18, Gr 5
- 1/2" N.C. hex.
2шт.
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
195-533
WASHER,1/2", SAE
- 1-1/16" x 17/32" x 12 ga.
2шт.
5
FH269423
SHIELD - reel drive belt
1шт.
113-417
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd
Nut (129-105) and L.W. (192-23) Hex, 1/2"-13 x 1 1/4", G5, Full Thd
1шт.
6
FH220772
BRACKET - support
1шт.
13-836
BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5
- 1/2" x 2-1/4" N.C. hex. nut (129-105) and L.W. (192-23)
1шт.
7
FH220764
BRACKET - center
1шт.
113-103
BOLT,Hex, 5/16" - 18 x 1", Gr 5
Nut (129-102) and L.W. (192-20) Hex, 5/16"-18 x 1", G5, Full Thd
2шт.
8
H2755S
SPACER - bracket
1шт.
113-104
BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5
Nut (129-102) and L.W. (192-20) Hex, 5/16"-18 x 1 1/4", G5
1шт.
9
FH158568
SPACER - half sheave
1шт.
10
FH220632
HALF SHEAVE - adjustable jackshaft spindle (Medium)
1шт.
11
FH220640
HALF SHEAVE - adjustable jackshaft spindle (Medium)
1шт.
12
FH241208
SHIM
- half sheave (FH220632 and FH220640 only)
4шт.
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
L.W. (192-21) Hex, 3/8"-16 x 1", G5, Full Thd
4шт.
13
FH220814
HALF SHEAVE - adjustable jackshaft spindle (Slow)
2шт.
14
FH241190
SHIM - sheave
4шт.
15
FH220798
HALF SHEAVE - adjustable jackshaft spindle (Fast)
1шт.
16
FH220806
HALF SHEAVE - adjustable jackshaft spindle (Fast)
1шт.
17
FH234781
SHEAVE - jackshaft spindle drive
1шт.
18
FHO53553
PULLEY
- idler
1шт.
13-840
BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5
- 1/2" x 2-1/2" N.C. hex. nut (25-108) and L.W. (92-8)
1шт.
19
FHO53561
PULLEY - tightener
1шт.
13-840
BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5
- 1/2" x 2-1/2" N.C. hex. nut (25-108) and L.W. (92-8)
1шт.
20
61-640
HEX SOC SCREW,3/8"-16 x 2 1/2"
SCREW - N.C. hex. socket cap 3/8" x 2-1/2"
2шт.
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
2шт.
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
21
FH220780
HUB - reel sheave
1шт.
22
FH220822
SHEAVE - reel
1шт.
23
FHO56606
BELT - reel drive
1шт.
24
PT129S
X
SPACER - bracket
2шт.
25
FH129593
BRACKET - reel belt tightener spring
1шт.
26
FH220491
BRACKET - reel belt tightener
1шт.
219-6
LUBE NIPPLE,1/4" - 28 NPTF
FITTING - grease, 1/4" straight
1шт.
27
FH220889
SPACER - bracket
1шт.
28
FH136804
LEVER - reel tightener spring
1шт.
29
FH145557
SPINDLE - reel jackshaft
1шт.
129-105
NUT,Hex, 1/2" - 13, Gr 5
1шт.
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
1шт.
195-533
WASHER,1/2", SAE
- 1-1/16" 17/32" x 12 ga.
1шт.
31
F19270
FLANGE
2шт.
CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2
BOLT, CARRIAGE, , Nut (25-106) and L.W. (92-6) Short NK, 3/8"-16 x 1", G2
3шт.
32
1443CKA
BALL BEARING
BEARING
1шт.
33
F62234
COLLAR
1шт.
34
FH269407
BRACKET - guide
1шт.
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
Nut (25-106) and L.W. (92-6) Hex, 3/8"-16 x 1", G5, Full Thd
1шт.
35
FH269381
BRACKET - idler pulleys
1шт.
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
Nut (25-106) and L.W. (92-6) Hex, 3/8"-16 x 1", G5, Full Thd
3шт.
36
FH269753
SHAFT - idler mounting
1шт.
37
FH220624
HUB - reel jackshaft sheave
1шт.
219-6
LUBE NIPPLE,1/4" - 28 NPTF
FITTING - grease, 1/4" straight
1шт.
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
Nut (25-106) L.W. (92-6) Hex, 3/8"-16 x 1", G5, Full Thd
4шт.
38
FHO58115
SPRING - reel belt tightener
1шт.
