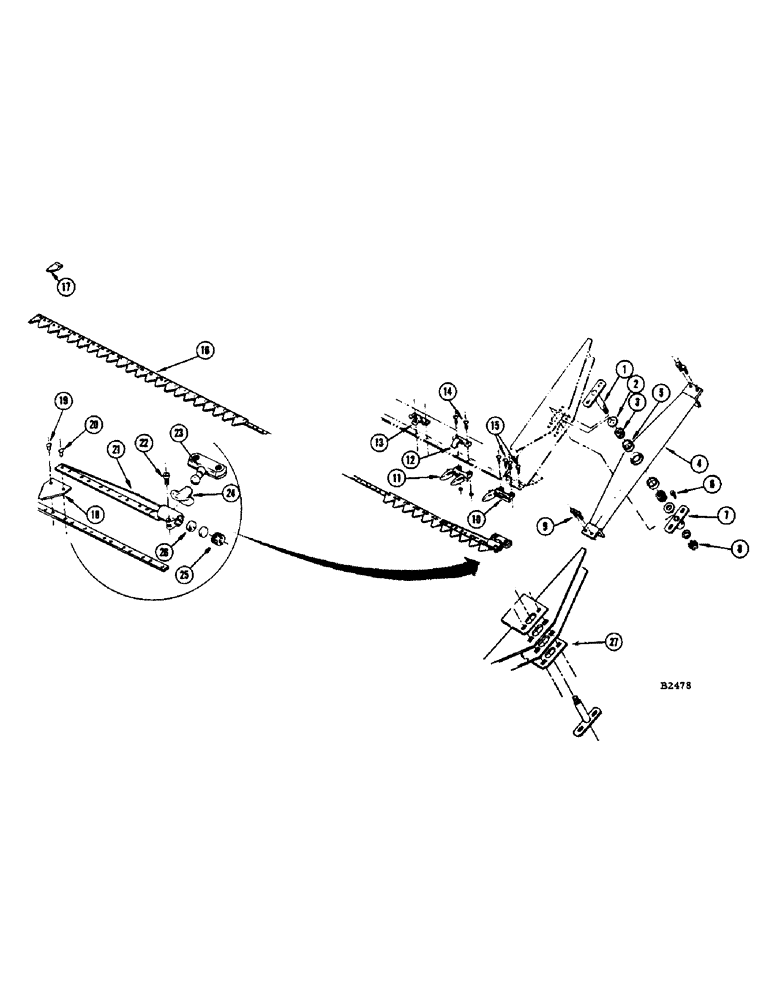

Запчасти Case IH 950 (086) - SICKLE

1

FH123216

PIN

- swaybar

1шт.

2

FH263764

WASHER

- swaybar pin

2шт.

3

FHO50112

BEARING

CONE - bearing, swaybar

2шт.

4

FH374199

SWAYBAR

1шт.

5

FHO50104

CUP

- bearing

2шт.

219-6

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease 1/4" - 28 str.

1шт.

6

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

- 1/2" x 1-1/4" N.C. hex., nut and fl. wshr.

4шт.

7

FH123224

PLATE - reinforcement, swaybar

1шт.

85-812

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - 1/2" x 3/4" N.C. sq. nk. hd. cup pt. set

1шт.

8

25-1314

SLOTTED NUT,7/8"-14, G5

NUT - 7/8" N.F. slotted

1шт.

132-73

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

1шт.

9

FHO26138

BOLT

BOLT - swaybar

4шт.

10

FHO49247

GUARD

- half, L.H. end of sickle

1шт.

11

FHO49239

GUARD

- double (20 - 10 ft., 24 - 12 ft., 28 - 14 ft. and 32 - 16 ft.)

1шт.

12

FH142984

HOLDER

CLIP - hold down, high clearance

1шт.

13

FH241216

CLIP

- hold down (9 - 10 ft., 11 - 12 ft., 13 - 14 ft. and 15 - 16 ft.)

1шт.

14

111-410

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/2", G5

BOLT - 7/16" x 1-1/2" rhd. sq. nk. (20 - 10 ft., 24 - 12 ft. 28 - 14 ft. and 32 - 16 ft.)

1шт.

129-104

NUT,7/16"-14, G5

(20 - 10 ft., 24 - 12 ft., 28 - 14 ft. and 32 - 16 ft.) 7/16"-14, G5

1шт.

15

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, CARRIAGE, (20 - 10 ft., 24 - 12 ft., 28 - 14 ft. adn 32 - 16 ft.) Short NK, 7/16"-14 x 1 1/4", G5

1шт.

129-104

NUT,7/16"-14, G5

(20 - 10 ft., 24 - 12 ft., 28 - 14 ft. and 32 - 16 ft.) 7/16"-14, G5

1шт.

16

F94839

KNIFE ASSY

SICKLE - 10 ft. header (Top serrated sections)

1шт.

F94840

KNIFE ASSY

SICKLE - 12 ft. header (Top serrated sections)

1шт.

F94841

CUTTER BAR

SICKLE - 14 ft. header (Top serrated sections)

1шт.

F94842

KNIFE ASSY

SICKLE - 16 ft. header (Top serrated sections)

1шт.

17

TF59129

CATALOG

SECTION - half, smooth

1шт.

18

F59106

KNIFE SECTION

SECTION - top serrated chrome (41-10 ft., 49-12 ft. 57 - 14 ft. and 65 - 16 ft.)

1шт.

19

T13489

RIVET

- #5-1/2 x 9/16" O.H. pltd. (73 - 10 ft., 89 - 12 ft. 105 - 14 ft. and 121 - 16 ft.)

1шт.

20

T13492

RIVET

- #5-1/2 x 7/8" O.H. pltd. (Sickle head)

11шт.

21

F94847

HEAD

- sickle

1шт.

22

61-616

HEX SOC SCREW,3/8"-16 x 1"

SCREW - 3/8" x 1" N.C. socket hd. cap and L.W.

1шт.

23

FH338228

BALL

STUD BLOCK

1шт.

24

F23106

COVER

CAP - dust

1шт.

25

FH264143

PLUG

1шт.

26

FH720458

BEARING

2шт.

219-6

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease 1/4" - 28 str.

1шт.

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease 1/4" - 28 x 90 degrees

1шт.

F94843

SICKLE - 10 ft. header (Smooth sections) Special

1шт.

F94844

SICKLE - 12 ft. header (Smooth sections) Special

1шт.

F94845

SICKLE - 14 ft. header (Smooth sections) Special

1шт.

F94846

SICKLE - 16 ft. header (Smooth sections) Special

1шт.

T13009

KNIFE SECTION

SECTION - sickle, smooth (41 - 10 ft., 49 - 12 ft., 57 - 14 ft. and 65 - 16 ft.) Also includes ref. 17, 19, 20 and 21

1шт.

27

FH942433

KIT - swaybar reinforcement (Consists of 2 reinforcements, 1 swaybar mounting pin and hardware)

1шт.
