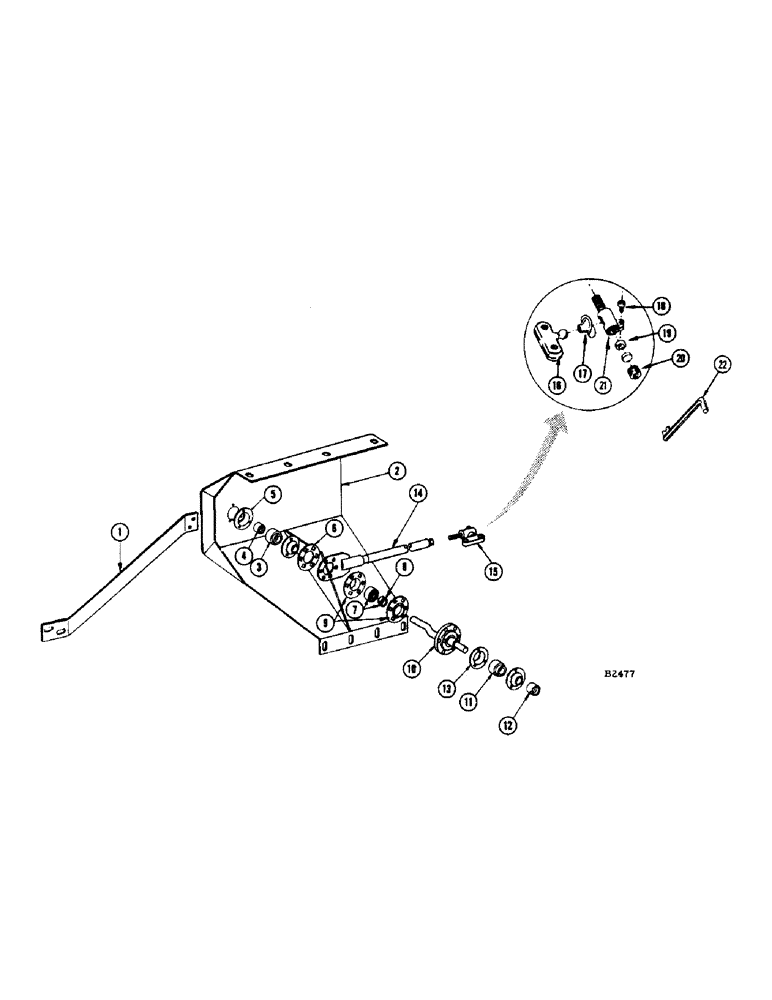

Запчасти Case IH 950 (084) - SICKLE DRIVE

1

FH266148

BRACE - bracket

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Nut and L.W. Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Nut and L.W. Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

2

FH374272

BRACKET - Pitman crank drive

1шт.

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

and nut Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

92-6

LOCK WASHER,3/8"

and fl. wshr. 3/8"

8шт.

3

1443CKA

BALL BEARING

BEARING

1шт.

4

F62234

COLLAR

1шт.

5

F19270

FLANGE

2шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, , Nut and L.W. Short NK, 3/8"-16 x 1", G2

3шт.

6

FH383349

STABILIZER - Pitman bearing

1шт.

7

FH710038

BEARING

1шт.

8

TD4510

COLLAR

1шт.

9

FH264036

FLANGE

2шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Nut and lockwasher Hex, 3/8"-16 x 1", G5, Full Thd

6шт.

10

FH266205

CRANK - Pitman

3шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

and L.W. Hex, 3/8"-16 x 1", G5, Full Thd

6шт.

11

K3315

BEARING ASSY

BEARING

1шт.

12

B18329

COLLAR ASSY.

COLLAR

1шт.

13

T27207

FLANGED BEARING

FLANGE

2шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, , Nut and L.W. Short NK, 3/8"-16 x 1", G2

3шт.

14

FH269340

PITMAN - sickle (10 ft. header)

1шт.

FH269357

PITMAN - sickle (12 ft. header)

1шт.

FH269365

PITMAN - sickle (14 ft. header)

1шт.

FH269373

PITMAN - sickle (16 ft. header)

1шт.

15

FH383588

HEAD

- Pitman (Replaces FH373605 when stocks are exh.)

1шт.

FH373605

X

HEAD - Pitman (Replaced by FH383588 when stocks are exh.)

1шт.

16

FH338228

BALL

STUD BLOCK

1шт.

17

F23106

COVER

CAP - dust

1шт.

18

61-616

HEX SOC SCREW,3/8"-16 x 1"

SCREW - 3/8" x 1" N.C. hex. socket hd. cap and L.W.

1шт.

19

FH720458

BEARING

2шт.

20

FH264143

PLUG

1шт.

219-6

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease 1/4" - 28 str.

1шт.

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease 1/4" - 28 x 90 degrees

1шт.

21

FH383570

TUBE

1шт.

22

FH380360

OPEN END WRENCH

WRENCH - adjusting

1шт.
