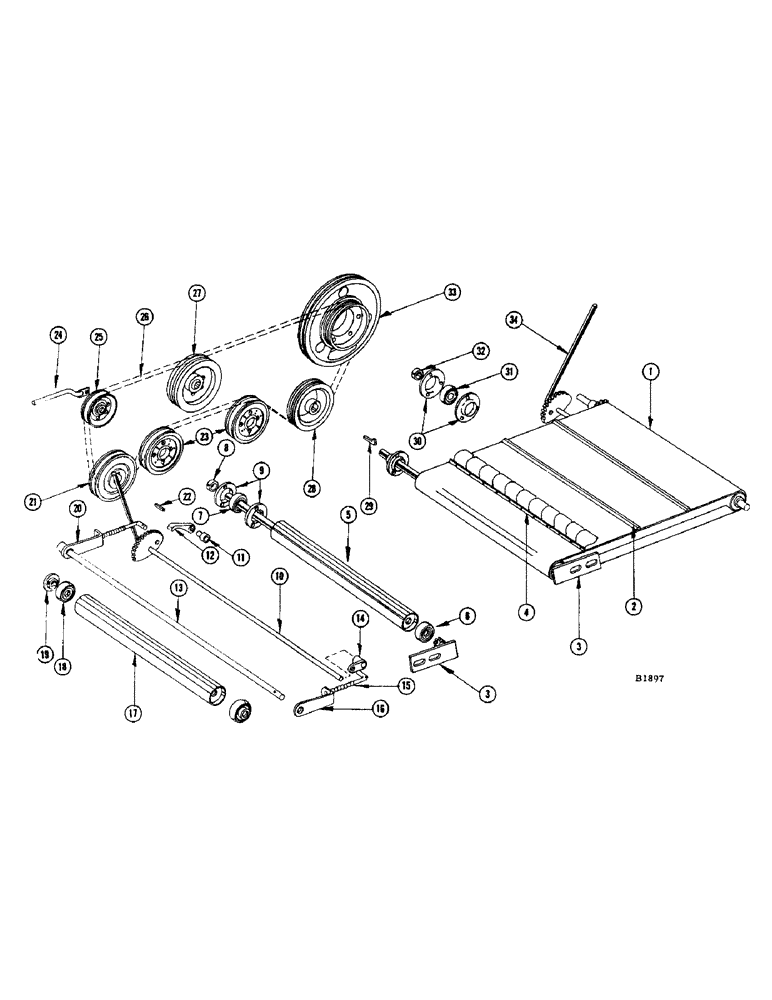

Запчасти Case IH 950 (082) - CANVAS AND CANVAS DRIVE

1

FHO28233

CANVAS - (Duck) Special - 10 ft. header

2шт.

FHO28175

CANVAS - (Duck) Special - 12 ft. header

2шт.

FHO28191

CANVAS - (Duck) Special - 14 ft. header

2шт.

FHO28217

CANVAS - (Duck) Special - 16 ft. header

2шт.

FHO28407

CANVAS - (Rubberized) Regular - 10 ft. header

2шт.

FHO28415

CANVAS - (Rubberized) Regular - 12 ft. header

2шт.

FHO28423

CONVEYOR ASSY.

CANVAS - (Rubberized) Regular - 14 ft. header

2шт.

FHO28431

CANVAS - (Rubberized) Regular - 16 ft. header

2шт.

2

FHO29249

SLAT

1шт.

3

FH146951

BRACKET

2шт.

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Nut and fl. wshr. Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

4

FHO28043

COUPLING - rubberized canvas (9 holes)

2шт.

FHO28373

COUPLING - duck canvas (8 holes)

2шт.

5

FH265926

ROLLER - drive

2шт.

6

FHO50377

BEARING

BEARING

1шт.

7

3074CSA

BALL BEARING

2шт.

8

F62108

COLLAR

1шт.

9

FHO50567

FLANGE

4шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Nut and L.W. Short NK, 5/16"-18 x 3/4", G2

6шт.

10

FH265918

ROD - tightener, R.H.

1шт.

11

FH240820

SPACER

2шт.

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Nut and L.W. Hex, 3/8"-16 x 1 3/4", G5

2шт.

12

FH240812

DOG - ratchet

2шт.

13

FH252130

SHAFT

2шт.

14

FH258921

BRACKET

2шт.

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

2шт.

15

FH239715

SPECIAL BOLT

DRAWBOLT

4шт.

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

4шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex.

8шт.

16

FH239699

BRACKET

2шт.

17

FH252353

ROLLER - idler

2шт.

18

FHO51540

BEARING, BALL

BEARING

4шт.

19

FH254888

COLLAR

4шт.

20

FH239681

BRACKET

2шт.

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

2шт.

21

FHO54221

SHEAVE - driven, drives R.H. roller

1шт.

22

T13450

KEY

1шт.

23

FHO54155

BEARING

PULLEY - idler

2шт.

11-856

BOLT (MACHINE)

BOLT - 1/2" x 3-1/2" rhd. nk., nut and L.W.

2шт.

95-8

WASHER,1/2"

flat 1/2"

7шт.

24

FH265975

DRAWBOLT

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

1шт.

25

F13881

FRONT IDLER

PULLEY - tightener

1шт.

95-8

WASHER,1/2"

flat 1/2"

1шт.

26

FH855130

BELT,157.50" L

Canvas Drive 157.50" L

1шт.

27

FHO53538

PULLEY

IDLER

1шт.

28

FH265959

SHEAVE - driven, drives L.H. idler

1шт.

29

FHO61424

KEY

1шт.

30

T27207

FLANGED BEARING

FLANGE

2шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, , Nut and L.W. Short NK, 3/8"-16 x 1", G2

3шт.

31

K3315

BEARING ASSY

BEARING

1шт.

32

B18329

COLLAR ASSY.

COLLAR

1шт.

33

FH374256

SHEAVE - drive Pitman

1шт.

34

FH265892

ROD - tightener, L.H.

1шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

195-41

WASHER,5/8"

- flat 5/8"

3шт.
