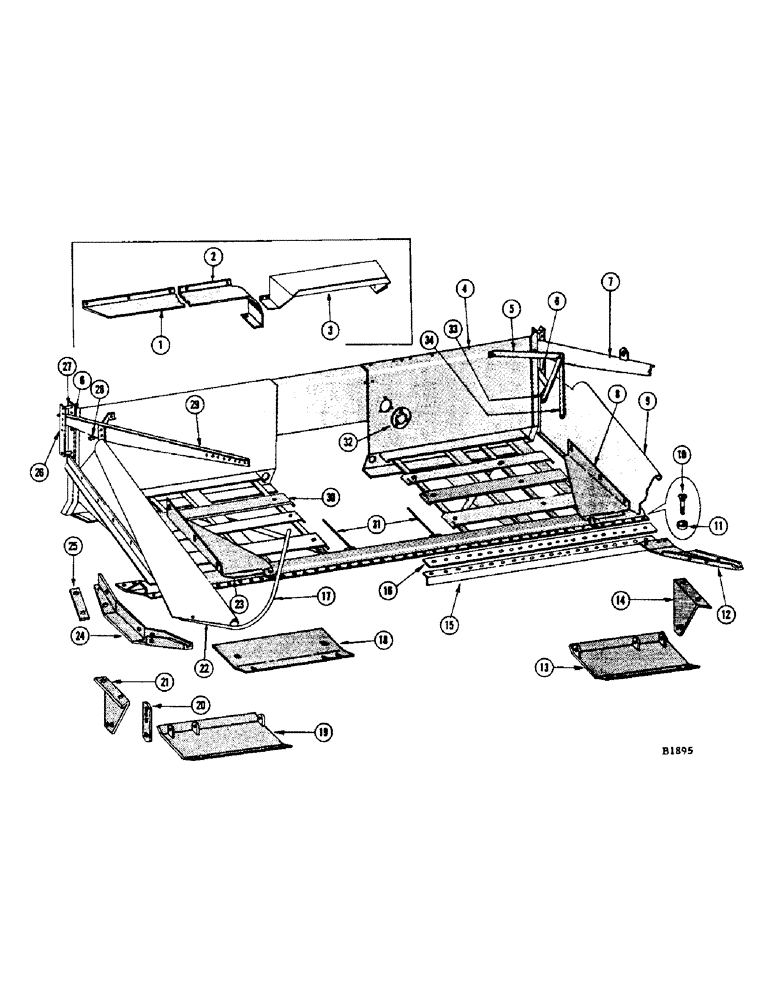

Запчасти Case IH 950 (078) - HEADER PLATFORM AND DIVIDERS

1

FH149682

SHIELD - draper, L.H. (Special - 10 ft. header)

1шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , and nut (25-105), L.W. (92-5) Short NK, 5/16"-18 x 3/4", G2

5шт.

FH149690

SHIELD - draper, R.H. (Special - 10 ft. header)

1шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , and nut (25-105), L.W. (92-5) Short NK, 5/16"-18 x 3/4", G2

5шт.

FH149708

SHIELD - draper, L.H. (Special - 12 ft. header)

1шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , and nut (25-105), L.W. (92-5) Short NK, 5/16"-18 x 3/4", G2

7шт.

FH149716

SHIELD - draper, R.H. (Special - 12 ft. header)

1шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , and nut (25-105), L.W. (92-5) Short NK, 5/16"-18 x 3/4", G2

7шт.

2

FH149724

SHIELD - draper, L.H. (Special - 14 ft. header)

1шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , and nut (25-105), L.W. (92-5) Short NK, 5/16"-18 x 3/4", G2

8шт.

FH149732

SHIELD - draper, R.H. (Special - 14 ft. header)

1шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , and nut (25-105), L.W. (92-5) Short NK, 5/16"-18 x 3/4", G2

8шт.

FH149740

SHIELD - draper, L.H. (Special - 16 ft. header)

1шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , and nut (25-105), L.W. (92-5) Short NK, 5/16"-18 x 3/4", G2

8шт.

FH149757

SHIELD - draper, R.H. (Special - 16 ft. header)

1шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , and nut (25-105), L.W. (92-5) Short NK, 5/16"-18 x 3/4", G2

8шт.

3

FH269738

SHIELD - windrow opening

1шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

L.W. (92-5) and fl. wshr. (95-5) Hex, 5/16"-18 x 3/4", G5, Full Thd

3шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , and nut (25-105), L.W. (92-5) Short NK, 5/16"-18 x 3/4", G2

4шт.

4

FH374082

PLATFORM - header (10 ft.)

1шт.

FH274108

PLATFORM - header (12 ft.)

1шт.

FH374116

PLATFORM - header (14 ft.)

1шт.

FH374124

PLATFORM - header (16 ft.)

1шт.

5

FH117606

BRACE - diagonal reel support

2шт.

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Nut (129-103) and L.W. (192-21) pl. wshr. (195-525) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Nut (129-105) and L.W. (192-23) pl. wshr. (195-533) Hex, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

6

FH160218

SPACER

2шт.

7

FH266080

ARM - L.H., reel support

1шт.

8

FH237800

SHIELD - left lower draper (Special)

1шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Nut (129-102) and L.W. (192-20) pl. wshr. (195-521)

2шт.

9

FH126847

DIVIDER - left hand

1шт.

10

111-410

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/2", G5

BOLT - 7/16" x 1-1/2" rhd. sq. nk. nut (129-104)

1шт.

11

FH160341

SPACER

1шт.

12

FH223487

SHOE - left divider

1шт.

13

FH224063

SKID - adjustable, L.H. side (Special)

1шт.

4

FH224113

BRACKET - left mounting (Specail)

1шт.

11-612

BOLT

- 3/8" x 3/4" rhd. sq. nk. nut (25-106) L.W. (92-6)

2шт.

5

FH289314

RETAINER - 10 ft. header

2шт.

77-512

SCREW

- 5/16" x 3/4" N.C. truss hd. mach.

7шт.

FH289322

RETAINER - 12 ft. header

2шт.

77-512

SCREW

- 5/16" x 3/4" N.C. truss hd. mach.

9шт.

FH289330

RETAINER - 14 ft. header

2шт.

77-512

SCREW

- 5/16" x 3/4" N.C. truss hd. mach.

11шт.

FH289348

RETAINER - 16 ft. header

2шт.

77-512

SCREW

- 5/16" x 3/4" N.C. truss hd. mach.

13шт.

16

FH289272

GUARD - (Rubber) 10 ft. header

2шт.

FH289280

GUARD - (Rubber) 12 ft. header

2шт.

FH289298

GUARD - (Rubber) 14 ft. header

2шт.

FH289306

GUARD - (Rubber) 16 ft. header

2шт.

17

FH136366

POINT - divider

2шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Nut (129-103) and L.W. (192-21) pl. wshr. (195-525) Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

18

FH269449

PLATE - wear, divider shoe (10, 12, 14 and 16 ft. headers)

2шт.

19-616

BOLT,Hex, 1/2" - 20 x 2 1/2", Gr 8

- 3/8" x 1" plow nut (25-106) L.W. (92-6)

4шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

L.W. (92-6) & fl. wshr. (92-6) Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

19

FH224071

SKID - adjustable, R.H. side (Special)

1шт.

20

FH224139

LINK - adjusting, for skid shoes (Special)

4шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, , Nut (25-106) L.W. (92-6) Short NK, 3/8"-16 x 1", G2

12шт.

21

FH224121

BRACKET - right mounting (Special)

1шт.

11-612

BOLT

- 3/8" x 3/4" rhd. sq. nk. nut (25-106) and L.W. (92-6)

2шт.

22

FH126854

DIVIDER - right hand

1шт.

23

FH237818

SHIELD - right lower draper (Special)

1шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Nut (25-105) and pl. wshr. (195-521) L.W. (192-20)

2шт.

24

FH223495

SHOE - right divider

1шт.

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Nut (129-103) pl. wshr. (195-525) L.W. (192-21) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

25

FH223537

SHIM

1шт.

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Nut (129-103) and L.W. (192-21) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

26

FH221523

GUIDE - reel support arm

2шт.

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8" x 2-1/4" N.C. hex. nut (25-106) and L.W. (92-6)

4шт.

27

FH136200

SPACER

2шт.

28

O4361AB

SPACER

1шт.

29

FH266106

ARM - R.H. reel support

1шт.

30

FH222216

SLIDE - canvas (For 10' header rubberized canvas - special)

6шт.

171-221

SCREW,Sl Flat Hd, 5/16" - 18 x 3/4"

- 5/16" x 3/4" N.C. flat hd. mach.

12шт.

92-5

LOCK WASHER,5/16"

12шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex. L.W. (92-5)

12шт.

95-5

WASHER,3/8" x 7/8" x .083"

- 7/8" x 3/8" x 14 ga.

6шт.

FH222232

SLIDE - canvas (For 12' header rubberized canvas - special)

6шт.

FH222257

SLIDE - canvas (For 14' header rubberized canvas - special)

6шт.

FH222273

SLIDE - canvas (For 16' header rubberized canvas - special)

6шт.

31

FH115857

ROD - windrow forming (Special)

2шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, , Nut (25-106) L.W. (92-6) Short NK, 3/8"-16 x 1", G2

4шт.

32

FH268557

PLATE - cover, sickle pitman hole in back sheet

1шт.

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

- 1/4" x 1/2" N.C. rhd. mach.

3шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

3шт.

33

FH117614

BRACE - reel support

2шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Nut (129-105) L.W. (192-23) and pl. wshr. (195-533) Hex, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

34

FH117622

SUPPORT - reel arm

2шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Nut (129-105) L.W. (192-23) and pl. wshr. (195-533) Hex, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.
