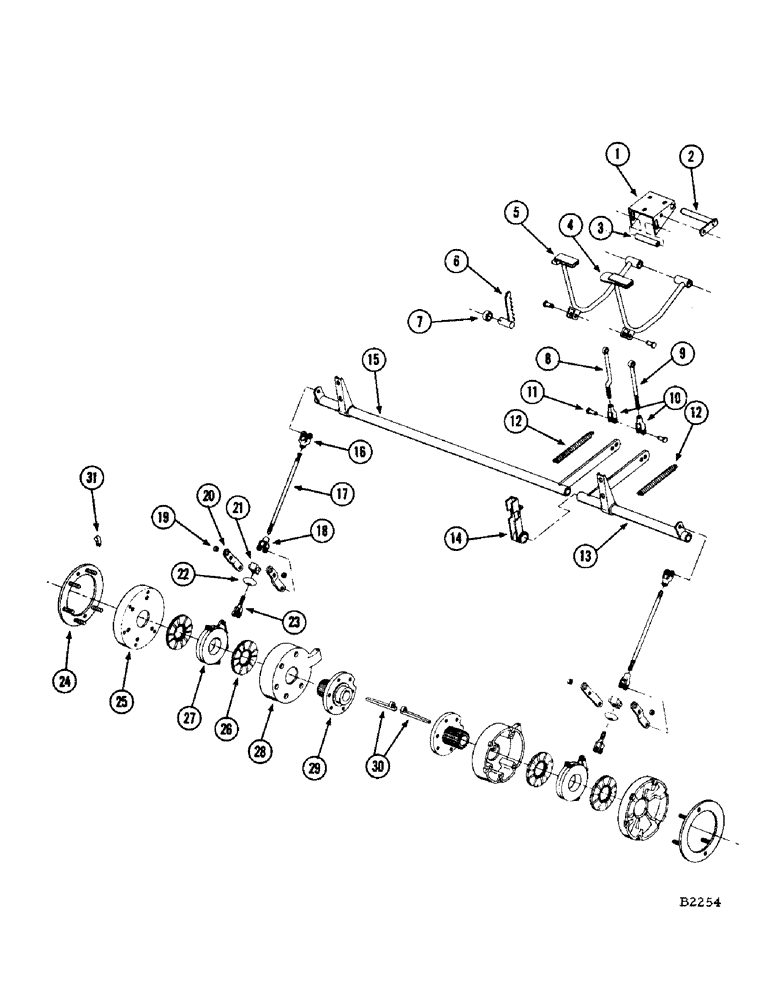

Запчасти Case IH 950 (076) - WHEEL BRAKE ATTACHMENT

1

FH314039

CHANNEL - mounting, brake pedal

1шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Nut (129-102) & L.W. (192-20)

3шт.

195-103

WASHER,5/16"

- 7/8" x 3/8" x 14 ga. Z.P.

3шт.

2

FH314161

PIN - brake pedal mounting

1шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Nut (129-102) & L.W. (192-20)

1шт.

3

FH314013

SPACER - stop

1шт.

13-8112

BOLT,Hex, 1/2" - 13 x 7", Gr 5

(129-105) L.W. (192-23) Hex, 1/2"-13 x 7", G5

1шт.

195-106

WASHER,1/2"

- 1-3/8" x 9/16" x 12 ga. Z.P.

2шт.

4

FH314286

PEDAL - brake, L.H.

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, 1/4"-28 straight

1шт.

5

FH314294

PEDAL - brake, R.H.

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, 1/4"-28 straight

1шт.

6

FH313973

LOCK - brake

1шт.

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), 3/16" x 1 1/2"

1шт.

7

FG314005

BUSHING - brake lock

1шт.

FHO52522

BUSHING - 1-1/8" x 10 ga. mach.

1шт.

8

FH314773

ROD - offset, R.H.

1шт.

9

FH314120

ROD - L.H.

2шт.

10

FHO66183

CLEVIS - upper rod

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

11

FH314781

PIN - clevis

4шт.

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), 3/16" x 1 1/2"

4шт.

12

FHO58875

SPRING - return

2шт.

13

FH314062

SHAFT - torsion

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, 1/4"-28 straight

1шт.

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

L.W. (192-20) Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

195-103

WASHER,5/16"

- 7/8" x 3/8" x 14 ga. Z.P.

2шт.

14

FH316000

HANGER - bearing

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, 1/4"-28 straight

1шт.

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5, L.W. (192-20)

2шт.

15

FH314047

SHAFT - torsion

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, 1/4"-28 straight

1шт.

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

L.W. (192-20) Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

FHO63958

PIN - clevis 7/16" x 1-1/2"

6шт.

132-67

COTTER PIN,5/32" x 3/4"

Pin, Split (Cotter), 5/32" x 3/4"

2шт.

132-69

COTTER PIN,5/32" x 1"

Pin, Split (Cotter), 5/32" x 1"

4шт.

16

FH313247

CLEVIS - brake rod, upper

2шт.

129-104

NUT,7/16"-14, G5

2шт.

17

FH314203

ROD - brake

2шт.

18

FH314799

CLEVIS - brake rod, lower

2шт.

129-304

NUT - 7/16" N.C. hex., L.H. thread

2шт.

19

FH314021

BUSHING - lever

4шт.

20

FH313932

LEVER

4шт.

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5, Nut (129-102)

2шт.

21

FH314211

BLOCK

2шт.

22

FHO27789

BOOT - rubber

2шт.

23

FH313924

CLEVIS - actuating disc

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

24

FH314146

PLATE

2шт.

25

FH314278

PLATE - brake mounting

2шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , L.W. (192-21) 3/8"-16, G5

10шт.

26

FH721100

DISC - middle

4шт.

27

FH721118

DISC - actuating

2шт.

28

FH314138

HOUSING

2шт.

61-648

BOLT - 3/8" x 3" N.C. hex. sock hd. L.W. (192-21)

10шт.

29

FH314229

HUB - wheel

2шт.

30

FH314252

KEY - hub

2шт.

31

FH314195

CLAMP

2шт.

75-46

SCREW

- 1/4" x 3/8" N.C. rhd. L.W. (192-19)

2шт.
