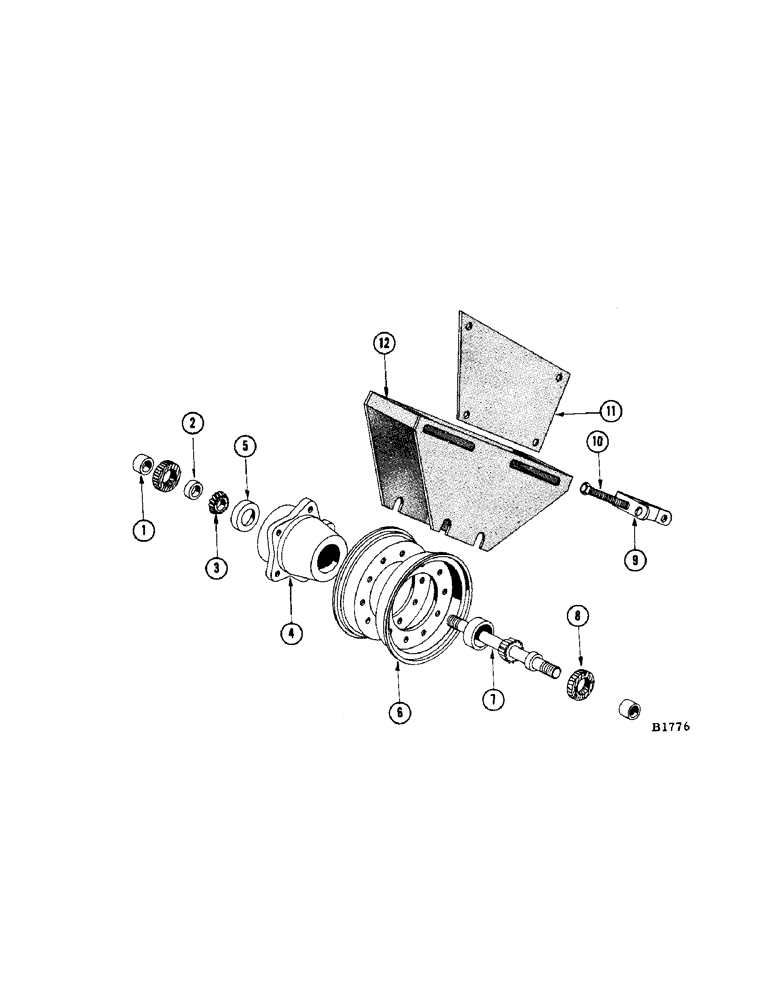

Запчасти Case IH 950 (074[1]) - GAUGE WHEEL

1

FH159897

SPACER - axle

4шт.

2

FHO45575

SPACER - hub

4шт.

3

W9651S

CUP ASSY.

CONE

4шт.

4

FHO26245

HUB

2шт.

5

W10153S

CUP

2шт.

114-201

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5, Full Thd

- 3/8" x 1-1/4" N.F. hex., nut and L.W.

10шт.

6

FHO26237

RIM - for 6 x 4.50 implement tire

2шт.

114-209

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

- 3/8" x 3/4" N.F. hex., nut and L.W.

10шт.

7

FH236386

AXLE

2шт.

129-170

JAM NUT,Jam, 1"-14, G5

8шт.

8

FHO44214

OIL SEAL

4шт.

9

FH236984

BRACKET - adjustment

2шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Nut and L.W. Hex, 1/2"-13 x 1 1/4", G5, Full Thd

6шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Nut and L.W. Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

195-106

WASHER,1/2"

- flat 1/2"

4шт.

10

FHO72801

CAP SCREW - adjusting

2шт.

11

FH238360

BRACKET - support

2шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Nut and L.W. Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Nut and L.W. Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

195-106

WASHER,1/2"

- flat 1/2"

4шт.

12

FH238345

BRACKET - mounting

2шт.
