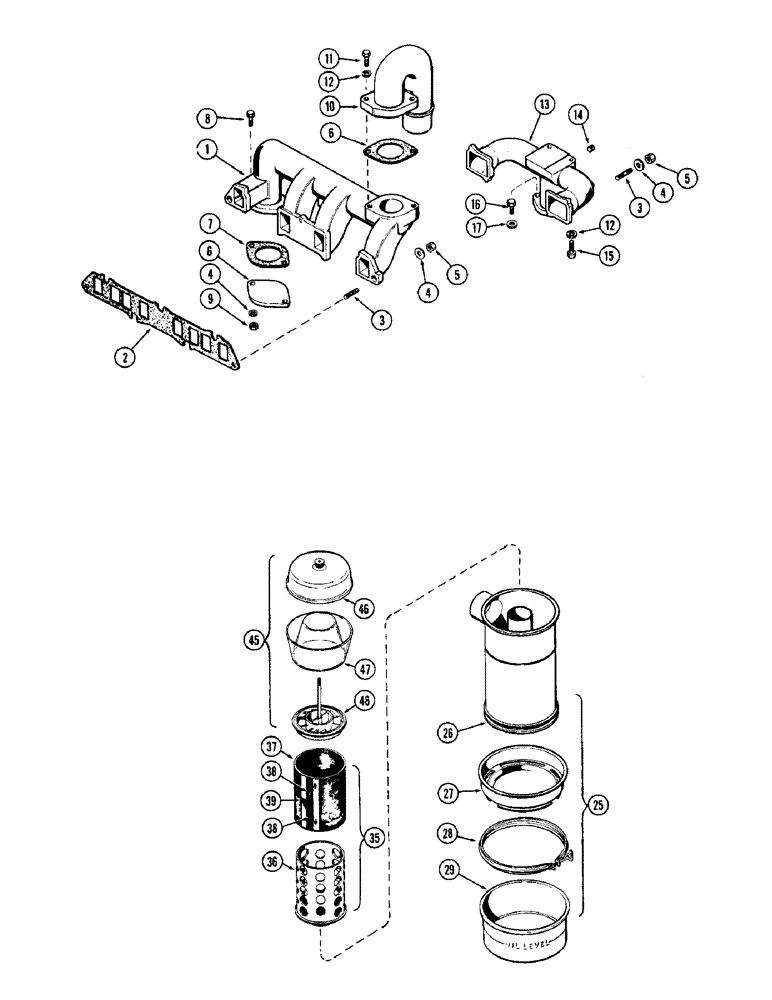

Запчасти Case IH 950 (008) - INTAKE AND EXHAUST MANIFOLD, AIR CLEANER, PRE SCREENER, PRE CLEANER

1

G2042

MANIFOLD

- exhaust (Replaced by A39231)

1шт.

2

A30030

GASKET

- manifold mounting

1шт.

3

A29431

STUD

- manifold retaining (3/8 x 1-3/4")

7шт.

4

195-25

WASHER,3/8"

- plain, SAE 3/8"

5шт.

5

131-903

NUT,3/8"-16

NUT - hex. brass, 3/8" N.C.

7шт.

6

G2044

LARGE PLATE

COVER - lower exhaust opening

1шт.

7

G46853

MANIFOLD GASKET

- exhaust cover and elbow

2шт.

8

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex. hd., 3/8" x 1-1/2" N.C.

2шт.

9

131-903

NUT,3/8"-16

NUT - hex., brass, 3/8" N.C.

2шт.

10

A36185

ELBOW - exhaust

1шт.

11

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

12

92-6

LOCK WASHER,3/8"

4шт.

13

A37172

MANIFOLD

- intake

1шт.

14

221-12

PLUG,Sq Hd, 1/4"-18

- pipe, 1/4" sq. hd.

1шт.

15

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

16

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

17

92-5

LOCK WASHER,5/16"

2шт.

25

A37104

CLEANER ASSY, - air AIR CLEANER

1шт.

26

NSS

NOT SOLD SEPARAT

BODY - air cleaner (Order A37104) AIR CLEANER

1шт.

NLS

NO LONGER SERVICED

DECAL - instruction (Not illustrated) AIR CLEANER (10812)

1шт.

27

G46013

CUP

- inner oil AIR CLEANER

1шт.

28

10811

STUD

CLAMP ASSY. - oil cup retainer AIR CLEANER

1шт.

29

G46012

CUP - outer oil AIR CLEANER

1шт.

35

A37105

PRE-SCREENER ASSY. - air PRE-SCREENER

1шт.

36

NSS

NOT SOLD SEPARAT

BODY - pre-screener (Order A37105)

1шт.

37

A40908

SCREEN

ASSY. - pre-screener

1шт.

38

A22780

SPRING

- screen retaining PRE-SCREENER

2шт.

39

A22781

CLIP

- spring retaining PRE-SCREENER

1шт.

45

A35321

CLEANER

PRE-CLEANER ASSY. - air

1шт.

46

D30676

COVER

ASSY. - pre-cleaner

1шт.

47

D30675

BODY

- pre-cleaner

1шт.

48

NSS

NOT SOLD SEPARAT

SLEEVE - pre-cleaner (Order D20605)

1шт.
