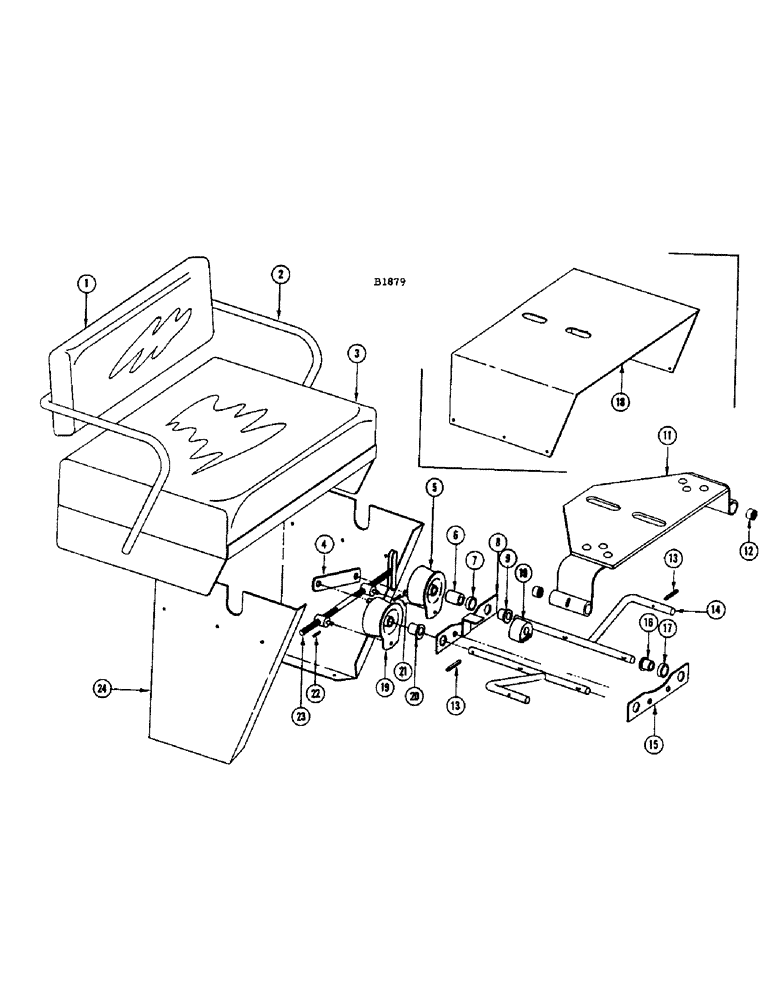

Запчасти Case IH 950 (070) - OPERATORS SEAT

1

FHO45161

CUSHION - back rest

1шт.

2

FH339507

FRAME - seat

1шт.

195-106

WASHER,1/2"

- flat 1/2"

1шт.

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, , Nut, L.W. and fl. wshr. Short NK, 3/8"-16 x 1", G2

1шт.

3

FH752204

CUSHION - seat

1шт.

4

G45005

LINK - stablilizing

1шт.

5

G45003

SPRING SEAT

SPRING - rubber, L.H.

1шт.

6

10953K

SPACER - spring shafts

2шт.

7

195-41

WASHER,5/8"

Rear, spring shafts 5/8"

4шт.

8

F94726

TIE BAR - rear, spring shafts

1шт.

9

G46002

FLANGED BEARING

BEARING - flanged

2шт.

10

A30644

BUMPER

- rubber, rear tie bar

1шт.

11

F94725

SUPPORT - seat suspension

1шт.

12

E3330S

BUSHING

4шт.

13

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

4шт.

14

F94728

SHAFT - spring, R.H. and L.H.

2шт.

15

F94727

TIE BAR - front, spring shafts

1шт.

16

G46002

FLANGED BEARING

BEARING - flanged

2шт.

17

A26462

WASHER

- front, spring shaft

4шт.

18

FH289736

ADAPTER - seat

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Nut and L.W. Hex, 3/8"-16 x 3/4", G5, Full Thd

6шт.

19

G45002

SPRING SEAT

SPRING - rubber, R.H.

1шт.

20

G46002

FLANGED BEARING

BEARING - flanged

2шт.

21

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

22

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, , For ref. 23 stud 1/8" x 3/4", Slotted

2шт.

23

F94729

STUD - adjusting

1шт.

24

FH380758

MOUNTING - seat

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Nut, L.W. and fl. wshr. Hex, 3/8"-16 x 3/4", G5, Full Thd

6шт.
