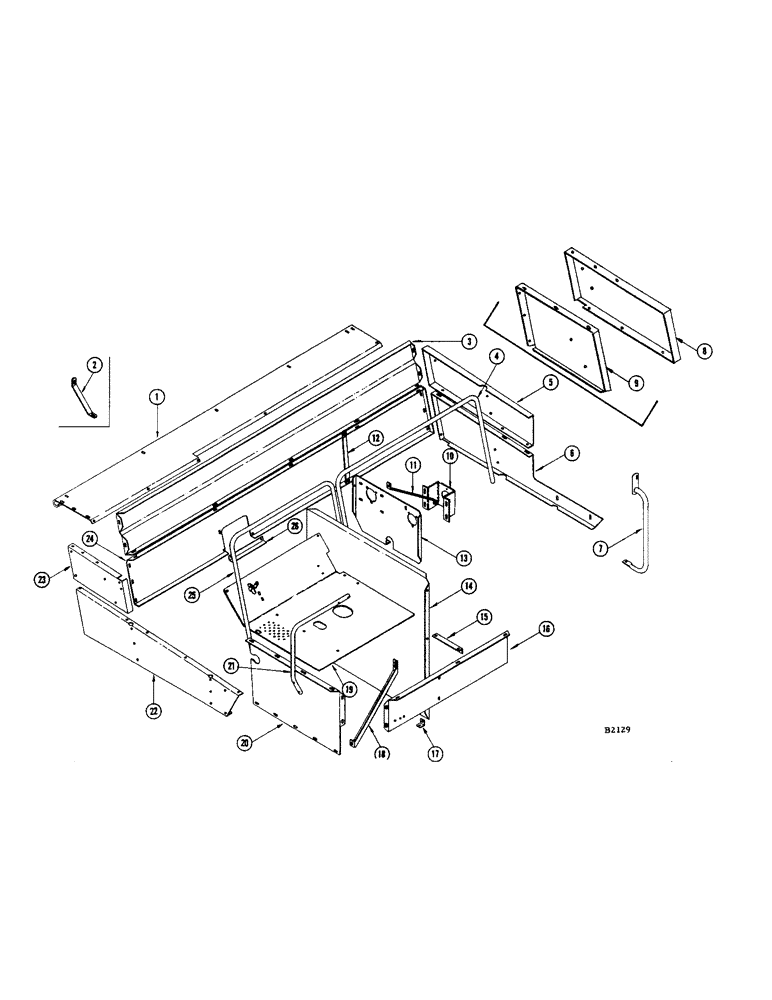

Запчасти Case IH 950 (066) - OPERATORS PLATFORM, DECALS

1

FH291740

PANEL - top

1шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Nut and fl. wshr.

4шт.

2

FH292920

BRACE - panel to main frame

1шт.

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Nut L.W. and fl. wshr. Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

3

FH291724

PANEL - upper front

1шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Nut and L.W.

10шт.

4

FH291443

RAIL - guard, R.H. (A126 engine)

1шт.

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

Nut and L.W. Hex, 5/16"-18 x 1 3/4", G5

2шт.

5

FH291757

PANEL - R.H. upper side (A126 engine)

1шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, and nut

11шт.

6

FH291567

PANEL - R.H. lower side (A126 engine)

1шт.

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

Nut L.W. and fl. wshr. Hex, 5/16"-18 x 1 3/4", G5

5шт.

7

FH295261

RAIL - hand (A126 engine)

1шт.

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" x 2-1/2" N.C. hex., nut, L.W. and fl. wshr.

2шт.

8

FH268441

PANEL - R.H. upper side (VG4D engine)

1шт.

173-217

SCREW,Sl Rnd Hd, 5/16" - 18 x 3/4"

- 5/16" x 3/4" N.C. rhd. mach. and L.W.

3шт.

9635082

NUT,5/16" - 18, Gr 5

and fl. wshr. 5/16"-18, G5

6шт.

9

FH374736

PANEL - R.H. lower side (VG4D engine)

1шт.

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

Nut L.W. and fl. wshr. Hex, 5/16"-18 x 1 3/4", G5

6шт.

10

FH268219

MOUNTING - hyraulic pump

1шт.

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Nut and L.W. Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

11

FH269282

BRACE - hydraulic pump

1шт.

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Nut and L.W. and fl. wshr. Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

12

FH315515

BRACE - lower front panel (A126 engine)

1шт.

13-519

BOLT - 5/16" x 1" N.C. hex., nut and fl. wshr.

1шт.

13

FH389213

BRACKET - drive shaft support

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Nut and L.W. Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

14

FH268052

SUPPORT - right, platform

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Nut and L.W. Hex, 3/8"-16 x 1", G5, Full Thd

6шт.

15

FH137208

BRACKET - right front

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Nut, L.W. and fl. wshr. Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

16

FH268110

SUPPORT - rear

1шт.

17

FH137935

BRACKET - attaching, for ref. 14 support

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Nut, L.W. and fl. wshr. Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

18

FH268102

BRACE - variable drive support

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Nut and L.W. Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

19

FH339523

PLATFORM

1шт.

20

FH268128

SUPPORT - left, platform

1шт.

21

FH268417

RAIL - guard, L.H. rear

1шт.

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

and nut Hex, 5/16"-18 x 1 3/4", G5

4шт.

22

FH270363

PANEL - L.H. lower side

1шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Nut, L.W. and fl. wshr.

7шт.

23

FH268235

PANEL - L.H. upper side

1шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, and nut

12шт.

24

FH291518

PANEL - lower front

1шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Nut and L.W. Hex, 5/16"-18 x 3/4", G5, Full Thd

3шт.

95-5

WASHER,3/8" x 7/8" x .083"

- 5/16" flat

3шт.

25

FH291534

RAIL - guard, L.H.

1шт.

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

and nut Hex, 5/16"-18 x 1 3/4", G5

4шт.

113-117

BOLT - 5/16" x 2-1/2" N.C. hex. and nut

2шт.

26

FH269746

ANGLE - reinforcement, for ref. 24 panel

1шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Nut and L.W. Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

B17130

DECAL KIT DECALS

1шт.

321-8

DECAL

EAGLE DECALS

1шт.

321-11

TRADE MARK DECALS

1шт.

321-48

BE CAREFUL DECALS

1шт.

321-262

AIR CLEANER DECALS

1шт.

321-266

DECAL

CASE DECALS

1шт.

321-662

DECAL

BLOCK HEADER DECALS

1шт.

321-348

DECAL

NEUTRAL DECALS

1шт.

321-673

CASE DECALS

1шт.

321-832

REVERSE BELT DECALS

1шт.

321-833

DROP HEADER DECALS

1шт.

321-834

DO NOT TOW DECALS

1шт.

321-835

STEERING DECALS

1шт.

321-836

TIRE PRESSURE DECALS

5шт.

321-837

LEVELING DECALS

1шт.

321-838

PATENT DECALS

1шт.

321-839

PATENT DECALS

1шт.

321-840

TEMPERATURE SAFETY DECALS

1шт.

321-841

REMOVE COVER TO CLEAN DECALS

2шт.

321-842

WISCONSIN INSIGNIA DECALS

1шт.

321-843

REEL DRIVE BELT DECALS

1шт.

321-844

CANVAS DRIVE BELT DECALS

1шт.

321-851

NEGATIVE GROUND DECALS

1шт.

321-972

CASE "950" DECALS

1шт.
