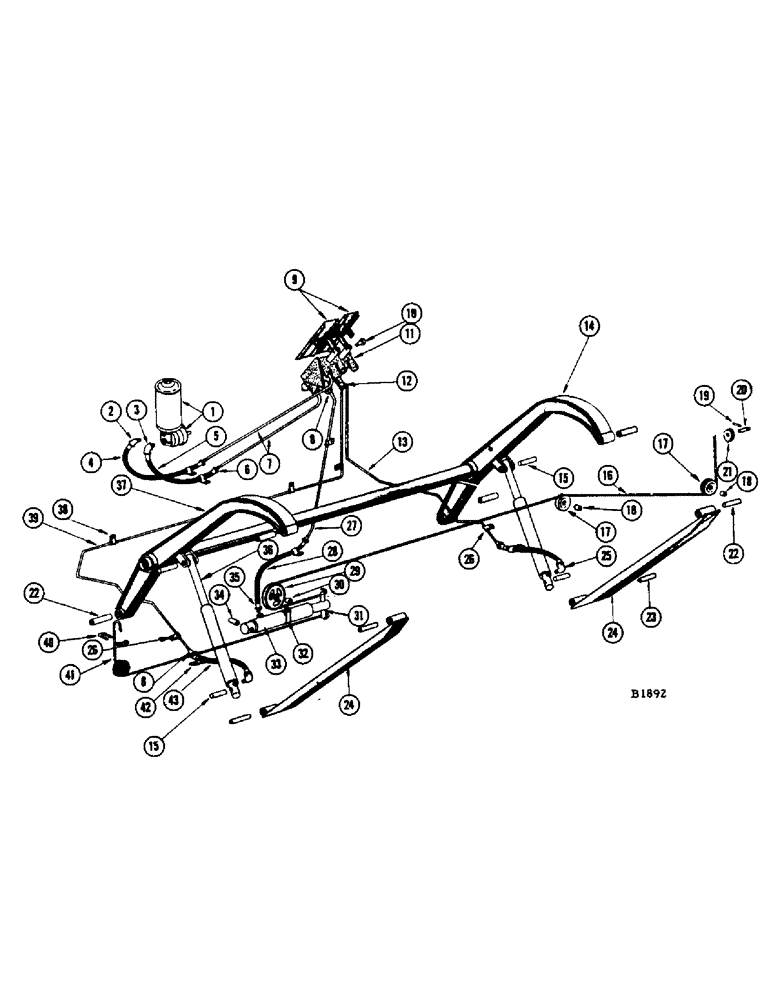

Запчасти Case IH 950 (058) - HEADER AND REEL HYDRAULICS

1

FHO42820

PUMP - hydraulic, with reservoir

1шт.

2

221-403

X

ELBOW - 3/8" - 46 degree street

1шт.

3

221-161

PIPE,Nipple, 3/8" NPT x 1 1/2"

NIPPLE - 3/8" x 1-1/2" black pipe

1шт.

4

FHO42853

HOSE - return, Serial Range: pump-valve

1шт.

5

FHO42861

HOSE - pressure, Serial Range: pump-valve

1шт.

6

222-834

NUT - 3/8" flared

8шт.

7

FH872192

TUBE - pressure and return, pump to valve (Incl. 2 ref. 6)

2шт.

8

222-810

HYD CONNECTOR,5/8"-18, 45 Degree Fl x 3/8" NPT

UNION - 3/8" x 3/8" half

1шт.

9

FH445163

PEDAL - foot

2шт.

10

FHO63867

PIN - clevis

2шт.

11

FH742270

VALVE - hydraulic (Cessna #31502-AV)

1шт.

12

222-886

TEE - 3/8" x 3/8" brass

1шт.

13

FH293241

X

TUBE - header cylinder, L.H. (Includes 2 ref. 6)

1шт.

14

FH146720

ARM - upper L.H., header lift

1шт.

15

FH763169

PIN - cylinder mounting (Replaces FH119990 when stocks are exhausted)

4шт.

FH119990

PIN - cylinder mounting (Replaced by FH763169 when stocks are exhausted)

4шт.

16

FH267062

CABLE - L.H., for 10 ft. reel

1шт.

FH267088

CABLE - L.H., for 12 ft. reel

1шт.

FH267112

CABLE - L.H., for 14 ft. reel

1шт.

FH267138

CABLE - L.H., for 16 ft. reel

1шт.

17

FH161778

PULLEY - reel cables

3шт.

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.C. hex., nut and L.W.

2шт.

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Nut and L.W. Hex, 3/8"-16 x 1 3/4", G5

1шт.

18

T25073

BUSHING

SPACER

3шт.

19

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

2шт.

20

FH266072

PIN - thimble

2шт.

95-10

WASHER,5/8"

- flat 5/8"

2шт.

21

FH241935

THIMBLE - cable

2шт.

22

FH158501

SPACER - 2 for lower arm and 4 for upper arm

6шт.

23

FH158519

SPACER - lower arm

2шт.

24

FH299206

ARM - lower, header lift

2шт.

25

221-413

ELBOW,90 Degree, 3/8"-18, NPT

- 3/8" - 90 degree malleable street

3шт.

26

FH229724

CLAMP - line

3шт.

27

FH304741

TUBE - reel lift cylinder (Includes 2 ref. 6)

1шт.

28

FHO42846

HOSE - reel cylinder (50")

1шт.

29

FH265967

PULLEY - reel cable (6" O.D.)

1шт.

13-823

BOLT - 1/2" x 1-3/4" N.C. hex., nut and L.W.

1шт.

30

O4361AB

SPACER - reel cable pulley

1шт.

31

FH266056

ADAPTER - end, reel hydraulic cylinder

1шт.

32

FH126755

CLAMP - reel hydraulic cylinder

1шт.

11-620

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G2

BOLT - 3/8" x 1-1/4" rhd. sq. nk., nut and L.W.

1шт.

33

FHO42911

CYLINDER - reel hydraulic (Cessna #40033-CF)

1шт.

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

- 5/8" x 3-1/2" N.C. hex., nut and L.W.

4шт.

34

FH266221

BUSHING - reel hydraulic cylinder

1шт.

35

221-1053

BUSHING

- 3/8" x 1/4" reducing

1шт.

36

FHO42556

CYLINDER - header lift (Cessna #40033-BG)

2шт.

37

FH146738

ARM - upper R.H., header lift

1шт.

38

FH125971

CLAMP - line

3шт.

39

FH304733

LINE

TUBE - R.H. header cylinder (Includes 2 ref. 6)

1шт.

40

FHO45260

CLAMP - 1/4" cable

4шт.

41

FH267070

CABLE - R.H., for 10 ft. reel

1шт.

FH267104

CABLE - R.H., for 12 ft. reel

1шт.

FH267120

CABLE - R.H., for 14 ft. reel

1шт.

FH267146

CABLE - R.H., for 16 ft. reel

1шт.

42

FH121723

CLAMP - line

3шт.

FH285957

LINE CLAMP

2шт.

43

FHO42192

HOSE - header cylinder

2шт.
