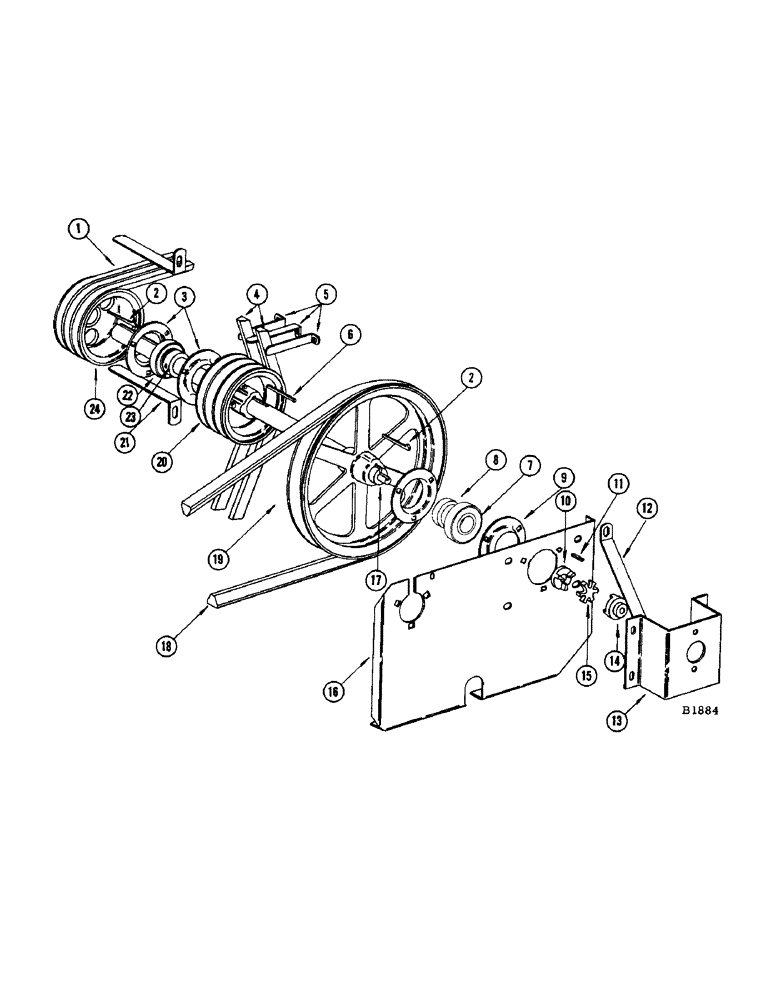

Запчасти Case IH 950 (056) - HEADER U-JOINT AND REVERSE DRIVE

1

FH267625

SET OF BELTS

SET OF 3 BELTS (Matched), Header universal joint drive

1шт.

2

FHO61739

KEY

- gib

2шт.

3

FH264036

FLANGE

2шт.

4

FHO56325

BELT

- wheel drive

2шт.

5

FH132647

GUIDE - belt

3шт.

6

FH156620

KEY

1шт.

7

F51085

BEARING

- reverse drive shaft

1шт.

8

F62226

COLLAR

1шт.

9

F62225

FLANGE

2шт.

10

FHO47456

COUPLING - hydrualic pump

1шт.

11

F62223

KEY

- ref. 10 and 14 couplings

2шт.

12

FH269282

BRACE - hydraulic pump

1шт.

13

FH268219

MOUNTING - hydraulic pump

1шт.

14

FHO85167

COUPLING

- hydrualic pump

1шт.

15

FHO85936

SPIDER ASSY.

SPIDER

1шт.

16

FH389213

BRACKET - support

1шт.

17

FH270728

SHAFT - reverse drive

1шт.

18

FHO57083

BELT

Reverse Drive, VG4D Engine

1шт.

FHO57513

V-BELT

BELT, Reverse Drive, A126 Engine

1шт.

19

FH236653

PULLEY - reverse drive

1шт.

20

F2430

PULLEY - vari-steering drive

1шт.

138-147

LOCK PIN,1/4" x 3 1/4", Slotted

ROLL PIN - 1/4" x 1-3/8"

1шт.

21

FH268953

GUIDE - belt

2шт.

22

K3315

BEARING ASSY

BEARING - reverse drive shaft

1шт.

23

F62226

COLLAR

1шт.

24

FH267914

SHEAVE - drives header universal joint shaft

1шт.
