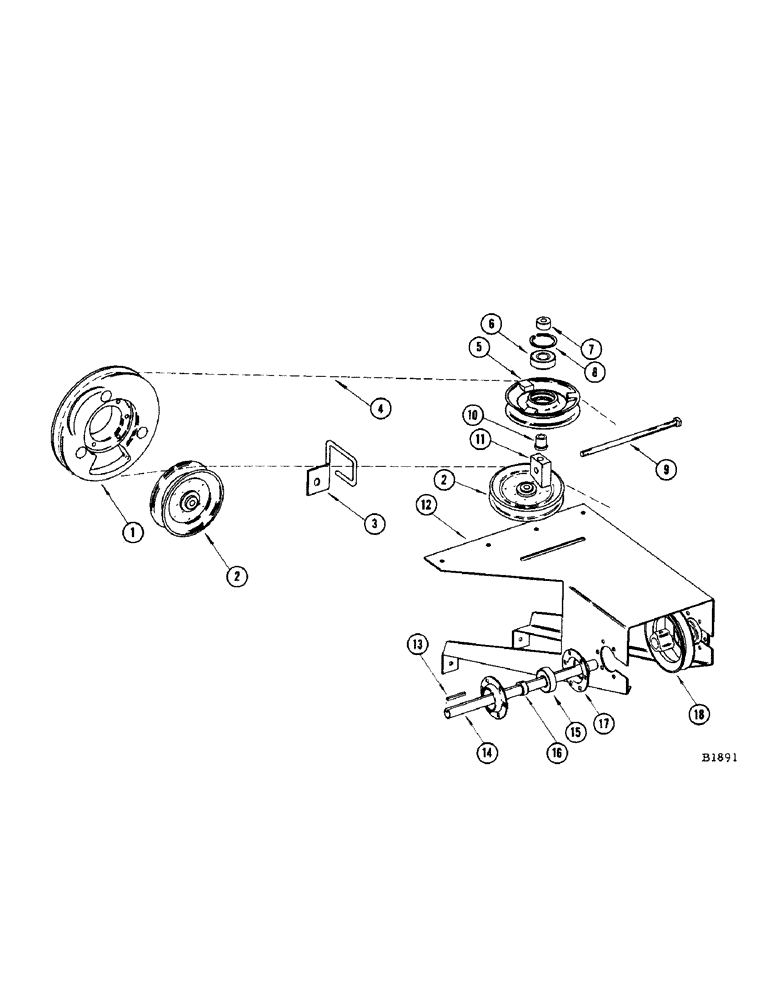

Запчасти Case IH 950 (056[1]) - HEADER DRIVE

1

FH374256

SHEAVE - Pitman drive

1шт.

2

FHO53538

PULLEY

- lower idle

2шт.

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Nut and L.W. Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

3

FH270371

GUIDE - belt

1шт.

4

FH855148

BELT,69.00" L

Header Drive 69.00" L

1шт.

5

FH266189

PULLEY - upper idler

1шт.

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5, Nut and L.W.

1шт.

6

FH710251

BEARING

1шт.

7

FH266254

SPACER

1шт.

8

FHO52035

RING, SNAP

SNAP RING

1шт.

9

FHO73270

DRAWBOLT

1шт.

95-8

WASHER,1/2"

flat 1/2"

1шт.

10

FH266247

SLEEVE - idler

1шт.

11

FH266239

DIVIDER - idler

1шт.

12

FH389379

SHIELD

1шт.

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Nut and L.W. Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex. and L.W.

6шт.

95-6

WASHER,3/8"

- flat 3/8"

2шт.

13

T25070

KEY

- ref. 18 pulley

1шт.

14

FH289595

JACKSHAFT - header

1шт.

15

401CBA

BEARING - jackshaft

2шт.

16

B18329

COLLAR ASSY.

COLLAR

1шт.

17

FH264036

FLANGE - bearing

4шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Nut and L.W. Hex, 3/8"-16 x 1", G5, Full Thd

10шт.

18

F2426

PULLEY

1шт.
