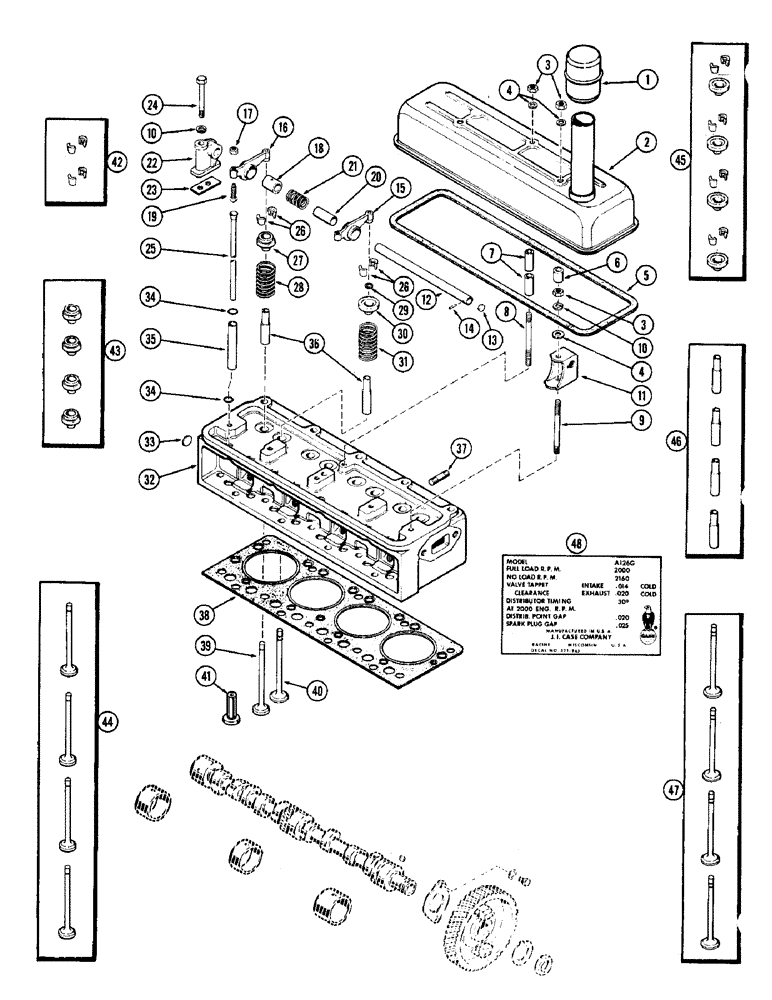

Запчасти Case IH 950 (006) - CYLINDER HEAD ASSEMBLY

1

A36608

CAP

ASSY. - oil breather & filler

1шт.

2

A36186

COVER - valve and rocker arm

1шт.

3

25-106

NUT,3/8"-16, G5

- hex., 3/8" N.C.

5шт.

4

A29277

WASHER

- plain, valve cover & rocker arm

5шт.

5

A30009

GASKET

- valve cover

1шт.

6

A30065

SPACER

- valve cover (17/32" long)

2шт.

7

A29999

SPACER

- valve cover (19/32" long)

2шт.

8

G49504

STUD

- valve, Serial Range: cover-head

1шт.

9

G49505

STUD

- brkt. &, Serial Range: cover-head

2шт.

10

92-6

LOCK WASHER,3/8"

5шт.

11

G46250

BRACKET

- rocker arm shaft

4шт.

12

A37197

SHAFT

- rocker arm (Drilled for 1/8" pin) (1st used eng. ser. no. 2612175)

2шт.

12

A29444

SHAFT

- rocker arm (Drilled for #00 pin) (Used prior to eng. ser. no. 2612175) (Order 1-A37197 & 1-138-57)

2шт.

13

A26796

PLUG

- end, rocker arm shaft

2шт.

14

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, , Taper, rocker arm shaft (used w/A37197 shaft) 1/8" x 3/4", Slotted

2шт.

14

139-205

PIN - taper, rocker arm shaft (#00 x 3/4") (Used w/A29444 shaft) 2/0 x 3/4", Tapered

2шт.

15

G45234

ARM

ASSY - rocker R.H.

4шт.

16

G45235

ARM

ASSY - rocker L.H.

4шт.

17

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex. jam., 5/16 N.F.

1шт.

18

A31055

BUSHING

- rocker arm, int. & exh.

1шт.

19

A31056

ADJUSTMENT SCREW,5/16" - 24 x 1 11/32"

SCREW - adjusting, arm

1шт.

20

A30008

SPACER

- rocker arm shaft

2шт.

21

A30007

SPRING

- rocker arm shaft

4шт.

22

G2107

BRACKET

- center, rocker arm shaft

1шт.

23

A37053

ELBOW

SHIM - rocker arm bracket

5шт.

24

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex., hd., 3/8" x 2-3/4" N.C.

3шт.

25

G11086

ROD

- push, valve rocker arm

8шт.

26

NSS

NOT SOLD SEPARAT

LOCK - valve spring retainer (Order ref. #42)

16шт.

27

NSS

NOT SOLD SEPARAT

ROTO CAP - ehaust valve (Order ref, #43)

4шт.

28

G10004

SPRING

- exhaust valve

4шт.

29

G46851

SEAL

- intake valve stem

4шт.

30

NSS

NOT SOLD SEPARAT

RETAINER - intake valve spring (Order ref. #45)

4шт.

31

A30025

SPRING

- intake valve

4шт.

32

G11132

CYLINDER HEAD

ASSY. - cylinder

1шт.

33

A30079

X

PLUG - rear (1-1/8" dia.)

1шт.

34

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

"O" RING - tube sealing

16шт.

35

G11361

TUBE - push rod

8шт.

36

NSS

NOT SOLD SEPARAT

GUIDE - int. & exh. valve stem (Order ref. #46)

8шт.

37

A29431

STUD

- manifold

7шт.

38

G10672

CYLINDER HEAD GASKET

- cylinder head

1шт.

39

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order ref. #44)

4шт.

40

NSS

NOT SOLD SEPARAT

VALVE - intake (Order ref. #47)

4шт.

41

A30006

TAPPET

- valve, int. & exh.

8шт.

42

G11929

LOCK

KIT - int. & exh. valve spring (Set of 4)

4шт.

43

G11928

CAP

ROTO CAP KIT - exhaust valve (Set of 4)

1шт.

44

A30348

KIT

VALVE KIT - exhaust (Set of 4)

1шт.

45

G11927

RETAINER

KIT - int. valve spring (Set of 4 retainers and 8 locks)

1шт.

46

A30270

GUIDE

KIT - int. & exh. valve stem (Set of 4)

2шт.

47

A40806

VALVE KIT - intake (Set of 4)

1шт.

48

321-965

DECAL - engine data

1шт.
