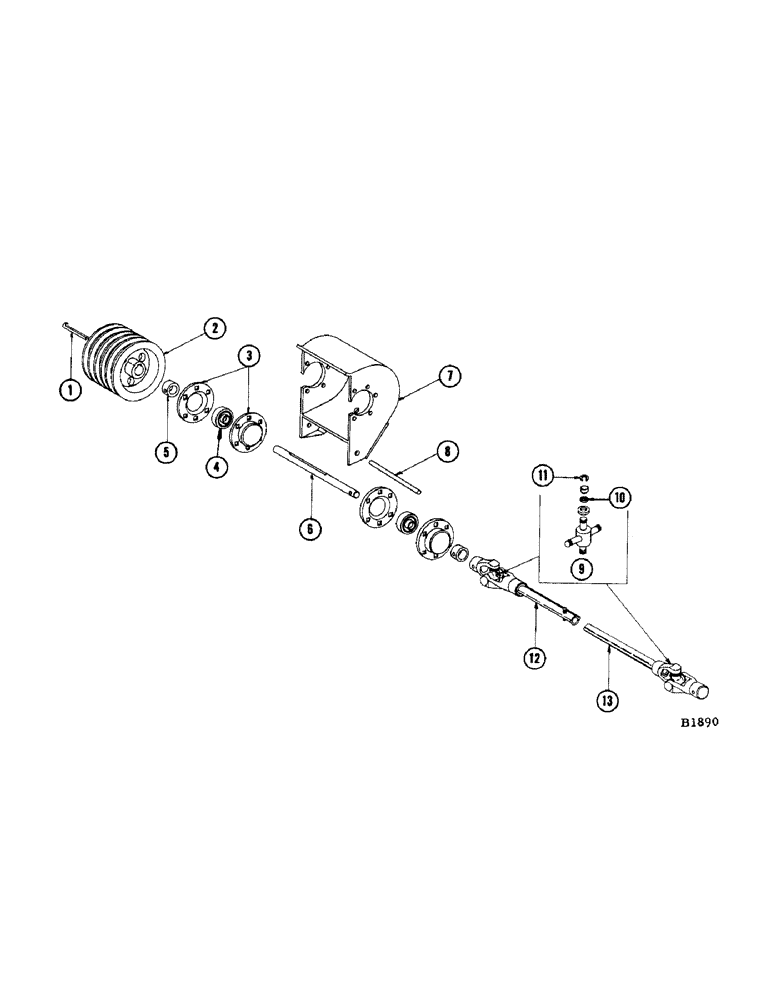

Запчасти Case IH 950 (054[1]) - HEADER DRIVE UNIVERSAL JOINT SHAFT

1

FHO61739

KEY

- gib

1шт.

2

FH267914

SHEAVE - drives header universal joint shaft

1шт.

3

FH264036

FLANGE

4шт.

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Nut and L.W. Hex, 3/8"-16 x 3/4", G5, Full Thd

10шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Nut and L.W. Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

4

K3315

BEARING ASSY

BEARING

2шт.

5

B18329

COLLAR ASSY.

COLLAR

1шт.

6

FH267856

SHAFT - drives header universal joint

1шт.

7

FH267864

SUPPORT - shaft bearing

1шт.

8

FH267823

SPACER - support

1шт.

13-8120

BOLT,Hex, 1/2" - 13 x 7-1/2", Gr 5

- 1/2" x 7-1/2" N.C. hex., nut and L.W.

1шт.

9

B13275

KIT

- repair, universal joint

2шт.

10

B13276

OIL SEAL - center cross

4шт.

11

B13277

SNAP RING - center cross

4шт.

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease 1/8" - 67-1/2 degrees

4шт.

12

FH751164

UNIVERSAL JOINT - square shaft

1шт.

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

Nut and L.W. Hex, 3/8"-16 x 2 1/4", G5

1шт.

13

FH751156

UNIVERSAL JOINT - square tube

1шт.

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

Nut and L.W. Hex, 3/8"-16 x 2 1/4", G5

1шт.

FH320481

SHIELD - PTO (Not shown)

2шт.
