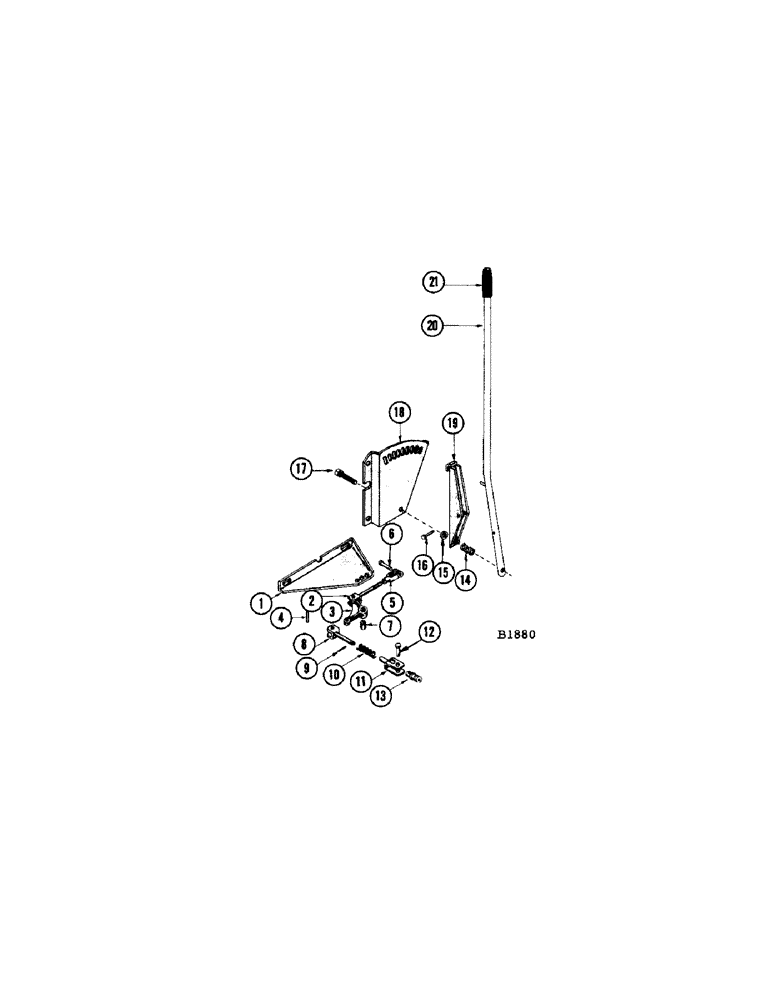

Запчасти Case IH 950 (052) - VARIABLE DRIVE CONTROL LEVER

1

FH144485

MOUNTING - pivot

1шт.

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- 1/2" x 2-1/4" N.C. hex.

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

1шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga.) 1/2"

1шт.

2

FH134767

ROD - pivot

1шт.

3

FH133785

PIVOT

1шт.

4

138-170

LOCK PIN,3/8" x 1", Slotted

Pin, 3/8" x 1", Slotted

2шт.

5

O381SC

CLEVIS - adjustable

1шт.

6

FHO63685

PIN - clevis

1шт.

132-9

COTTER PIN

PIN - cotter, 1/16" x 1"

1шт.

7

FH159954

SPACER - (VG4D engine)

1шт.

D25022

WASHER

SPACER - (A126 engine)

1шт.

8

FH135152

CLEVIS - variable drive pivot

1шт.

9

138-137

LOCK PIN,1/4" x 1 3/8", Slotted

PIN, 1/4" x 1 3/8", Slotted

1шт.

10

FHO58164

SPRING

1шт.

11

FH135186

CLEVIS - spindle

1шт.

12

FHO63628

PIN - clevis

1шт.

13

FHO45138

SPINDLE - bearing

1шт.

14

FHO58438

SPRING

1шт.

15

FH220277

SPACER

1шт.

16

FHO63784

PIN - clevis

1шт.

17

113-419

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5, Full Thd

Hex, 1/2"-13 x 2 1/2", G5, Full Thd

1шт.

92-8

LOCK WASHER,1/2"

1шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga.) 1/2"

1шт.

18

FH220269

QUADRANT

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

3шт.

92-6

LOCK WASHER,3/8"

3шт.

95-6

WASHER,3/8"

- 1" x 7/16" x 14 ga.

2шт.

19

FH220236

PIVOT - lever

1шт.

20

FH315465

LEVER

1шт.

21

31400

CLAMP

GRIP

1шт.
