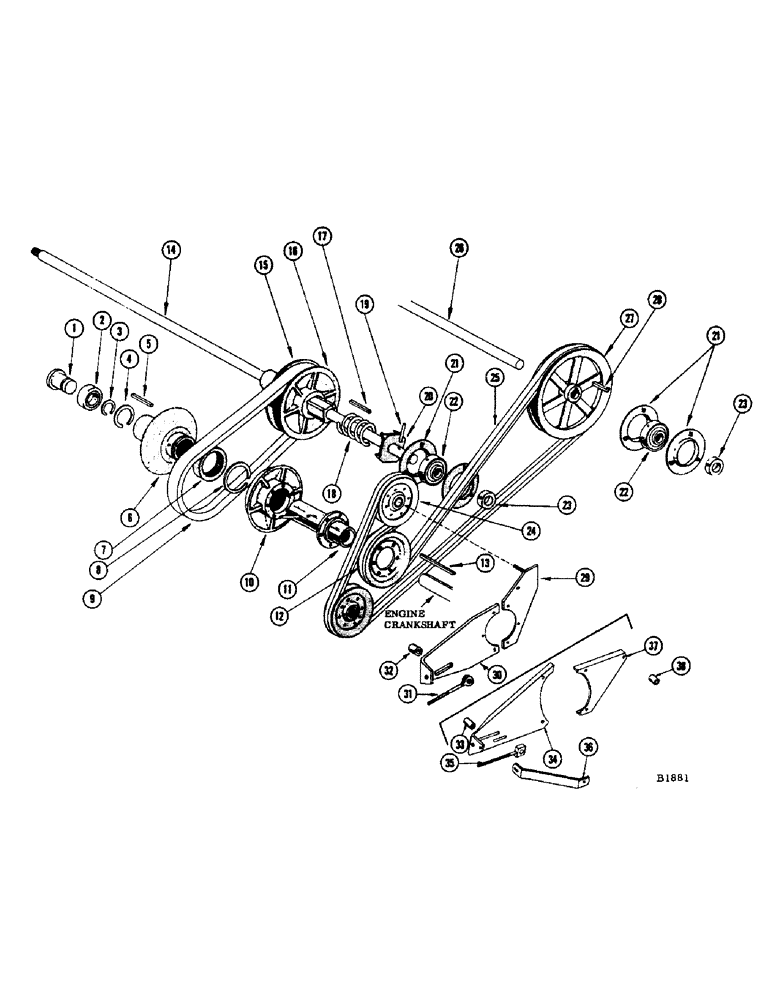

Запчасти Case IH 950 (048) - VARIABLE DRIVE CONTROL, FORWARD AND REVERSE DRIVE

1

FHO45138

SPINDLE - variable drive

1шт.

2

F62200

BEARING

- spindle

1шт.

3

FHO52019

SNAP RING

1шт.

4

FHO52035

RING, SNAP

SNAP RING

1шт.

5

FH144345

KEY

- (VG4D engine)

1шт.

FHO61689

KEY - (A126 engine)

1шт.

6

F2448

SHEAVE - floating half

1шт.

7

FHO50229

BEARING, ROLLER

BEARING - engine crankshaft

1шт.

8

FHO52027

RING, SNAP

SNAP RING

1шт.

9

FHO55970

V-BELT

Variable Drive

1шт.

10

F2447

SHEAVE - stationary half

1шт.

11

FH144238

HUB - (VG4D engine)

1шт.

FH374645

HUB - (A126 engine)

1шт.

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16" x 1-1/4" N.C. hex. and L.W.

6шт.

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, (FH144238 hub only) 1/4" x 2", Slotted

1шт.

12

F2451

PULLEY - reverse drive

1шт.

13

FH157131

KEY - (VG4D engine crankshaft)

1шт.

FHO61861

KEY - (A126 engine crankshaft)

1шт.

14

FH135111

SHAFT - forward drive FORWARD AND REVERSE DRIVE

1шт.

15

F2449

SHEAVE - stationary half FORWARD AND REVERSE DRIVE

1шт.

138-143

LOCK PIN,1/4" x 2 1/4", Slotted

PIN, , Forward and Reverse drive 1/4" x 2 1/4", Slotted

1шт.

16

F2450

SHEAVE - floating half FORWARD AND REVERSE DRIVE

1шт.

138-143

LOCK PIN,1/4" x 2 1/4", Slotted

PIN, , Forward and Reverse drive 1/4" x 2 1/4", Slotted

1шт.

17

FH156695

KEY FORWARD AND REVERSE DRIVE

1шт.

18

FHO58453

SPRING

- forward drive shaft FORWARD AND REVERSE DRIVE

1шт.

19

138-143

LOCK PIN,1/4" x 2 1/4", Slotted

PIN, , Spring retainer, Forward and Reverse drive 1/4" x 2 1/4", Slotted

1шт.

20

FH129460

PLATE

- spring retainer FORWARD AND REVERSE DRIVE

1шт.

21

F62225

FLANGE

- bearing FORWARD AND REVERSE DRIVE

4шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, , Nut and L.W., Forward and reverse drive Short NK, 3/8"-16 x 1", G2

6шт.

22

F51085

BEARING

- forward and reverse shafts FORWARD AND REVERSE DRIVE

2шт.

23

F62226

COLLAR

FORWARD AND REVERSE DRIVE

1шт.

24

FHO53538

PULLEY

- idler, reverse belt FORWARD AND REVERSE DRIVE

2шт.

25

FHO57513

V-BELT

BELT, Reverse Drive, A126 Engine, Forward and Reverse Drive

1шт.

FHO57083

BELT

Reverse Drive, VG4D Engine, Forward and Reverse Drive

1шт.

26

FH270728

SHAFT - reverse FORWARD AND REVERSE DRIVE

1шт.

27

FH236653

PULLEY - reverse drive FORWARD AND REVERSE DRIVE

1шт.

28

FHO61739

KEY

- gib FORWARD AND REVERSE DRIVE

1шт.

29

FH268805

BRACKET - front, reverse idler (VG4D engine) FORWARD AND REVERSE DRIVE

1шт.

30

FH144527

BRACKET - rear, reverse idler (VG4D engine) FORWARD AND REVERSE DRIVE

1шт.

31

FH113985

DRAWBOLT - rear idler pulley (VG4D engine) FORWARD AND REVERSE DRIVE

1шт.

32

FH159632

SPACER - (VG4D engine) FORWARD AND REVERSE DRIVE

2шт.

33

FH374694

SPACER - (A126 engine) FORWARD AND REVERSE DRIVE

4шт.

34

FH315507

BRACKET - rear, reverse idler (A126 engine) FORWARD AND REVERSE DRIVE

1шт.

35

FH247064

DRAWBOLT - reverse idler pulley (A126 engine) FORWARD AND REVERSE DRIVE

1шт.

36

FH374678

BRACE - reverse idler bracket (A126 engine) FORWARD AND REVERSE DRIVE

1шт.

37

FH374652

BRACKET - front, reverse idler (A126 engine) FORWARD AND REVERSE DRIVE

1шт.

38

O162CU

SPACER - (A126 engine) FORWARD AND REVERSE DRIVE

2шт.
