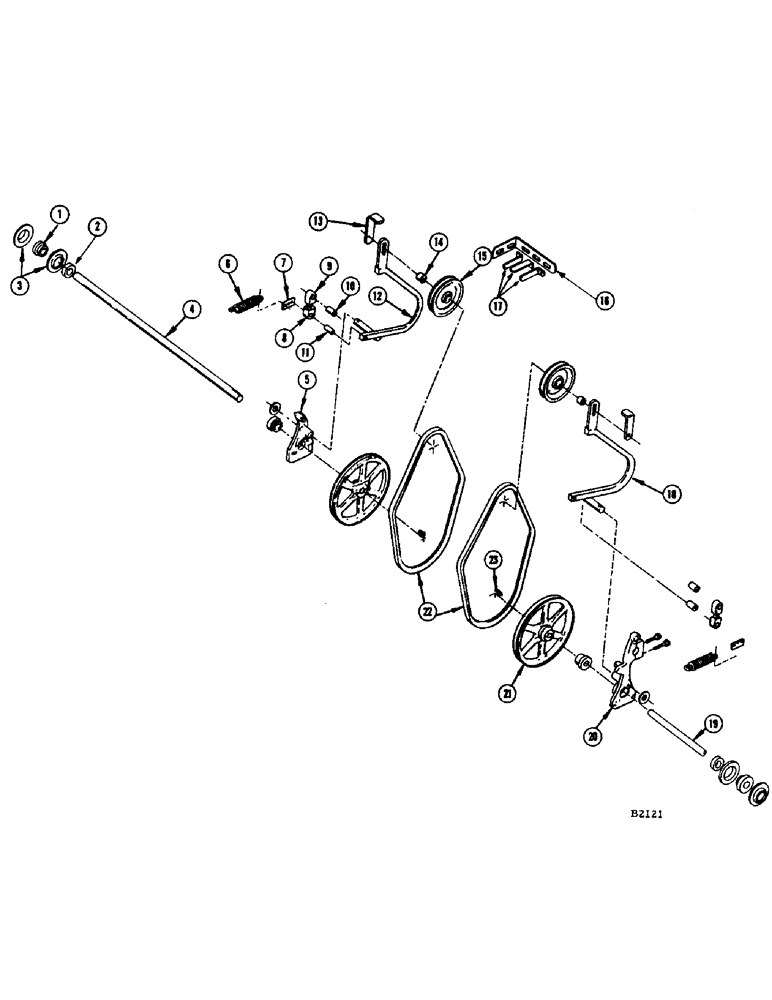

Запчасти Case IH 950 (046) - SHIFTER

1

F51085

BEARING

- wheel drive shaft

4шт.

2

F62226

COLLAR

1шт.

3

F62225

FLANGE

- bearing

4шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, , Nut and L.W. Short NK, 3/8"-16 x 1", G2

6шт.

4

FH116145

SHAFT - R.H., wheel drive

1шт.

5

FH246249

BRACKET - right shifter pulley mounting

1шт.

113-232

BOLT,Hex, 3/8" - 16 x 2", Gr 5, Full Thd

and nut Hex, 3/8"-16 x 2", G5, Full Thd

1шт.

6

FHO58123

SPRING - shifter tension

2шт.

7

FH118307

BRACKET - shifter spring attaching

2шт.

8

FH117036

LINK - adjustable shifter

1шт.

9

FH117085

LINK - end

2шт.

219-6

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease 1/4" - 28 str.

2шт.

14-644

SCREW,Hex, 3/8" - 24 x 2 3/4", Gr 5

BOLT - 3/8" x 3" N.F. hex., nut and L.W.

2шт.

95-6

WASHER,3/8"

- flat 3/8"

2шт.

10

FHO45021

SPACER - (1-3/16")

2шт.

11

FHO45039

SPACER - (1-9/16")

2шт.

12

FH117176

ARM - right shifter (Repl. by 1-FH312140 & 1-FH374140)

1шт.

13

FH121749

GUIDE - upper, shifter belt

2шт.

14

FH159624

SPACER - idler

2шт.

15

FHO53538

PULLEY

- idler

2шт.

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- 1/2" x 3" N.C. hex., nut and L.W.

2шт.

95-8

WASHER,1/2"

flat 1/2"

2шт.

16

FH122754

BRACKET - rear, wheel drive belt guide

1шт.

17

FH132647

GUIDE - wheel drive belts

6шт.

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, , Nut and L.W. Short NK, 5/16"-18 x 1", G2

6шт.

18

FH117127

ARM - left shifter (Repl. by 1-FH312140 & 1-FH350853)

1шт.

19

FH116137

SHAFT - L.H. wheel drive

1шт.

20

FH246215

BRACKET - left shifter pulley mounting

1шт.

113-232

BOLT,Hex, 3/8" - 16 x 2", Gr 5, Full Thd

and nut and L.W. Hex, 3/8"-16 x 2", G5, Full Thd

1шт.

21

FH222653

PULLEY - driven, right and left hand wheel shaft

2шт.

83-55

SET SCREW,Hex Soc, 5/16"-18 x 5/16", Cup Pt

2шт.

22

FHO56325

BELT

"V" BELT - wheel drive and shifter

2шт.

23

T25070

KEY

-, Serial Range: pulleys-shaft

2шт.
