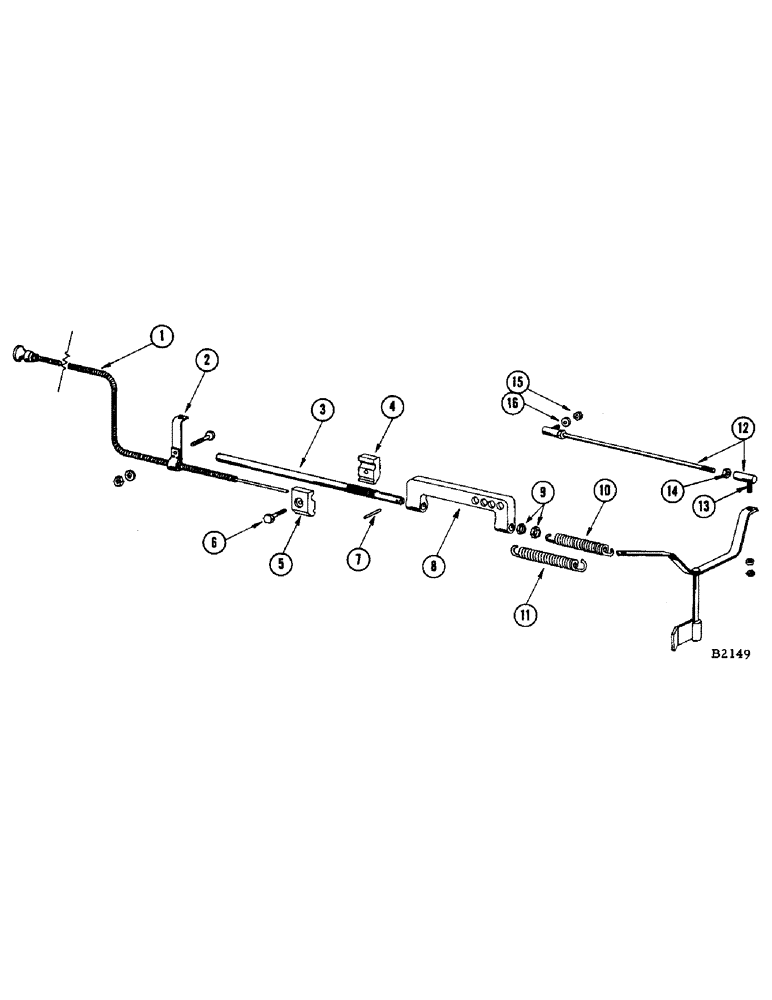

Запчасти Case IH 950 (040) - THROTTLE CONTROL LINKAGE, A126 ENGINE

1

FH720599

CONTROL

- throttle

1шт.

2

FH293563

BRACKET - cable housing, throttle

1шт.

3

A36369

ROD

- governor control

1шт.

4

FH294108

CLAMP - throttle control

1шт.

5

FH294082

CLAMP - throttle control

1шт.

6

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

7

138-51

LOCK PIN,1/8" x 3/8", Slotted

PIN, 1/8" x 3/8", Slotted

1шт.

8

G2133

GUIDE

- governor control rod

1шт.

9

131-412

PAL NUT - 7/16"

2шт.

10

G48511

SPRING

- outer, governor rod

1шт.

11

G48514

SPRING

- inner, governor rod

1шт.

12

G45222

ROD

- throttle

1шт.

13

A10329

BALL JOINT,1/4" - 28 x 1"

1шт.

14

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

1шт.

15

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

2шт.

16

92-44

LOCKWASHER - 1/4"

2шт.
