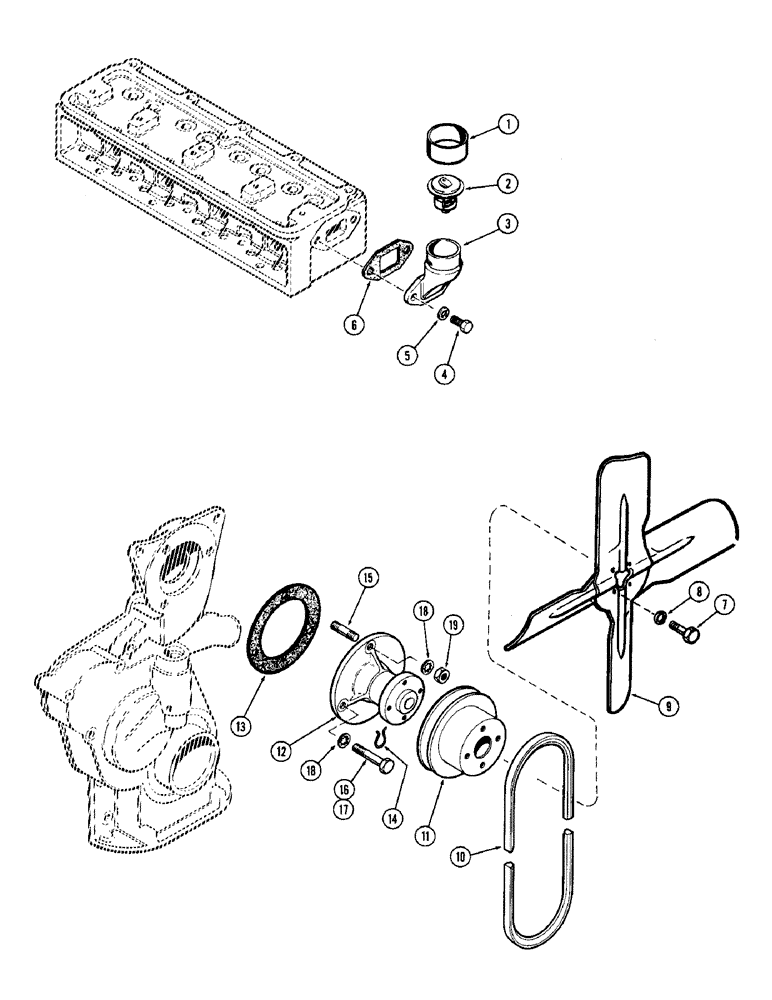

Запчасти Case IH 950 (004) - WATER PUMP AND FAN

1

G49625

SUPPORT

- hose clamp & thermostat

1шт.

2

G11065

CASE

THERMOSTAT - water temp (177 degrees to 182 degrees F.)

1шт.

3

G11965

ELBOW

- thermostat & water hose

1шт.

4

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

5

92-6

LOCK WASHER,3/8"

2шт.

6

A30003

GASKET

- water elbow mounting

1шт.

7

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

8

92-5

LOCK WASHER,5/16"

4шт.

9

G45243

FAN

- radiator

1шт.

10

G46238

BELT,0.55" W x 17.78" L

Fan Drive 0.55" W x 17.78" L

1шт.

11

G11339

PULLEY

- fan & water pump drive

1шт.

12

G11956

WATER PUMP

PUMP ASSY. - water

1шт.

13

G46875

GASKET

- water pump mounting

1шт.

14

A30067

RING

- retaining

1шт.

15

A29433

STUD

- pump mounting (3/8 x 1")

1шт.

16

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

17

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex., hed., 3/8" x 2-3/4" N.C.

1шт.

18

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

3шт.

19

25-106

NUT,3/8"-16, G5

- hex., 3/8" N.C.

3шт.
