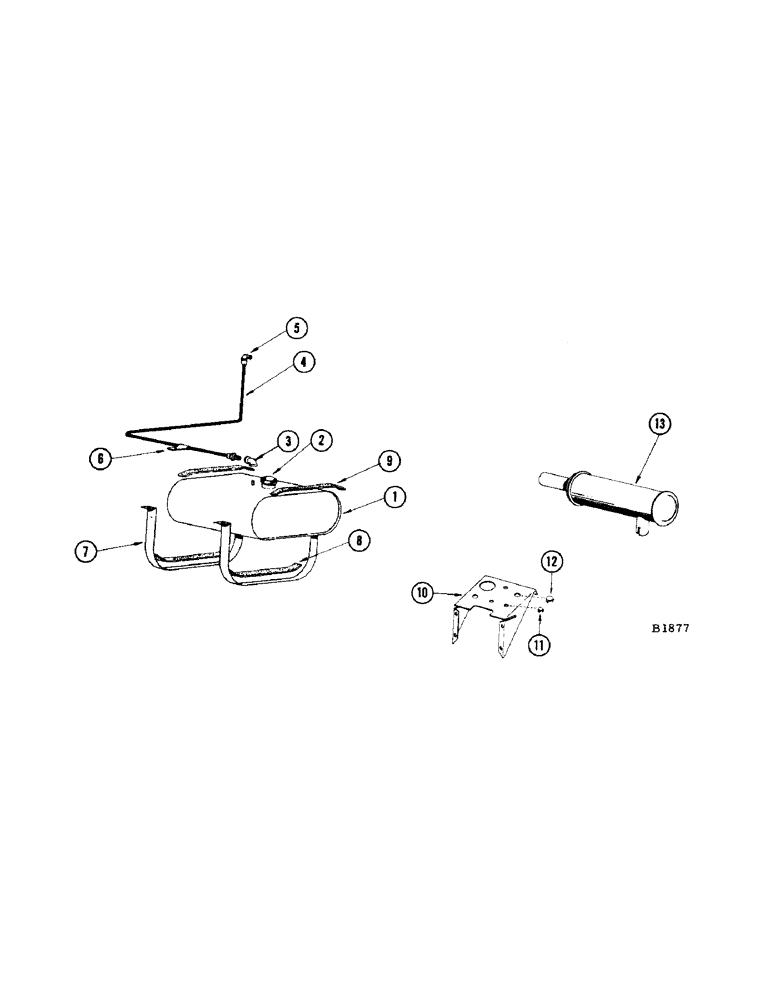

Запчасти Case IH 950 (038[3]) - FUEL TANK VG4D ENGINE, MUFFLER & INSTRUMENT PANEL, VG4D ENGINE

1

FH750273

TANK - fuel

1шт.

2

FHO45088

CAP

1шт.

3

FHO46011

ELBOW - 1/4" O.D. x 1/8" P.T.

1шт.

4

F35265

KIT

LINE - fuel

1шт.

5

222-13

FITTING,1/2"-20 Inv Fl x 1/8" NPT Fem

UNION - 1/4" O.D. x 1/8" P.T. half union

1шт.

6

FH121723

CLAMP - fuel line

1шт.

7

FH374546

STRAP - fuel tank

2шт.

8

FHO45856

LINER - bottom

2шт.

9

FHO44255

LINER - top

2шт.

10

PANEL - instrument (Instrument panel not furnished by J.I. Case Co. Order direct from Wisconsin Engine Corporation, Milwaukee, Wisconsin. VG4D ENGINE

1шт.

F36693

SWITCH

- ignition (#8308701 and after) VG4D ENGINE

1шт.

D36822

KEY

- ignition switch (Set of 2) VG4D ENGINE

1шт.

FH720771

CHOKE VG4D ENGINE

1шт.

11

FH720235

BUTTON - snap in (Light switch hole) VG4D ENGINE

1шт.

12

FH720227

BUTTON - snap in (Fuse holder hole) VG4D ENGINE

1шт.

13

FHO41236

MUFFLER

VG4D ENGINE

1шт.
