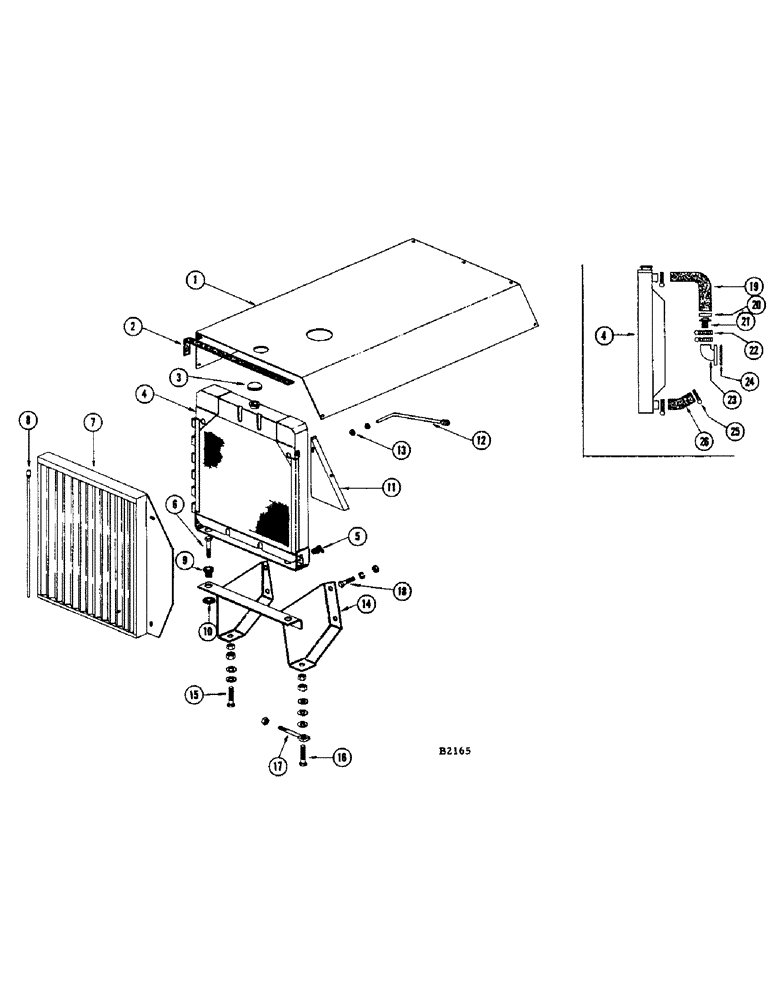

Запчасти Case IH 950 (034) - RADIATOR AND HOOD, A126 ENGINE

1

FH374744

HOOD

1шт.

2

FHO44586

STRIP - felt

1шт.

3

FH720557

CAP - radiator

1шт.

4

FH720433

RADIATOR

1шт.

5

217-103

COCK, DRAIN

FITTING - drain cock

1шт.

6

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8" x 2-1/2" N.C. hex., nut, L.W. and fl. wshr.

2шт.

7

FH293217

SCREEN - radiator

1шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

L.W. and fl. wshr. Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

8

FH292839

PIN - hinge, radiator screen

1шт.

9

FHO27680

MOUNTING - radiator

2шт.

10

FH293985

WASHER - mounting

4шт.

11

FH371617

FILLER

1шт.

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

and L.W. Hex, 5/16"-18 x 1/2", G5, Full Thd

2шт.

95-5

WASHER,3/8" x 7/8" x .083"

- 5/16" flat

4шт.

12

FH291583

BRACE - radiator

1шт.

13

25-148

JAM NUT,Jam, 1/2"-13, G5

- 1/2" NC hex jam

2шт.

14

FH339564

SUPPORT - engine mounting

1шт.

15

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

16

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

4шт.

95-8

WASHER,1/2"

flat 1/2"

5шт.

17

FH247254

BOLT - draw, adjustment (A126 engine)

1шт.

FH113985

BOLT - draw, adjustment (VG4D engine)

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

1шт.

18

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- 3/8" x 2" N.C. hex., nut and L.W.

4шт.

19

FH720862

HOSE

- upper, radiator

1шт.

20

G49625

SUPPORT

SLEEVE - thermostat

1шт.

21

G11065

CASE

THERMOSTAT

1шт.

22

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - radiator hose

3шт.

23

G11965

ELBOW

- water outlet, Serial Range: head-radiator

1шт.

221-3

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - 3/8" sq. hd. pipe

1шт.

24

A30003

GASKET

- outlet elbow

1шт.

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

and L.W. Hex, 3/8"-16 x 1 1/8", G5, Full Thd

2шт.

25

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

26

FH720482

HOSE - lower, radiator

1шт.
