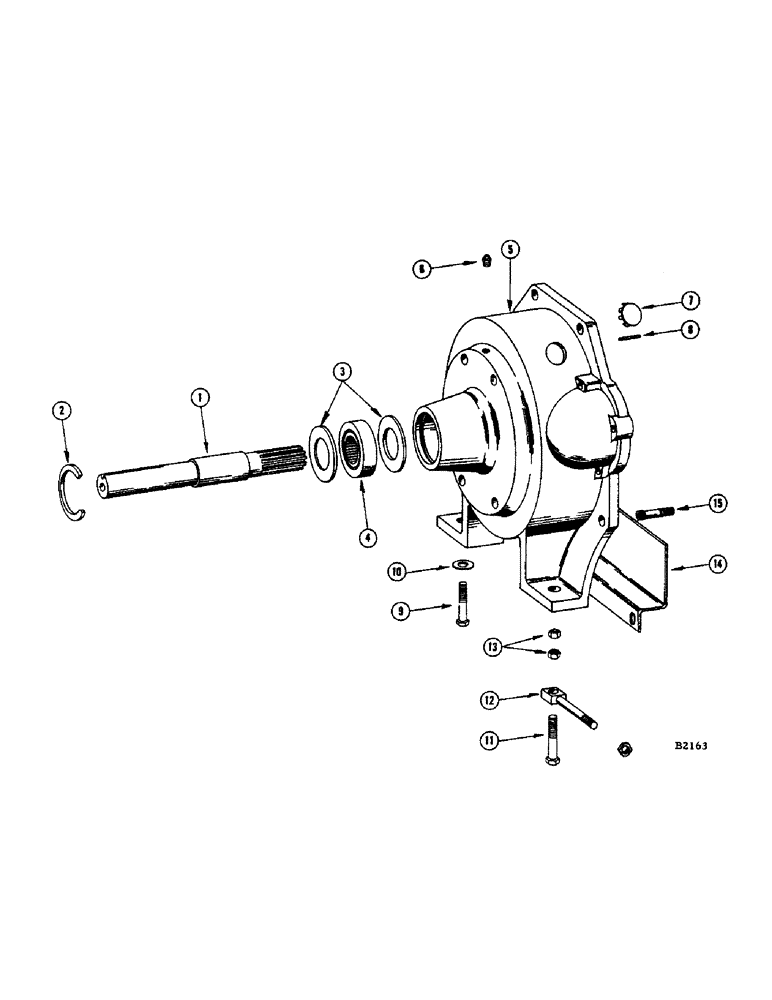

Запчасти Case IH 950 (032) - PTO HOUSING, A126 ENGINE

1

FH291393

SHAFT - engine output

1шт.

2

FH740134

SNAP RING

1шт.

3

FH751354

WASHER

2шт.

4

FH710525

BEARING

1шт.

5

FH293522

HOUSING - output

1шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

7

G10612

COVER

- timing hole

1шт.

8

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

9

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

1шт.

10

95-10

WASHER,5/8"

- flat 5/8"

1шт.

11

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

12

FH247254

BOLT - draw, adjustment (A126 engine)

1шт.

FH113985

BOLT - draw, adjustment (VG4D engine)

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

1шт.

13

25-1010

NUT,5/8"-11, G5

4шт.

14

FH992961

COVER - flywheel

1шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

92-5

LOCK WASHER,5/16"

2шт.

15

61-1044

BOLT - 5/8" x 3/4" N.C. socket hd.

2шт.
